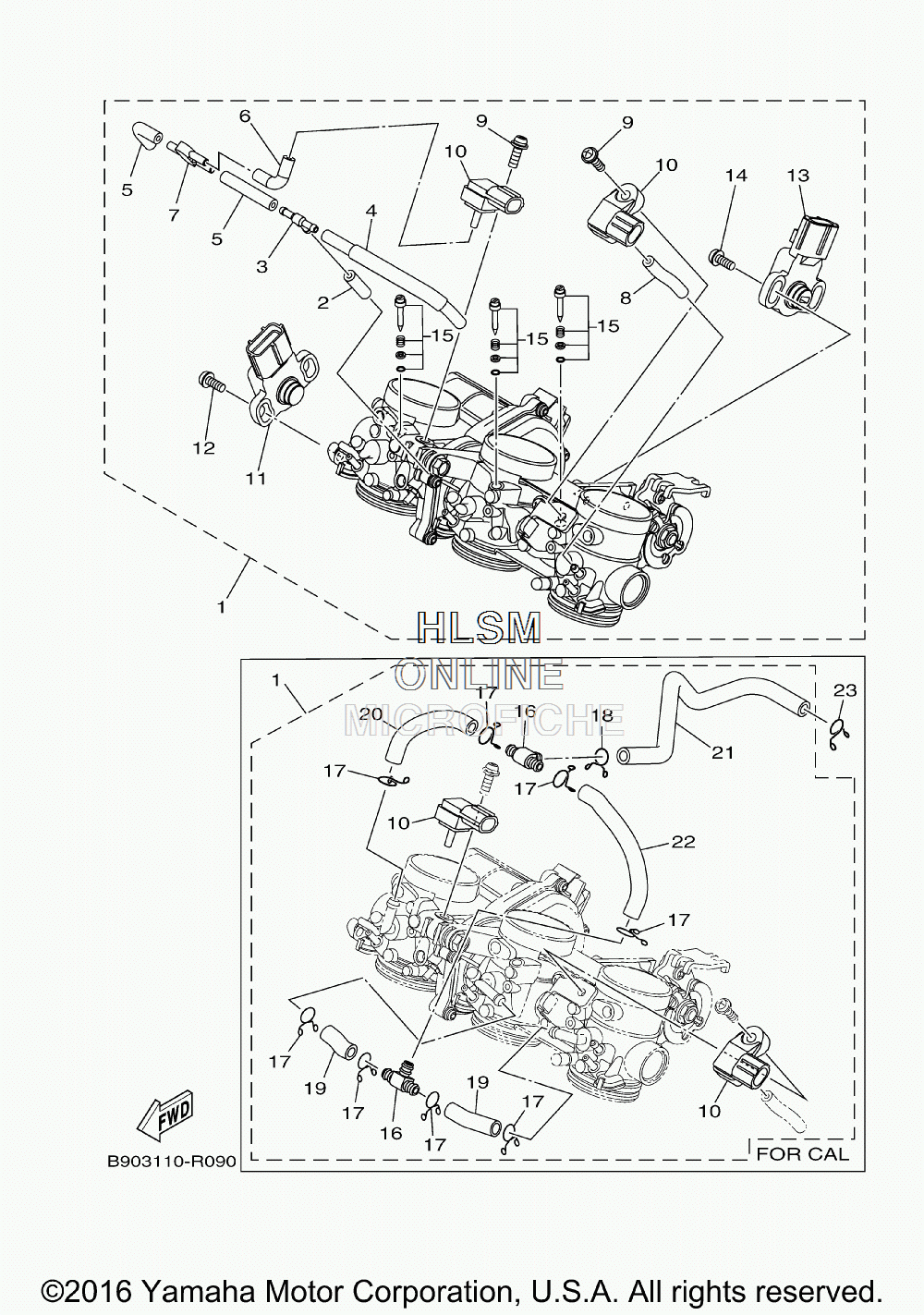

INTAKE для Yamaha XSR900GY 60TH ANNIVERSARY [XSR900GY] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
1B90-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
21RC-13544-00-00 ...HOSE, VACUUM SENSING 2...HOSE, VACUUM SENSING 2
-
368V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
41RC-13542-00-00 ...HOSE, VACUUM SENSING 1...HOSE, VACUUM SENSING 1
-
58FP-14349-20-00 ...PIPE...PIPE
-
68FP-14349-00-00 ...PIPE...PIPE
-
73XV-14251-00-00 ...NIPPLE...NIPPLE
-
88FP-14349-30-00 ...PIPE...PIPE
-
92C0-14216-00-00 ...SCREW...SCREW
-
102C0-82380-00-00 ...SENSOR, PRESSURE (EXCEPT CALIF)...SENSOR, PRESSURE (EXCEPT CALIF)
-
101WS-82380-00-00 ...SENSOR, PRESSURE (CALIF ONLY)...SENSOR, PRESSURE (CALIF ONLY)
-
1113S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
128CC-14216-10-00 ...SCREW...SCREW
-
131MC-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
145FL-14216-00-00 ...SCREW...SCREW
-
152C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
1690413-06031-00 ...WAY 3 (CALIF ONLY)...WAY 3 (CALIF ONLY)
-
1790467-100A1-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
1890467-09103-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
1914B-14465-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
201RC-14466-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
21B90-1443J-10-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
221RC-1444J-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
2390467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
