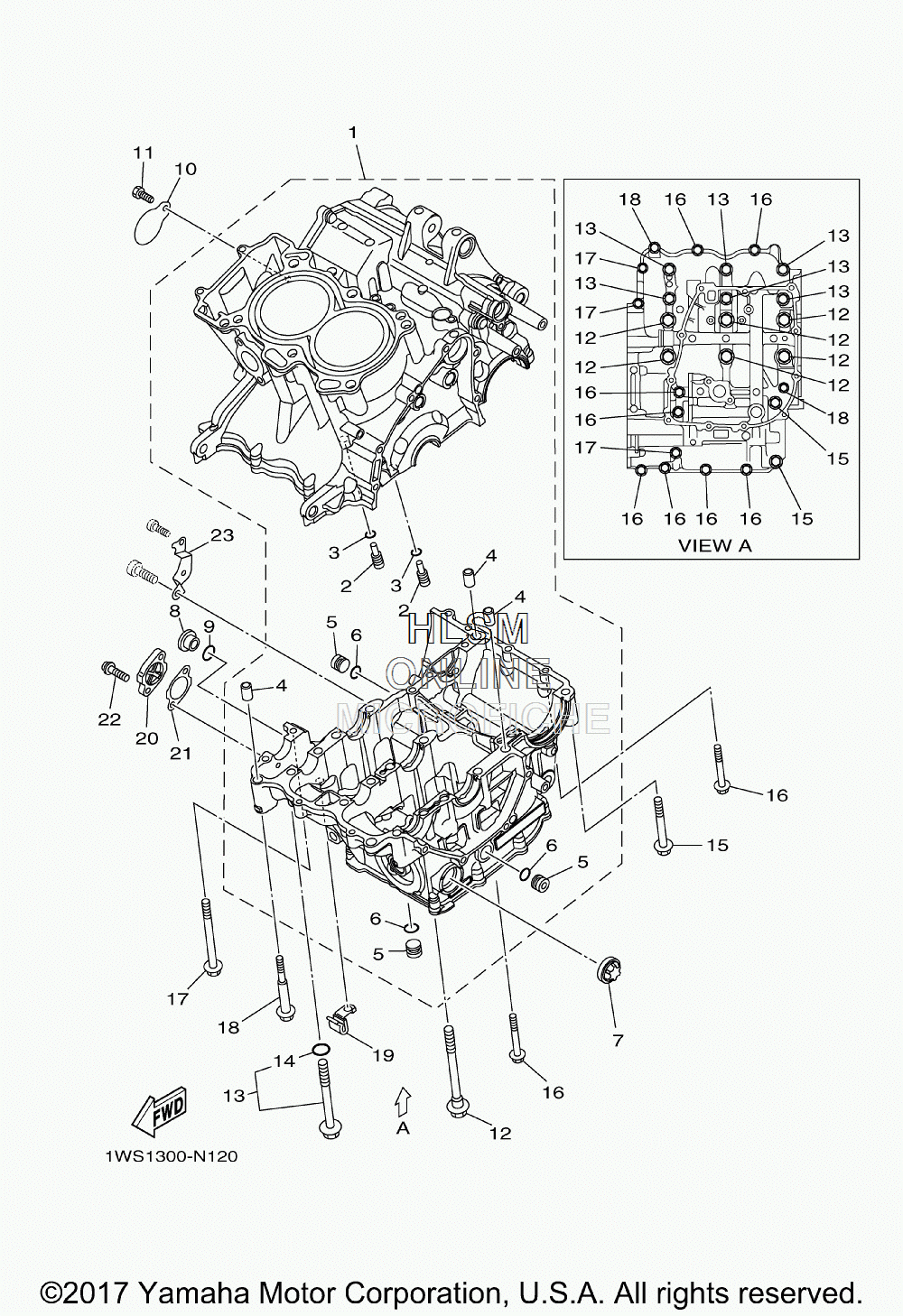

CRANKCASE для Yamaha FZ07 - 2017 года выпуска
-
№АртикулНазвание
-
11WS-15100-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
25EB-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
393210-04092-00 ...O-RING...O-RING
-
499530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
590338-16262-00 ...PLUG...PLUG
-
693210-12790-00 ...O-RING...O-RING
-
72H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
836Y-15189-00-00 PLUGPLUG
-
993210-16325-00 O-RINGO-RING
-
101WS-15189-00-00 PLUGPLUG
-
1190101-06043-00 BOLTBOLT
-
1290119-09014-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
131WS-15156-00-00 BOLT, CRANKCASE JOURNALBOLT, CRANKCASE JOURNAL
-
1493210-07540-00 ...O-RING...O-RING
-
1595812-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1695812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1795812-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1890109-06100-00 BOLTBOLT
-
1990462-10064-00 CLAMPCLAMP
-
201WS-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
211WS-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
2290110-06395-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
231WS-15128-00-00 HOLDERHOLDER
