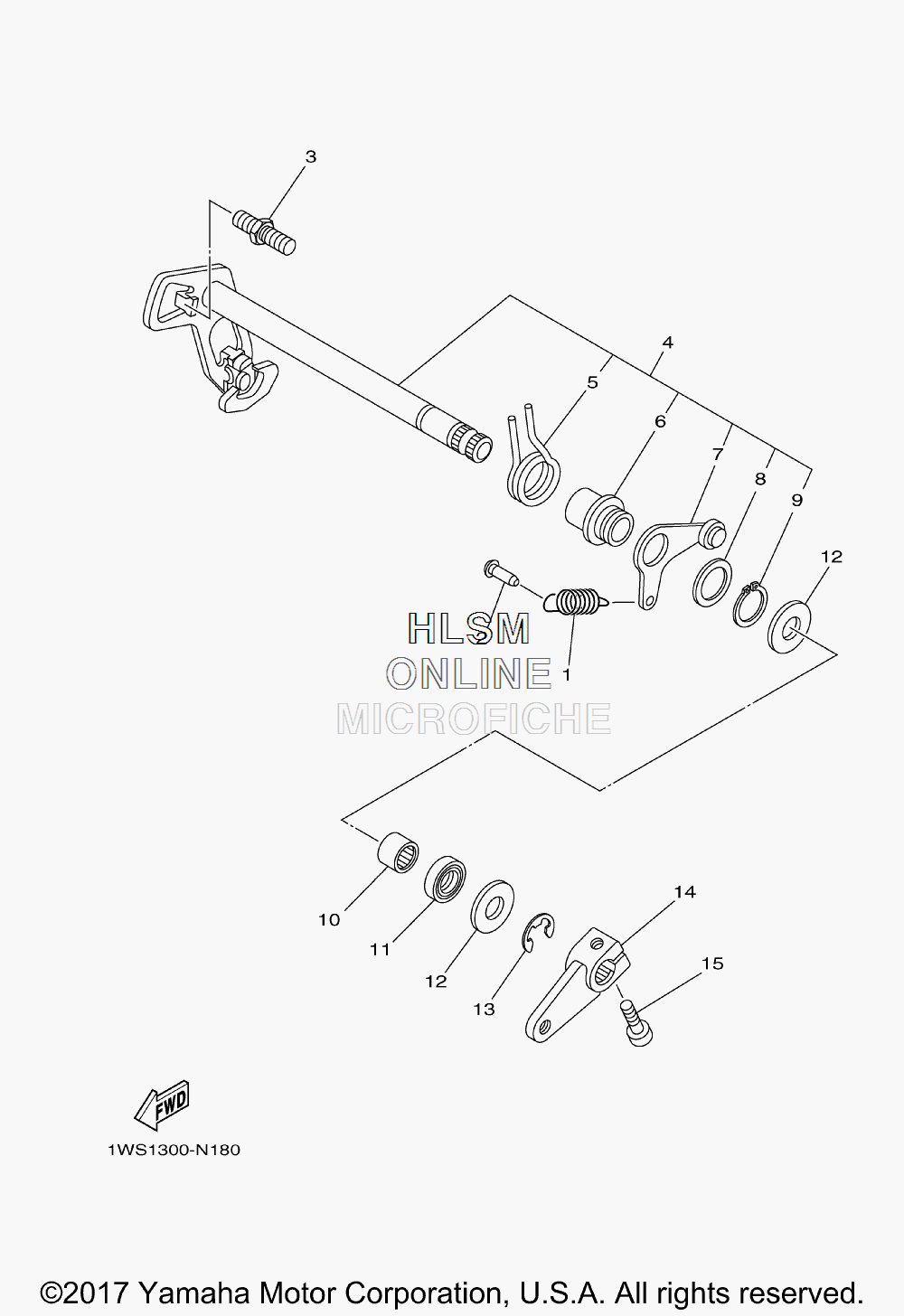

SHIFT SHAFT для Yamaha FZ07 - 2017 года выпуска
-
№АртикулНазвание
-
190506-18021-00 SPRING, TENSIONSPRING, TENSION
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
41WS-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-29040-00 ...SPRING, TORSION...SPRING, TORSION
-
62C0-18175-00-00 ...SPACER...SPACER
-
71WS-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1093317-11295-00 BEARINGBEARING
-
1193102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
1290201-12575-00 WASHER, PLATEWASHER, PLATE
-
1399002-10600-00 CIRCLIPCIRCLIP
-
141WS-18112-00-00 ARM, SHIFTARM, SHIFT
-
1591317-06020-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
