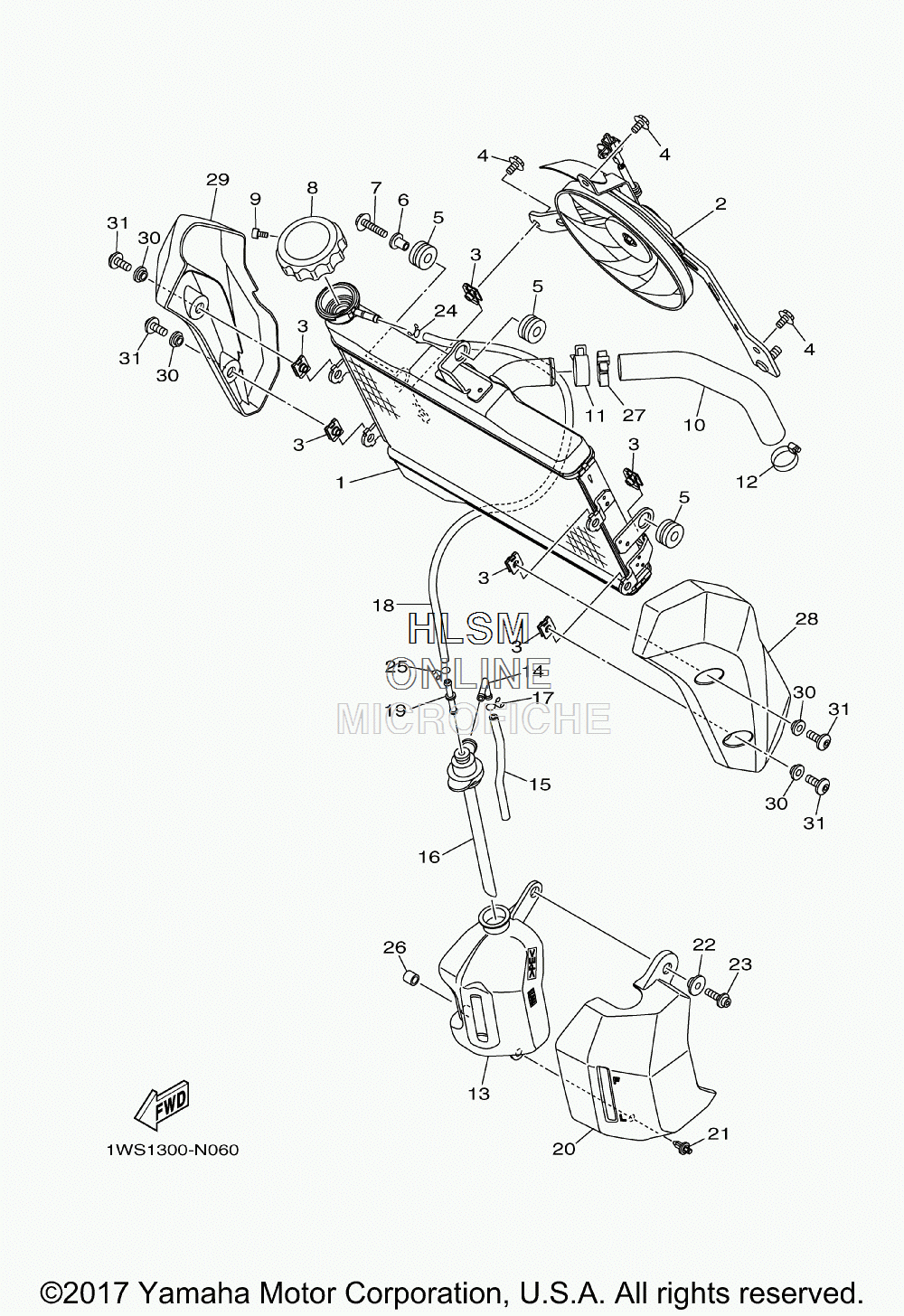

RADIATOR для Yamaha FZ07 - 2017 года выпуска
-
№АртикулНазвание
-
11WS-12461-00-00 RADIATOR COMPRADIATOR COMP
-
21WS-12405-00-00 BLOWER ASSYBLOWER ASSY
-
31WS-12671-00-00 NUT 1NUT 1
-
45GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
590480-15363-00 GROMMETGROMMET
-
690387-07391-00 COLLARCOLLAR
-
795802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
83D7-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
991317-03006-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
101WS-12578-00-00 HOSE 3HOSE 3
-
1190467-290A0-00 CLIPCLIP
-
1290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
131WS-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
1426H-21828-00-00 ELBOWELBOW
-
1590445-08020-00 HOSEHOSE
-
163P6-21875-00-00 CAPCAP
-
1790467-08075-00 CLIPCLIP
-
181WS-21816-00-00 PIPE 1PIPE 1
-
194XY-14568-00-00 JOINTJOINT
-
201WS-2172W-00-00 COVERCOVER
-
2190269-06008-00 RIVETRIVET
-
2290387-06024-00 COLLARCOLLAR
-
2390110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490467-08075-00 CLIPCLIP
-
2590467-08003-00 CLIPCLIP
-
2690445-11M08-00 HOSE (L10)HOSE (L10)
-
2790464-07M40-00 CLAMPCLAMP
-
281WS-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
291WS-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
3090387-06130-00 COLLARCOLLAR
-
3190111-06151-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
