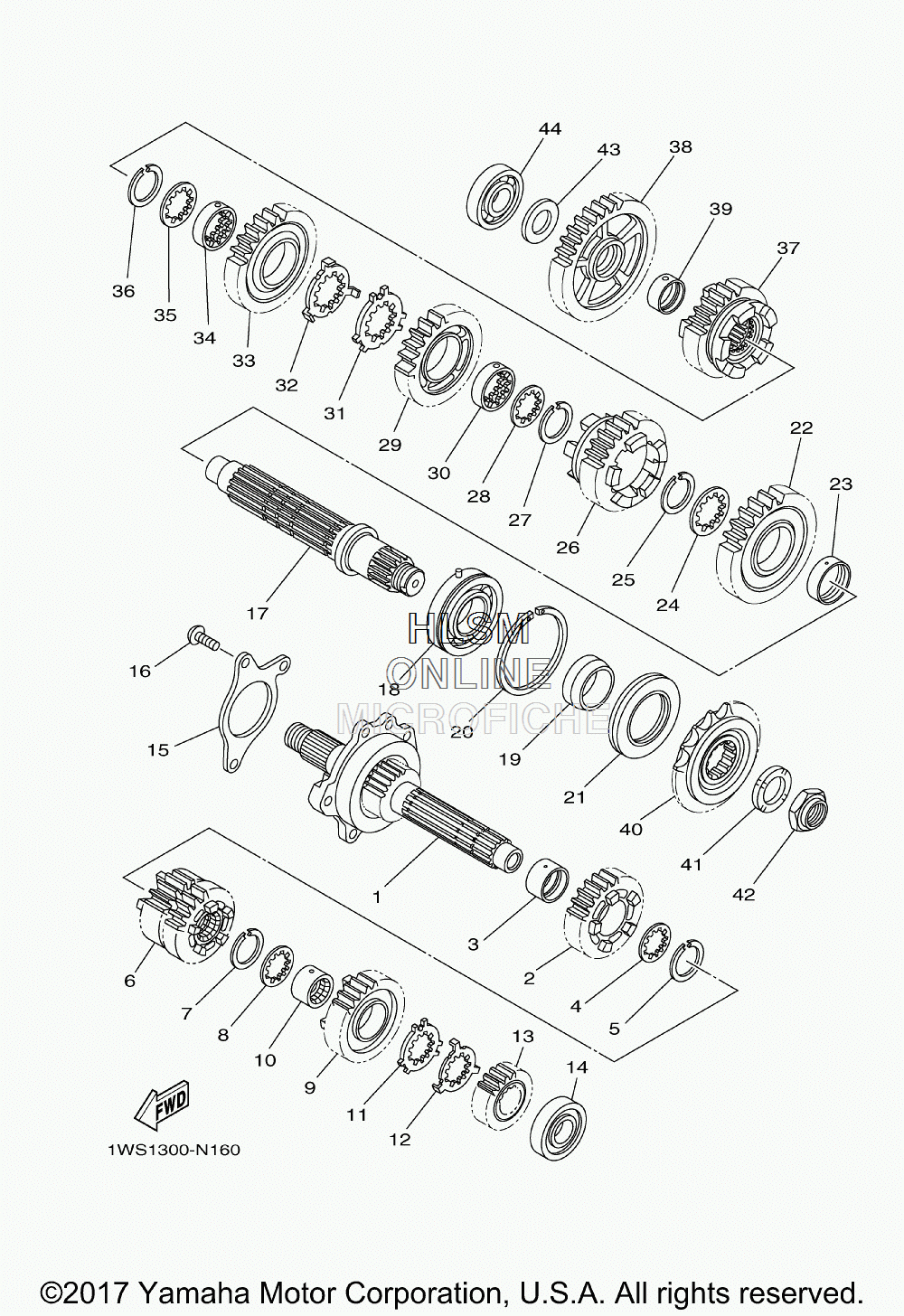

TRANSMISSION для Yamaha FZ07 - 2017 года выпуска
-
№АртикулНазвание
-
11WS-17401-00-00 MAIN AXLE ASSYMAIN AXLE ASSY
-
21WS-17151-00-00 GEAR, 5TH PINION (22T)GEAR, 5TH PINION (22T)
-
390387-250R3-00 COLLARCOLLAR
-
490209-21332-00 WASHERWASHER
-
593440-25186-00 CIRCLIPCIRCLIP
-
61WS-17131-00-00 GEAR, 3RD PINION (20T/19T)GEAR, 3RD PINION (20T/19T)
-
793440-25186-00 CIRCLIPCIRCLIP
-
890209-21332-00 WASHERWASHER
-
91WS-17161-00-00 GEAR, 6TH PINION (28T)GEAR, 6TH PINION (28T)
-
1090387-21003-00 COLLARCOLLAR
-
1190209-22352-00 WASHERWASHER
-
1290209-21351-00 WASHERWASHER
-
131WS-17121-00-00 GEAR, 2ND PINION (16T)GEAR, 2ND PINION (16T)
-
1493306-20464-00 BEARINGBEARING
-
151WS-17446-00-00 PLATEPLATE
-
1690149-06189-00 SCREWSCREW
-
171WS-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1893306-20663-00 BEARINGBEARING
-
1990387-30012-00 COLLARCOLLAR
-
2093440-64199-00 CIRCLIPCIRCLIP
-
2193102-40030-00 OIL SEALOIL SEAL
-
221WS-17221-00-00 GEAR, 2ND WHEEL (34T)GEAR, 2ND WHEEL (34T)
-
2390387-31003-00 COLLARCOLLAR
-
2490209-28008-00 WASHERWASHER
-
2593440-31187-00 CIRCLIPCIRCLIP
-
261WS-17261-00-00 GEAR, 6TH WHEEL (27T)GEAR, 6TH WHEEL (27T)
-
2793440-31187-00 CIRCLIPCIRCLIP
-
2890209-28008-00 WASHERWASHER
-
291WS-17241-00-00 GEAR, 4TH WHEEL (26T)GEAR, 4TH WHEEL (26T)
-
3090387-28004-00 COLLARCOLLAR
-
3190214-29002-00 WASHER, CLAWWASHER, CLAW
-
3290214-28002-00 WASHER, CLAWWASHER, CLAW
-
331WS-17231-00-00 GEAR, 3RD WHEEL (31T)GEAR, 3RD WHEEL (31T)
-
3490387-28004-00 COLLARCOLLAR
-
3590209-28008-00 WASHERWASHER
-
3693440-31187-00 CIRCLIPCIRCLIP
-
371WS-17251-00-00 GEAR, 5TH WHEEL (24T)GEAR, 5TH WHEEL (24T)
-
381WS-17211-00-00 GEAR, 1ST WHEEL (37T)GEAR, 1ST WHEEL (37T)
-
3990387-25008-00 COLLARCOLLAR
-
401WS-17460-00-00 SPROCKET, DRIVE (16T)SPROCKET, DRIVE (16T)
-
4190208-22002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
4290179-22018-00 NUTNUT
-
4390201-20008-00 WASHER, PLATEWASHER, PLATE
-
4493306-20464-00 BEARINGBEARING
