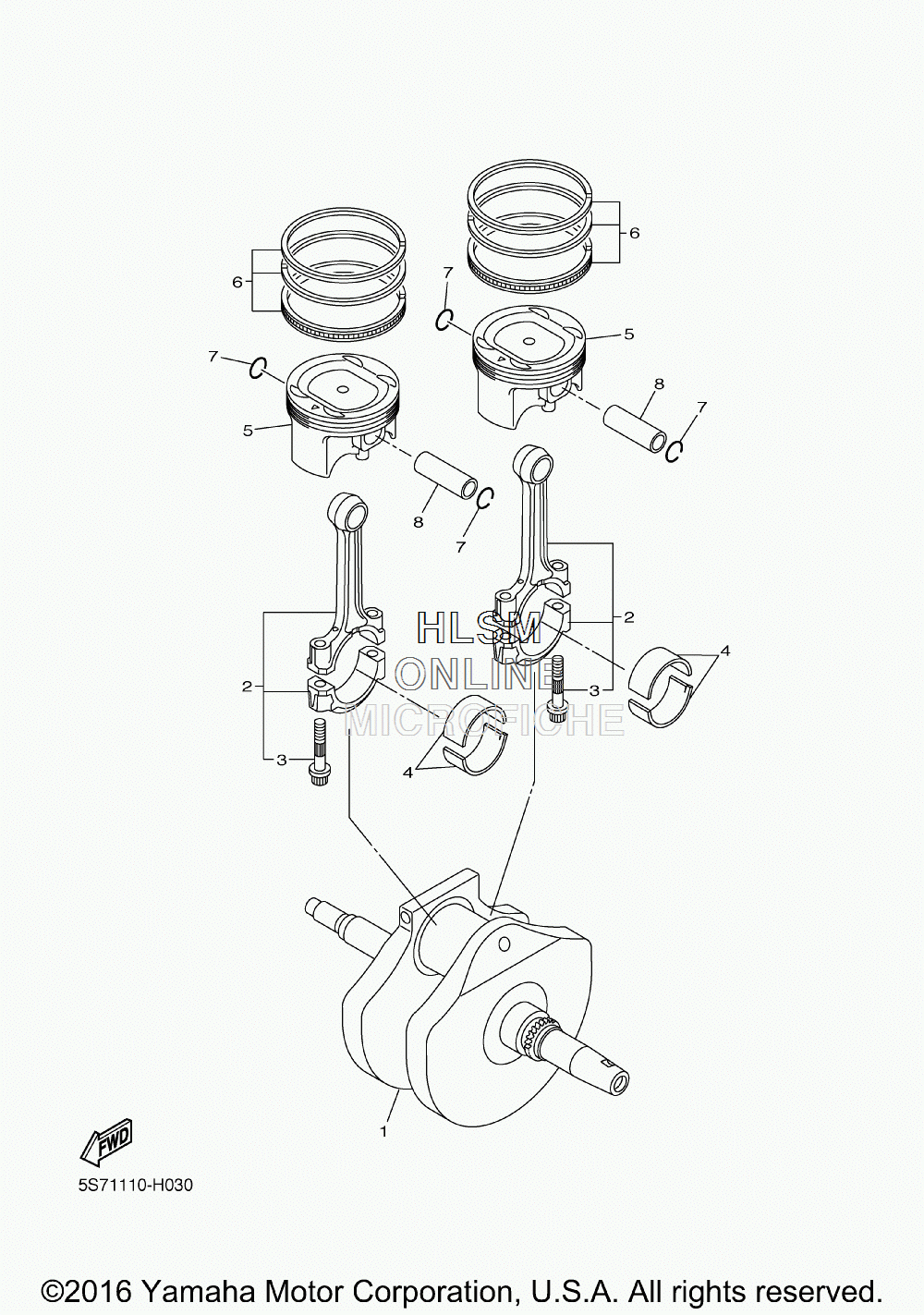

CRANKSHAFT - PISTON для Yamaha SCR950 - 2017 года выпуска
-
№АртикулНазвание
-
15S7-11411-00-00 CRANKSHAFTCRANKSHAFT
-
25S7-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35YU-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
45YU-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
45YU-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
45YU-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
55S7-11631-01-00 PISTON (STD)PISTON (STD)
-
65S7-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
793450-22146-00 CIRCLIPCIRCLIP
-
85PS-11633-00-00 PIN, PISTONPIN, PISTON
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- • CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL CLEANER
- OIL PUMP
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE
- WHEEL - FRONT
- WHEEL - REAR
