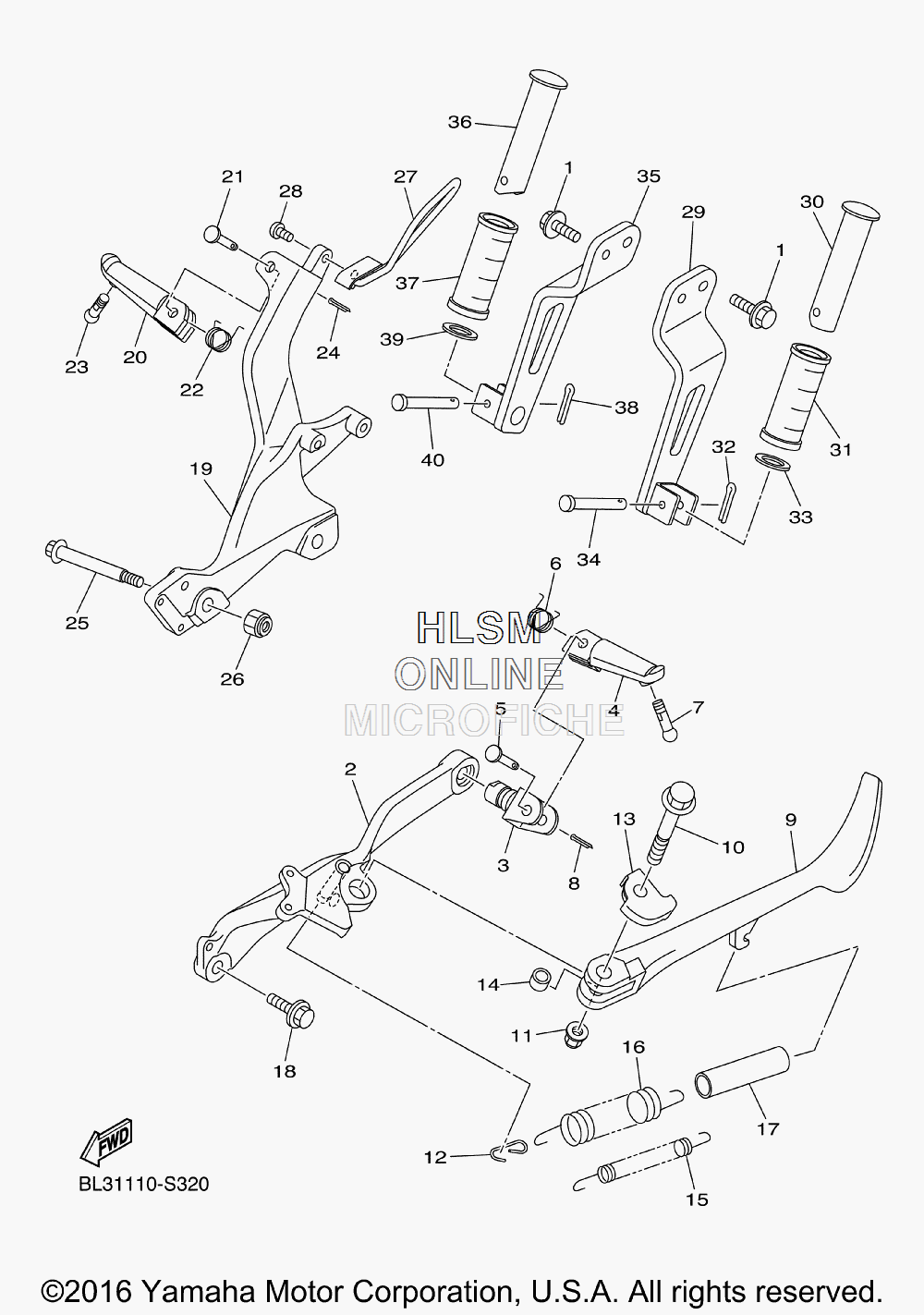

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha SCR950 - 2017 года выпуска
-
№АртикулНазвание
-
190105-08253-00 BOLT, FLANGEBOLT, FLANGE
-
2B33-27411-00-00 FOOTREST 1FOOTREST 1
-
346X-27411-10-00 FOOTREST 1FOOTREST 1
-
43XV-27451-02-00 FOOTRESTFOOTREST
-
591701-08035-00 PINPIN
-
690508-20572-00 SPRING, TORSIONSPRING, TORSION
-
790109-08018-00 BOLTBOLT
-
891401-25015-00 PIN, COTTERPIN, COTTER
-
91TP-27311-00-00 STAND, SIDESTAND, SIDE
-
1090105-10426-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
121TP-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
135S7-27322-00-00 WASHERWASHER
-
1490387-10020-00 COLLARCOLLAR
-
1590506-23015-00 SPRING, TENSIONSPRING, TENSION
-
1690506-29006-00 SPRING, TENSIONSPRING, TENSION
-
1790445-16641-00 HOSE (L60)HOSE (L60)
-
1890105-10424-00 BOLT, FLANGEBOLT, FLANGE
-
19B33-27421-00-00 FOOTREST 2FOOTREST 2
-
203XV-27461-02-00 FOOTRESTFOOTREST
-
2191702-08040-00 PIN, CLEVISPIN, CLEVIS
-
2290508-20572-00 SPRING, TORSIONSPRING, TORSION
-
2390109-08018-00 BOLTBOLT
-
2491401-25015-00 PIN, COTTERPIN, COTTER
-
2590105-10364-00 BOLT, FLANGEBOLT, FLANGE
-
2690185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
27B33-27267-00-00 GUIDE, WIREGUIDE, WIRE
-
2890157-08117-00 SCREW, PAN HEADSCREW, PAN HEAD
-
291XC-27263-00-00 BRACKET 1BRACKET 1
-
30120-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
315S7-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
3291401-20012-00 PIN, COTTERPIN, COTTER
-
3390201-20279-00 WASHER, PLATEWASHER, PLATE
-
3491701-06032-00 PINPIN
-
351XC-27264-00-00 BRACKET 2BRACKET 2
-
36120-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
375S7-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
3891401-20012-00 PIN, COTTERPIN, COTTER
-
3990201-20279-00 WASHER, PLATEWASHER, PLATE
-
4091701-06032-00 PINPIN
