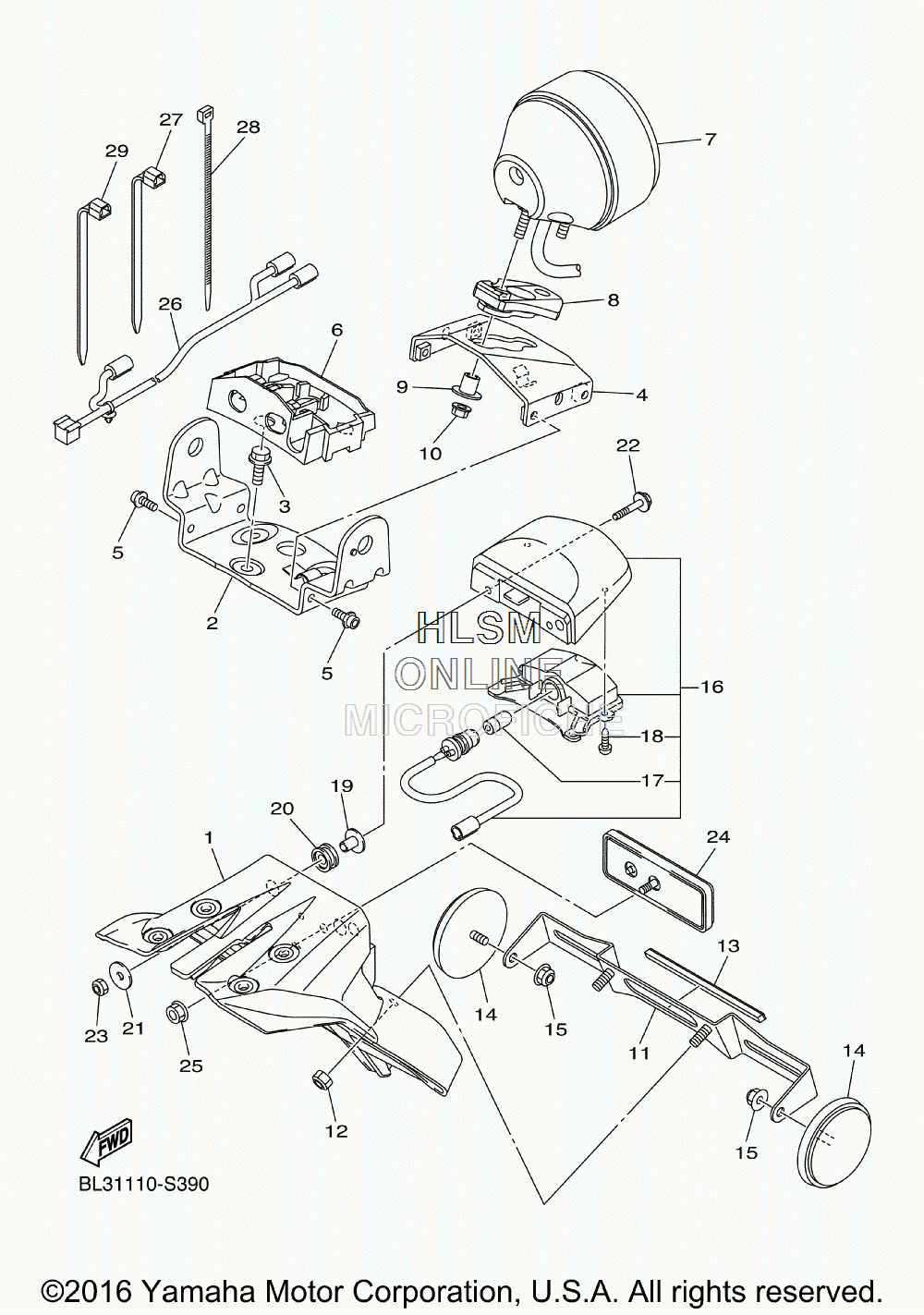

TAILLIGHT для Yamaha SCR950 - 2017 года выпуска
-
№АртикулНазвание
-
1BL3-21685-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2BL3-83368-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
395807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4BL3-83369-00-00 STAY, FLASHER 2STAY, FLASHER 2
-
590109-05017-00 BOLTBOLT
-
6BL3-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
-
7BL3-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
81TP-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
-
990387-06161-00 COLLARCOLLAR
-
1090179-06054-00 NUTNUT
-
11BL3-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1295602-06100-00 NUT, S/LNUT, S/L
-
135RU-2837J-00-00 DAMPER 5DAMPER 5
-
14449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
1595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1632C-84745-01-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
174HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
1897707-40612-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1990387-05036-00 COLLARCOLLAR
-
204WM-83513-00-00 DAMPERDAMPER
-
2190201-05036-00 WASHER, PLATEWASHER, PLATE
-
2290159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2395602-05100-00 NUT, UNUT, U
-
243Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2595702-05500-00 NUT, FLANGENUT, FLANGE
-
26BL3-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
2790464-15195-00 CLAMPCLAMP
-
283MA-82591-00-00 BANDBAND
-
2990464-13077-00 CLAMPCLAMP
