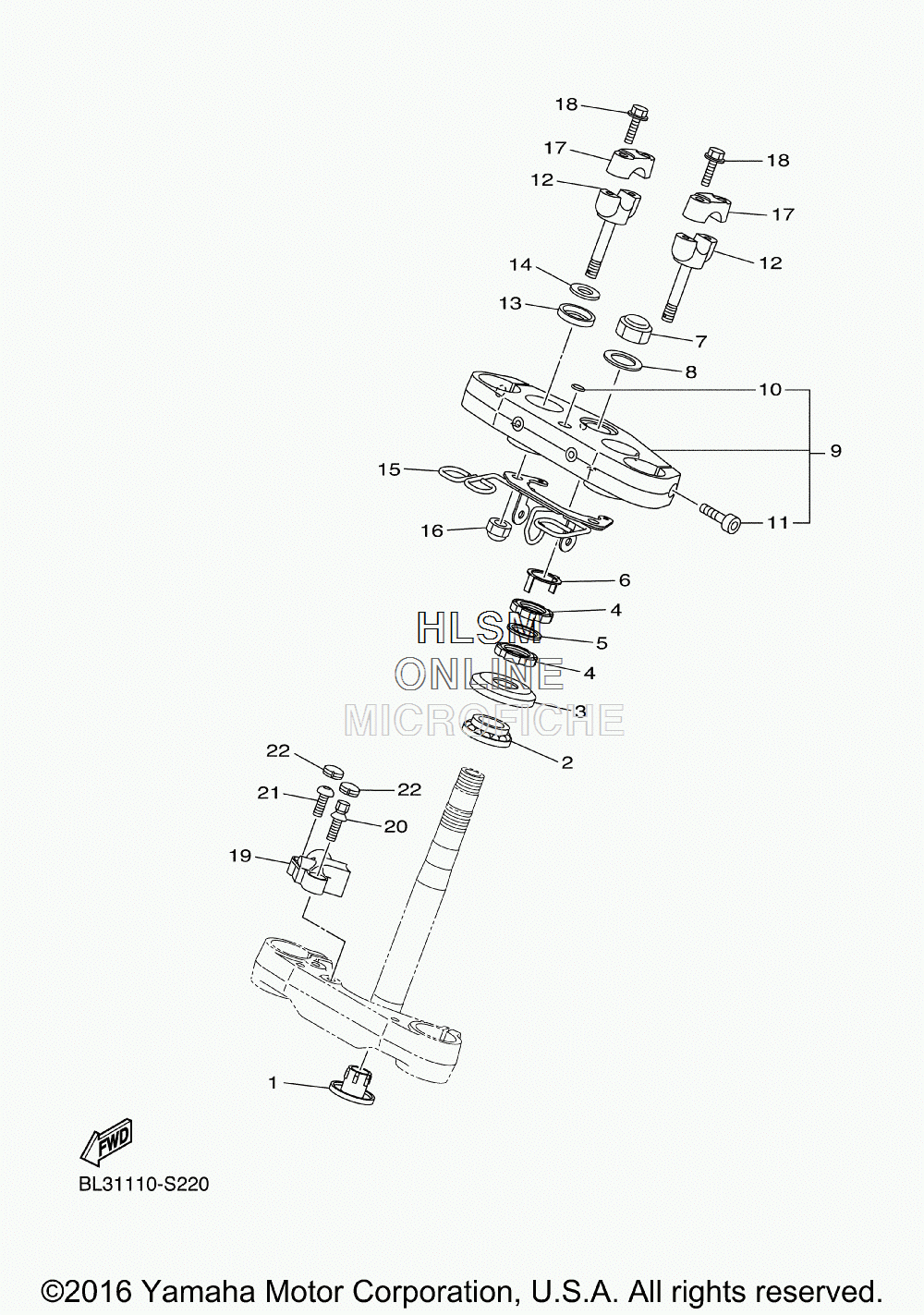

STEERING для Yamaha SCR950 - 2017 года выпуска
-
№АртикулНазвание
-
14KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
-
293399-99931-00 BEARINGBEARING
-
31W1-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
490179-25004-00 NUTNUT
-
590202-26142-00 WASHER, PLATEWASHER, PLATE
-
626H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
790176-22002-00 NUT, CROWNNUT, CROWN
-
890201-220T0-00 WASHER, PLATEWASHER, PLATE
-
9BL3-Y2343-00-00 CROWN, HANDLECROWN, HANDLE
-
1014B-2836B-00-00 ...TUNING FORK MARK...TUNING FORK MARK
-
1191314-08030-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
123Y6-23442-00-P2 HOLDER, HANDLE LOWER (MBL2 - MAT BLACK #2)HOLDER, HANDLE LOWER (MBL2 - MAT BLACK #2)
-
133DM-23445-00-00 DAMPERDAMPER
-
1490201-107F8-00 WASHER, PLATEWASHER, PLATE
-
15BL3-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
1690176-10003-00 NUT, CROWNNUT, CROWN
-
171E6-23441-10-P0 HOLDER, HANDLE UPPER (MBL2 - MAT BLACK #2)HOLDER, HANDLE UPPER (MBL2 - MAT BLACK #2)
-
1895027-08035-00 BOLT, FLANGEBOLT, FLANGE
-
191TP-23408-00-00 STEERING LOCK ASSYSTEERING LOCK ASSY
-
2090109-08195-00 BOLTBOLT
-
2190149-08055-00 SCREWSCREW
-
221TP-23484-00-00 CAP, HANDLE LOCKCAP, HANDLE LOCK
