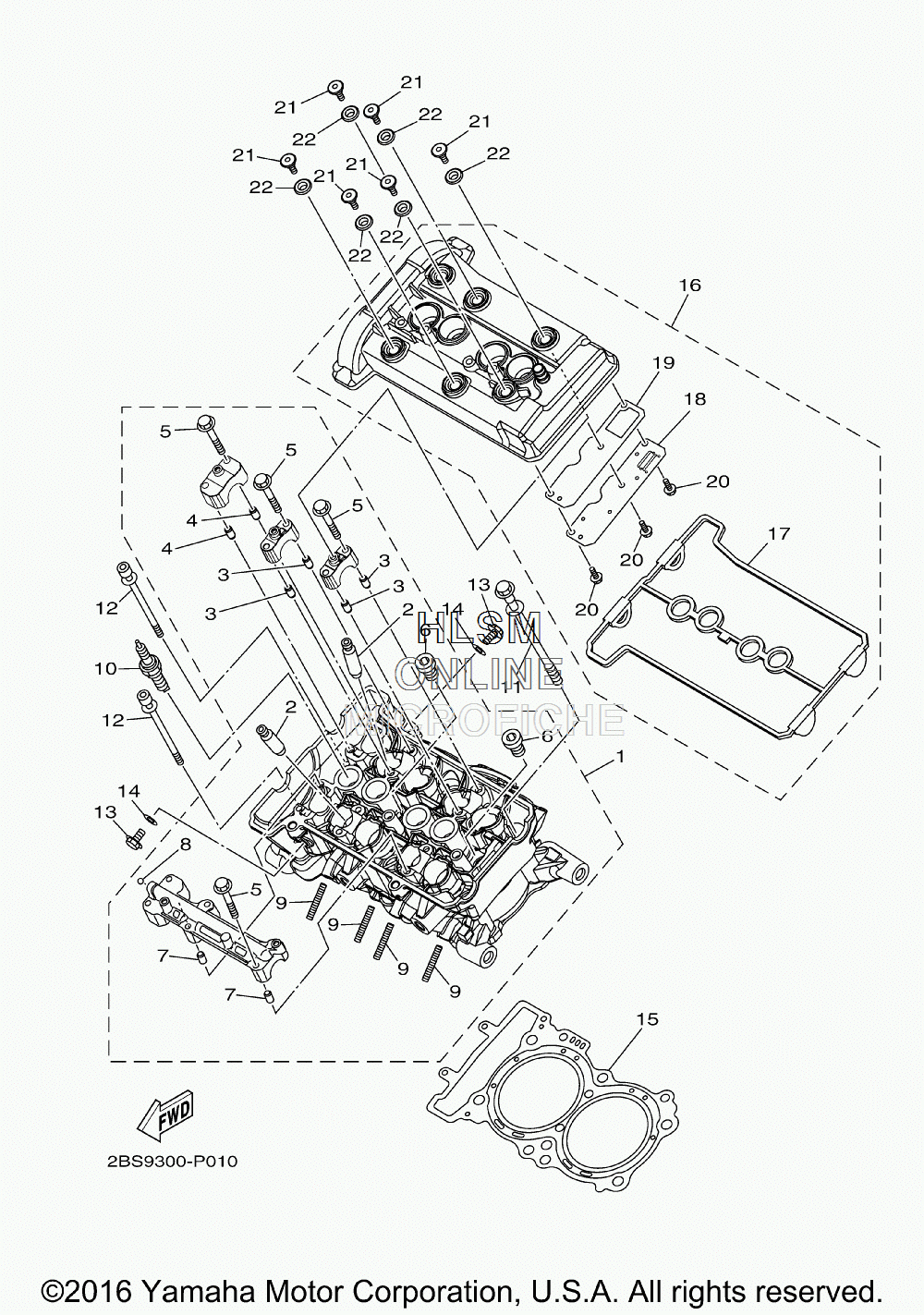

CYLINDER HEAD для Yamaha SUPER TENERE ES - 2017 года выпуска
-
№АртикулНазвание
-
12BS-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
223P-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
391808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
590105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
690340-12007-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
893501-04011-00 ...BALL...BALL
-
995612-08625-00 ...BOLT, STUD...BOLT, STUD
-
1094702-00428-00 PLUG, SPARK (NGK CPR8EB-9)PLUG, SPARK (NGK CPR8EB-9)
-
1190119-12003-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290110-06229-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1395022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1490430-08119-00 GASKETGASKET
-
1523P-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
162BS-11190-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
1723P-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
182BS-11165-00-00 ...PLATE, BREATHER...PLATE, BREATHER
-
1923P-11169-00-00 ...GASKET, BREATHER COVER...GASKET, BREATHER COVER
-
2090105-06201-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2190109-066F0-00 BOLTBOLT
-
225VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
