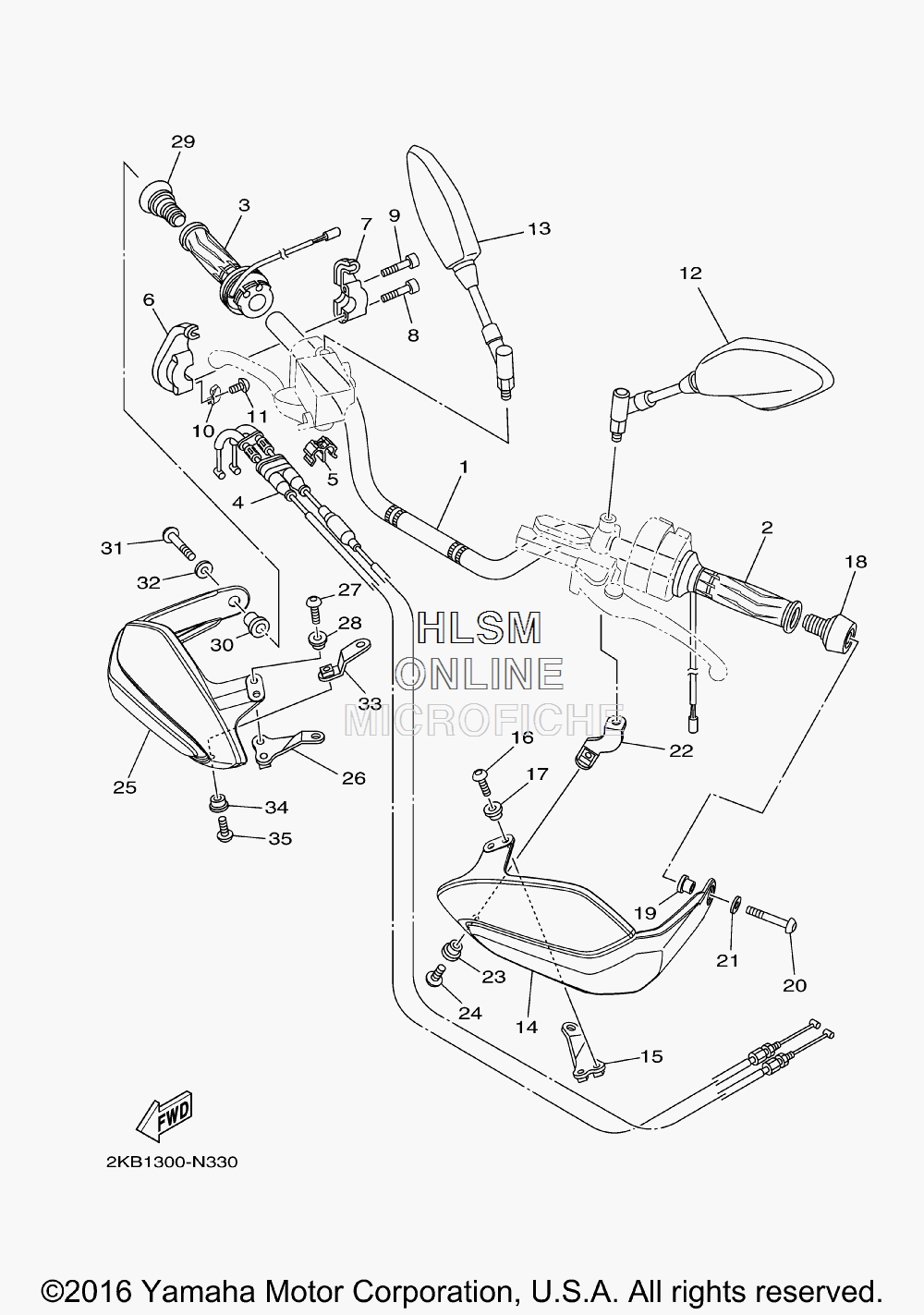

HANDLEBAR W/ CABLES для Yamaha SUPER TENERE ES - 2017 года выпуска
-
№АртикулНазвание
-
12BS-26111-00-00 HANDLEBARHANDLEBAR
-
22KB-82963-00-00 GRIP, WARMER (LEFT)GRIP, WARMER (LEFT)
-
32KB-82960-00-00 GRIP, WARMER (RIGHT)GRIP, WARMER (RIGHT)
-
42BS-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
590464-07M20-00 CLAMPCLAMP
-
62BS-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
72BS-26282-00-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
891317-05025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
991317-05020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
102KB-2622K-00-00 PROTECTOR 1PROTECTOR 1
-
1190157-03122-00 SCREW, PAN HEADSCREW, PAN HEAD
-
122BS-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
132BS-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
1423P-26141-01-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
1523P-26223-00-00 BRACKET, HANDLE 1BRACKET, HANDLE 1
-
1692014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790387-05017-00 COLLARCOLLAR
-
182BS-26246-00-00 END, GRIPEND, GRIP
-
1990387-08089-00 COLLARCOLLAR
-
2092012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190201-086P8-00 WASHER, PLATEWASHER, PLATE
-
2223P-2622A-00-00 BRACKET, HANDLE 3BRACKET, HANDLE 3
-
2390387-05021-00 COLLARCOLLAR
-
2490111-05031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2523P-26142-01-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
2623P-26224-00-00 BRACKET, HANDLE 2BRACKET, HANDLE 2
-
2792014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2890387-05017-00 COLLARCOLLAR
-
292BS-26246-00-00 END, GRIPEND, GRIP
-
3090387-08089-00 COLLARCOLLAR
-
3192012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3290201-086P8-00 WASHER, PLATEWASHER, PLATE
-
3323P-2622E-00-00 BRACKET, HANDLE 4BRACKET, HANDLE 4
-
3490387-05021-00 COLLARCOLLAR
-
3590111-05031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
