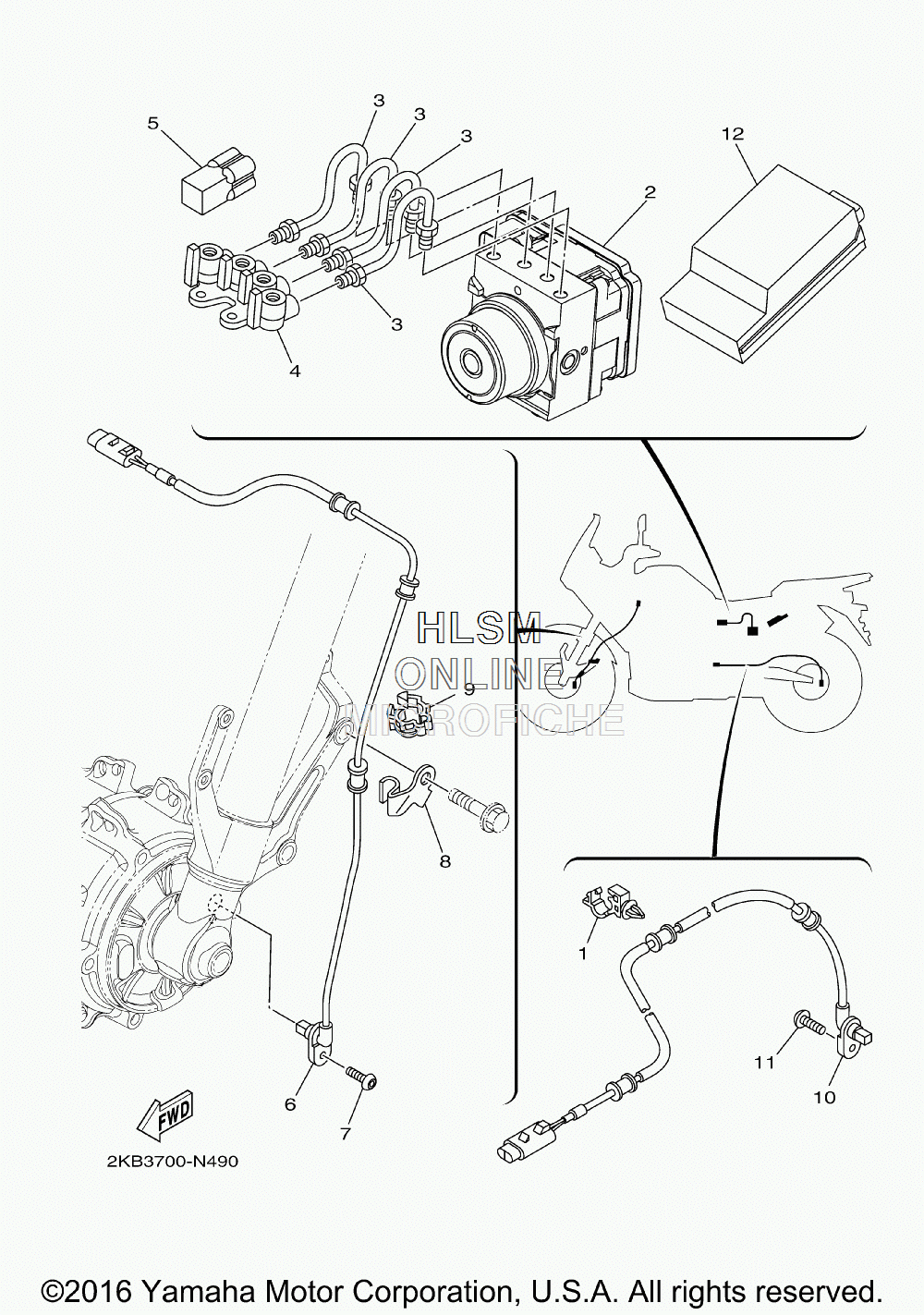

ELECTRICAL 3 для Yamaha SUPER TENERE ES - 2017 года выпуска
-
№АртикулНазвание
-
190464-10008-00 CLAMPCLAMP
-
223P-85930-19-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
323P-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
423P-25885-00-00 JOINTJOINT
-
53YA-82378-00-00 CONNECTORCONNECTOR
-
623P-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
792014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
823P-23318-00-00 WIRE, HOLDER 1WIRE, HOLDER 1
-
990464-12013-00 CLAMPCLAMP
-
1023P-85980-00-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
1192014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
122KB-85902-00-00 SUSPENSION CONTROL UNIT ASSYSUSPENSION CONTROL UNIT ASSY
