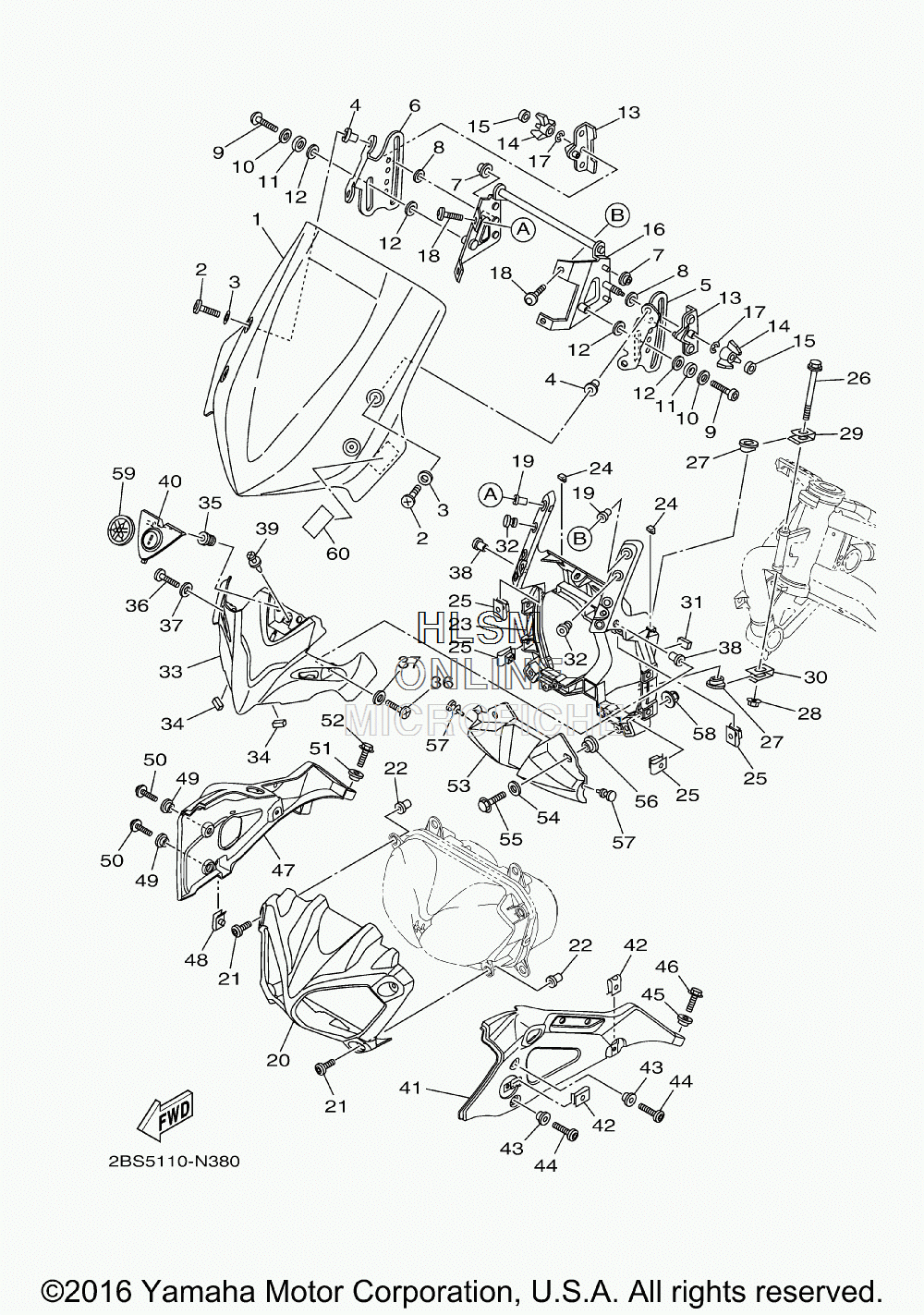

WINDSHIELD для Yamaha SUPER TENERE ES - 2017 года выпуска
-
№АртикулНазвание
-
12BS-28381-00-00 WINDSHIELDWINDSHIELD
-
290154-05011-00 SCREW, BINDINGSCREW, BINDING
-
390202-05180-00 WASHER, PLATEWASHER, PLATE
-
490179-05003-00 NUTNUT
-
52BS-2831U-00-00 STAY, SIDE 1STAY, SIDE 1
-
62BS-2832U-00-00 STAY, SIDE 1STAY, SIDE 1
-
790386-07MA2-00 BUSHBUSH
-
890202-07015-00 WASHER, PLATEWASHER, PLATE
-
992017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090201-06021-00 WASHER, PLATEWASHER, PLATE
-
1190430-12072-00 GASKETGASKET
-
1290201-123F2-00 WASHER, PLATEWASHER, PLATE
-
132BS-2831E-00-00 STAY, GUIDE 1STAY, GUIDE 1
-
142BS-26383-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
152BS-28349-00-00 CAPCAP
-
162BS-2831R-00-00 STAY, MAIN 1STAY, MAIN 1
-
1799002-03600-00 CIRCLIPCIRCLIP
-
1890111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1990179-05523-00 NUTNUT
-
2023P-2835G-00-00 BODY, FRONT UPPER 1BODY, FRONT UPPER 1
-
2190111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290179-06520-00 NUTNUT
-
2323P-28356-01-00 STAY 1STAY 1
-
2490520-02005-00 DAMPER, PLATEDAMPER, PLATE
-
2590183-060A1-00 NUT, SPRINGNUT, SPRING
-
2690105-085A5-00 BOLT, FLANGEBOLT, FLANGE
-
275PS-28373-01-00 COLLARCOLLAR
-
2895707-08500-00 NUT, FLANGENUT, FLANGE
-
2923P-28336-00-00 PLATEPLATE
-
3023P-28397-00-00 PLATE 2PLATE 2
-
3123P-28344-00-00 TAPETAPE
-
3290338-10132-00 PLUGPLUG
-
332BS-283M3-00-00 DEFLECTORDEFLECTOR
-
341HX-28227-00-00 DAMPER 2DAMPER 2
-
3590480-10003-00 GROMMETGROMMET
-
3690154-05011-00 SCREW, BINDINGSCREW, BINDING
-
3790202-05180-00 WASHER, PLATEWASHER, PLATE
-
3890179-05003-00 NUTNUT
-
3990269-06081-00 RIVETRIVET
-
402BS-83559-00-00 COVER, METERCOVER, METER
-
4123P-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
4290183-060A6-00 NUT, SPRINGNUT, SPRING
-
4390387-06048-00 COLLARCOLLAR
-
4490111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4590387-08080-00 COLLARCOLLAR
-
4695822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4723P-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
4890183-060A6-00 NUT, SPRINGNUT, SPRING
-
4990387-06048-00 COLLARCOLLAR
-
5090111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5190387-08080-00 COLLARCOLLAR
-
5295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
532BS-28365-00-00 COVERCOVER
-
5490201-061A5-00 WASHER, PLATEWASHER, PLATE
-
5595807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
5690387-06200-00 COLLARCOLLAR
-
5790480-04166-00 GROMMETGROMMET
-
5890176-06016-00 NUT, CAPNUT, CAP
-
598GC-2836B-02-00 TUNING FORK MARKTUNING FORK MARK
-
604B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
