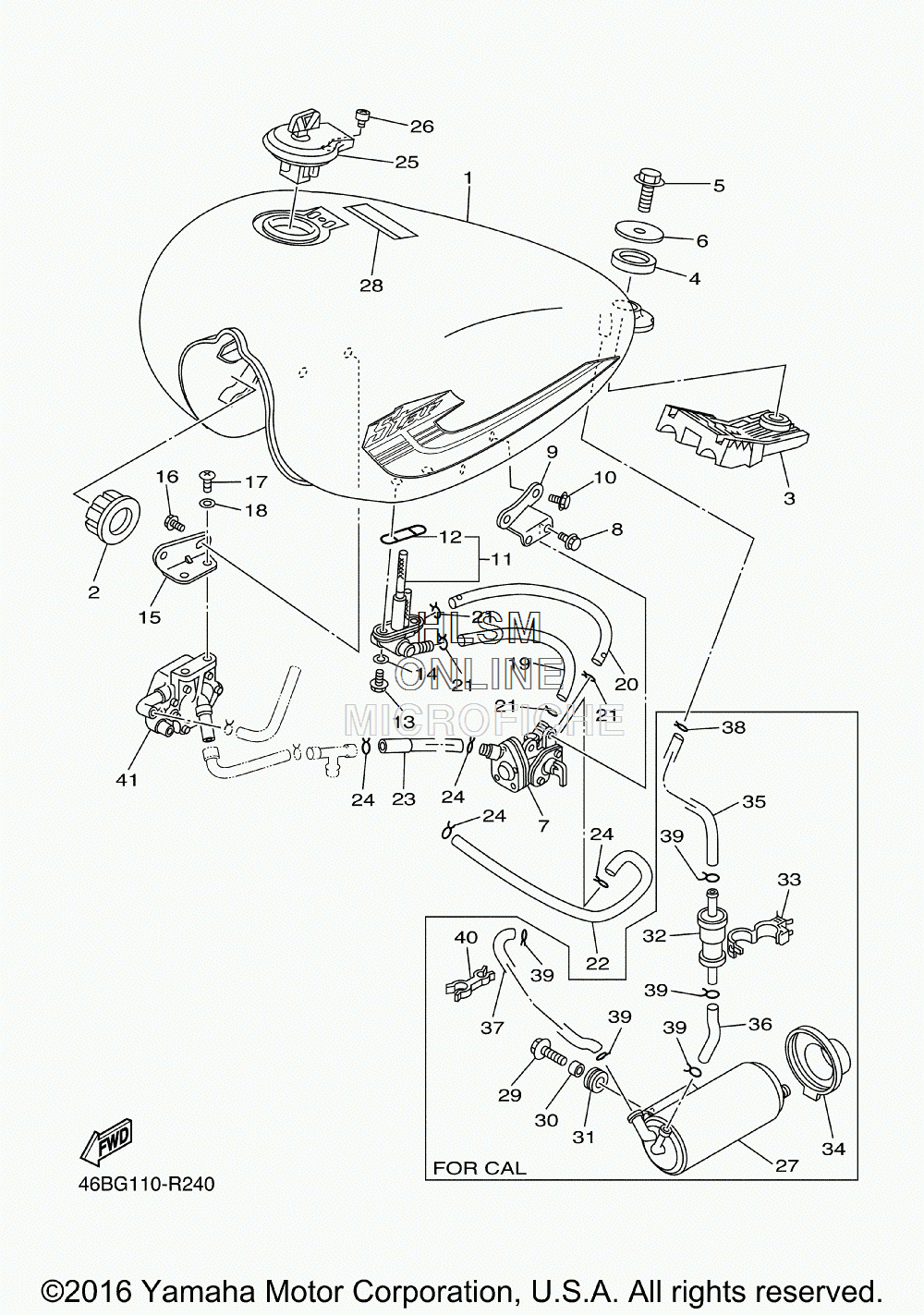

FUEL TANK для Yamaha V STAR 250 - 2017 года выпуска
-
№АртикулНазвание
-
13LS-Y2410-T3-W4 FUEL TANK COMP. (EXCEPT CALIF)FUEL TANK COMP. (EXCEPT CALIF)
-
13BG-Y2410-02-X8 FUEL TANK COMP. (CALIF ONLY)FUEL TANK COMP. (CALIF ONLY)
-
24H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
32UJ-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
442X-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
595807-08030-00 BOLT, FLANGEBOLT, FLANGE
-
690201-08569-00 WASHER, PLATEWASHER, PLATE
-
72UJ-24500-10-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
895024-06010-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
92UJ-24544-01-00 BRACKET, FUEL COCKBRACKET, FUEL COCK
-
1095024-06010-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
112UJ-24560-10-00 FILTER ASSYFILTER ASSY
-
124X8-24512-10-00 ...GASKET...GASKET
-
1390149-06011-00 SCREWSCREW
-
1490202-05193-00 WASHER, PLATEWASHER, PLATE
-
152UJ-24491-01-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1695024-06010-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
1798507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892907-06600-00 WASHER, PLATEWASHER, PLATE
-
1990445-11057-00 HOSEHOSE
-
2090445-11058-00 HOSEHOSE
-
2190467-10008-00 CLIPCLIP
-
222UJ-24312-10-00 PIPE 2PIPE 2
-
232UJ-24313-00-00 PIPE 3PIPE 3
-
2490467-10008-00 CLIPCLIP
-
2520K-24602-10-00 CAP ASSY (CALIF ONLY)CAP ASSY (CALIF ONLY)
-
254X7-24602-10-00 CAP ASSYCAP ASSY
-
2691317-05010-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
-
273BG-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
281TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
2990119-06118-00 BOLT, WITH WASHER (CALIF ONLY)BOLT, WITH WASHER (CALIF ONLY)
-
3090387-0602R-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
3190480-14323-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
325PX-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
3390464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
342JU-2419E-00-00 COVER, CANISTER (CALIF ONLY)COVER, CANISTER (CALIF ONLY)
-
353BG-24321-10-00 PIPE 10 (CALIF ONLY)PIPE 10 (CALIF ONLY)
-
363BG-24322-10-00 PIPE 11 (CALIF ONLY)PIPE 11 (CALIF ONLY)
-
373BG-24323-10-00 PIPE 12 (CALIF ONLY)PIPE 12 (CALIF ONLY)
-
3890467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3990467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
4090464-16119-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
413DM-13910-01-00 FUEL PUMP ASSYFUEL PUMP ASSY
