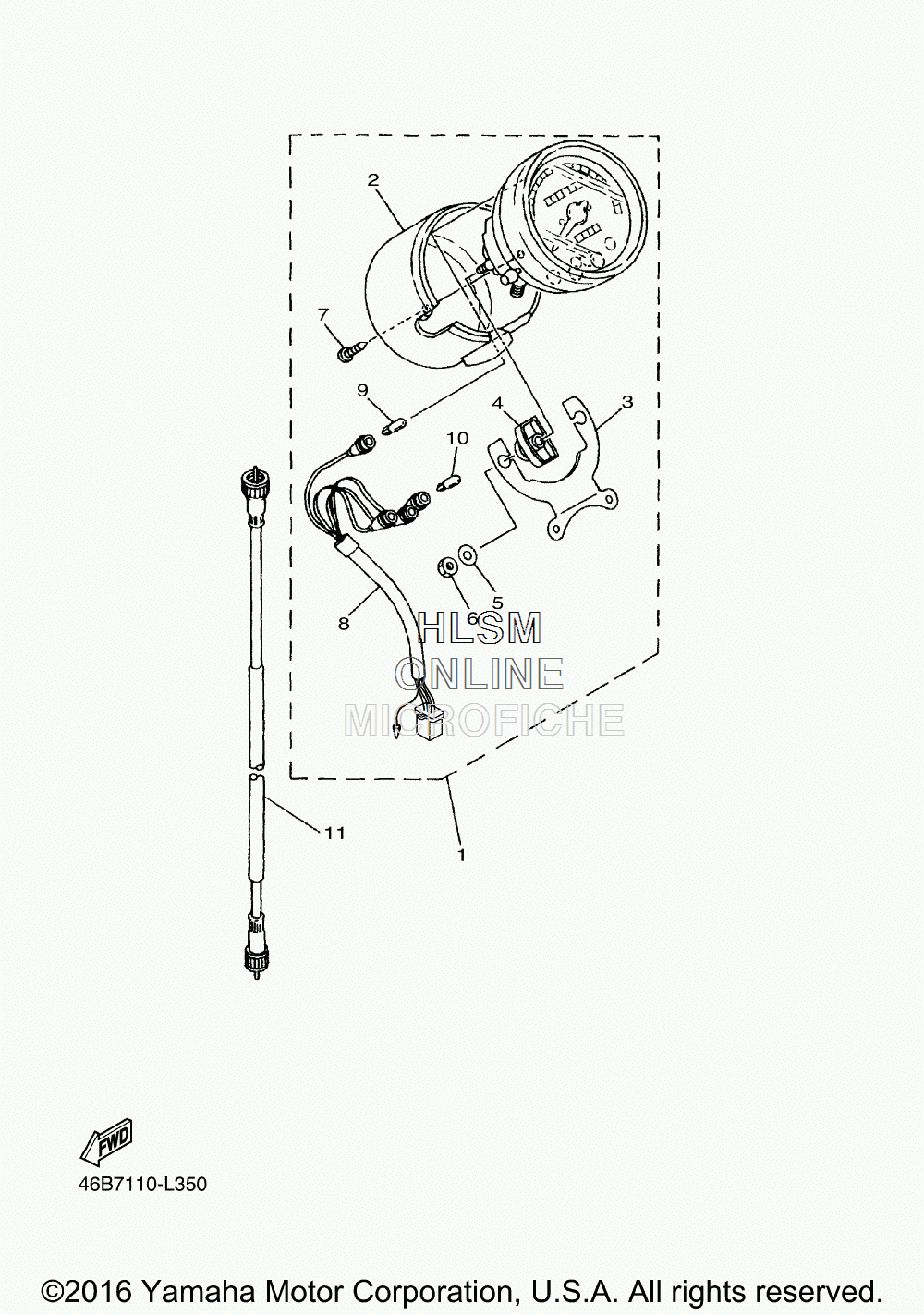

INSTRUMENT PANEL для Yamaha V STAR 250 - 2017 года выпуска
-
№АртикулНазвание
-
146B-83570-00-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
23DM-83507-00-00 ...CASE COMP, UNDER...CASE COMP, UNDER
-
346B-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
412R-83513-00-00 ...DAMPER...DAMPER
-
592902-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
695302-05600-00 ...NUT, HEXAGON...NUT, HEXAGON
-
797702-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
846B-83509-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
942X-83517-00-00 ...BULB (12V-3W)...BULB (12V-3W)
-
102GV-83517-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
114YH-83550-01-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
