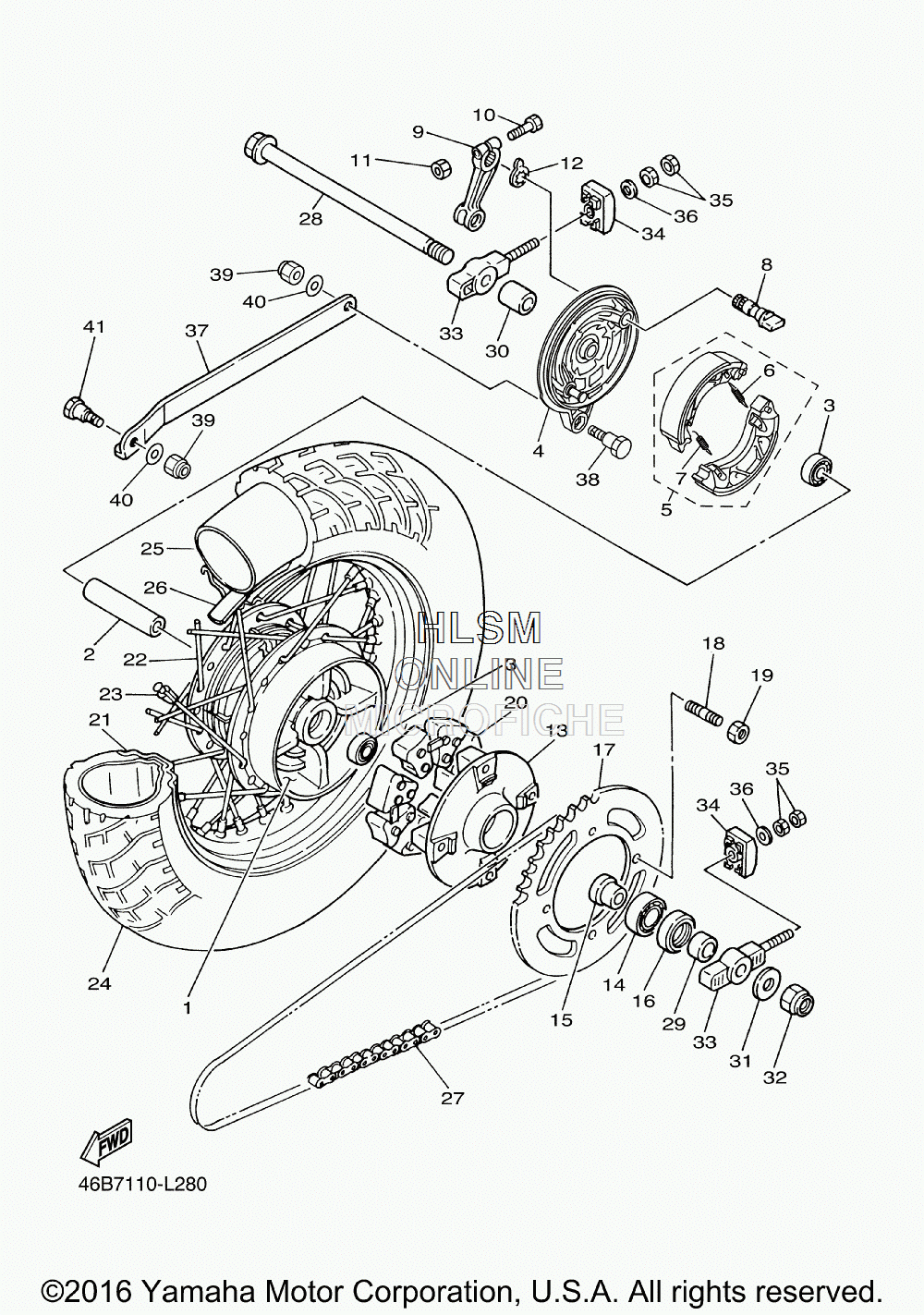

WHEEL - REAR для Yamaha V STAR 250 - 2017 года выпуска
-
№АртикулНазвание
-
12UJ-25311-10-00 HUB, REARHUB, REAR
-
22UJ-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
393306-20212-00 FLANGE, SPACERFLANGE, SPACER
-
42RH-25321-11-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
519D-W253E-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
690506-12001-00 ...SPRING, TENSION...SPRING, TENSION
-
790506-15001-00 ...SPRING, TENSION...SPRING, TENSION
-
82RH-25351-00-00 CAMSHAFTCAMSHAFT
-
95H0-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1090101-06765-00 BOLTBOLT
-
1195304-06600-00 NUTNUT
-
123Y6-2533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
135Y1-25366-10-00 CLUTCH, HUBCLUTCH, HUB
-
1493306-30437-00 BEARINGBEARING
-
152UJ-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1693106-30029-00 OIL SEALOIL SEAL
-
174DN-25445-30-00 SPROCKET, DRIVEN (45T)SPROCKET, DRIVEN (45T)
-
1890116-10485-00 BOLT, STUDBOLT, STUD
-
1995604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
205Y1-25364-00-00 DAMPERDAMPER
-
2194427-15600-00 RIM (MT2.75-15 M/C)RIM (MT2.75-15 M/C)
-
222UJ-25304-02-00 SPOKE SET, REARSPOKE SET, REAR
-
233HT-25398-00-00 BALANCER, WHEEL (15G) (OPT)BALANCER, WHEEL (15G) (OPT)
-
2494113-151W8-00 TIRE (130/90-15 M/C 66P C-915) (CHENG SHIN)TIRE (130/90-15 M/C 66P C-915) (CHENG SHIN)
-
2594213-15259-00 TUBE (130/90-15 TR4) (CHENG SHIN)TUBE (130/90-15 TR4) (CHENG SHIN)
-
2694313-15151-00 BAND, RIM (3.00-15) (CHENG SHIN)BAND, RIM (3.00-15) (CHENG SHIN)
-
2794581-11114-00 CHAIN (DID520DS-114LE)CHAIN (DID520DS-114LE)
-
284HC-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
2990387-15004-00 COLLARCOLLAR
-
3090387-153U1-00 COLLARCOLLAR
-
3192903-14200-00 WASHERWASHER
-
3290185-14002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
332UJ-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
3455K-2539F-00-00 PLATE 1PLATE 1
-
3595304-08600-00 NUTNUT
-
3692903-08600-00 WASHER, PLATEWASHER, PLATE
-
372UJ-25371-00-00 BAR, TENSIONBAR, TENSION
-
3890109-08005-00 BOLTBOLT
-
3995607-08100-00 NUT, UNUT, U
-
4092907-08600-00 WASHER, PLATEWASHER, PLATE
-
4190109-08003-00 BOLTBOLT
