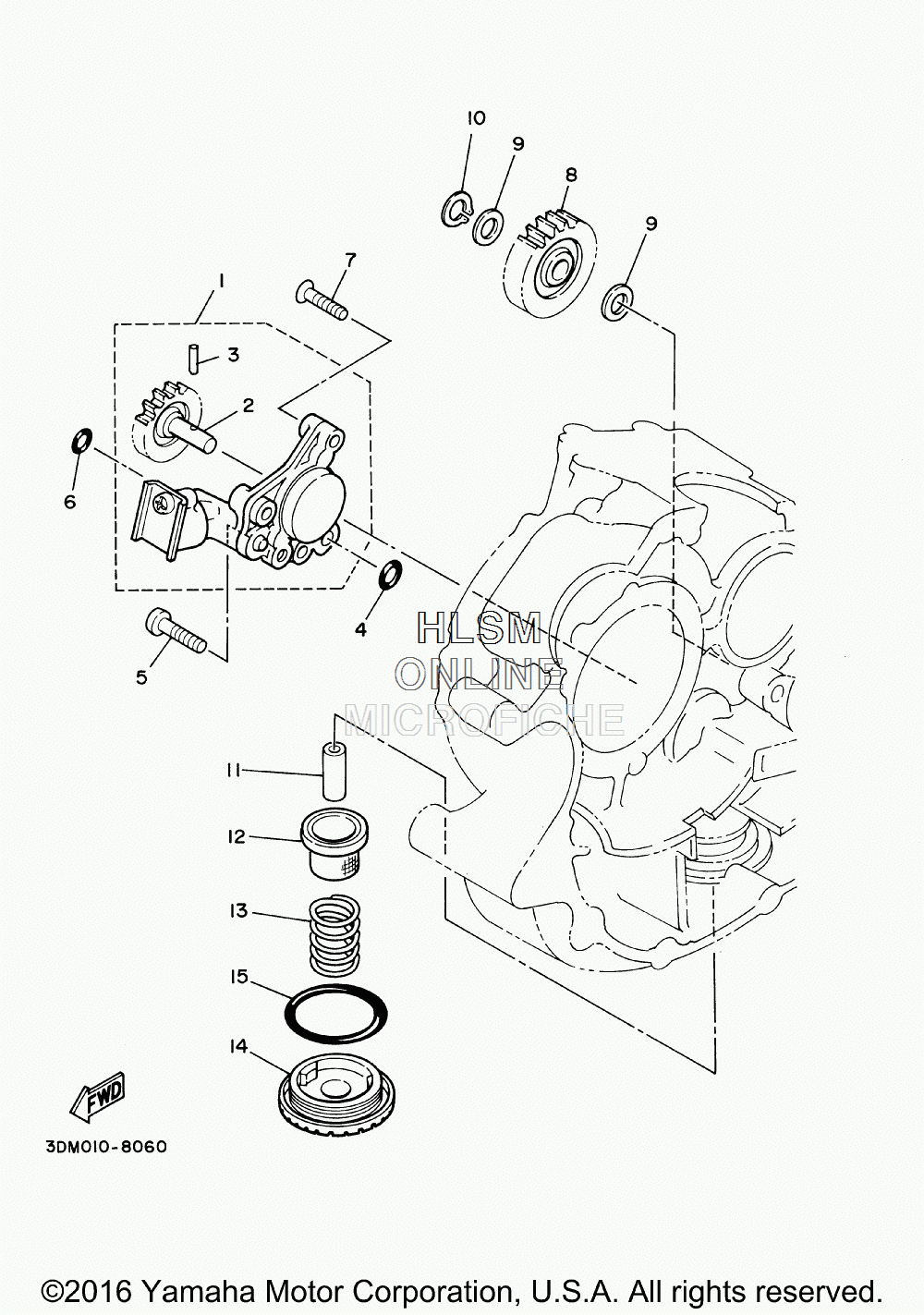

OIL PUMP для Yamaha V STAR 250 - 2017 года выпуска
-
№АртикулНазвание
-
12UJ-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
23Y6-13326-01-00 ...GEAR, PUMP DRIVEN 2 (23T)...GEAR, PUMP DRIVEN 2 (23T)
-
393603-12030-00 ...PIN, DOWEL...PIN, DOWEL
-
493210-10096-00 O-RINGO-RING
-
598507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
693210-06245-00 O-RINGO-RING
-
798707-06025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
82UJ-13341-00-00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
990201-10119-00 WASHER, PLATEWASHER, PLATE
-
1099009-10400-00 CIRCLIPCIRCLIP
-
113Y1-13416-01-00 PIPE, OIL 1PIPE, OIL 1
-
1251Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1390501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1430X-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1593210-347A1-00 O-RINGO-RING
