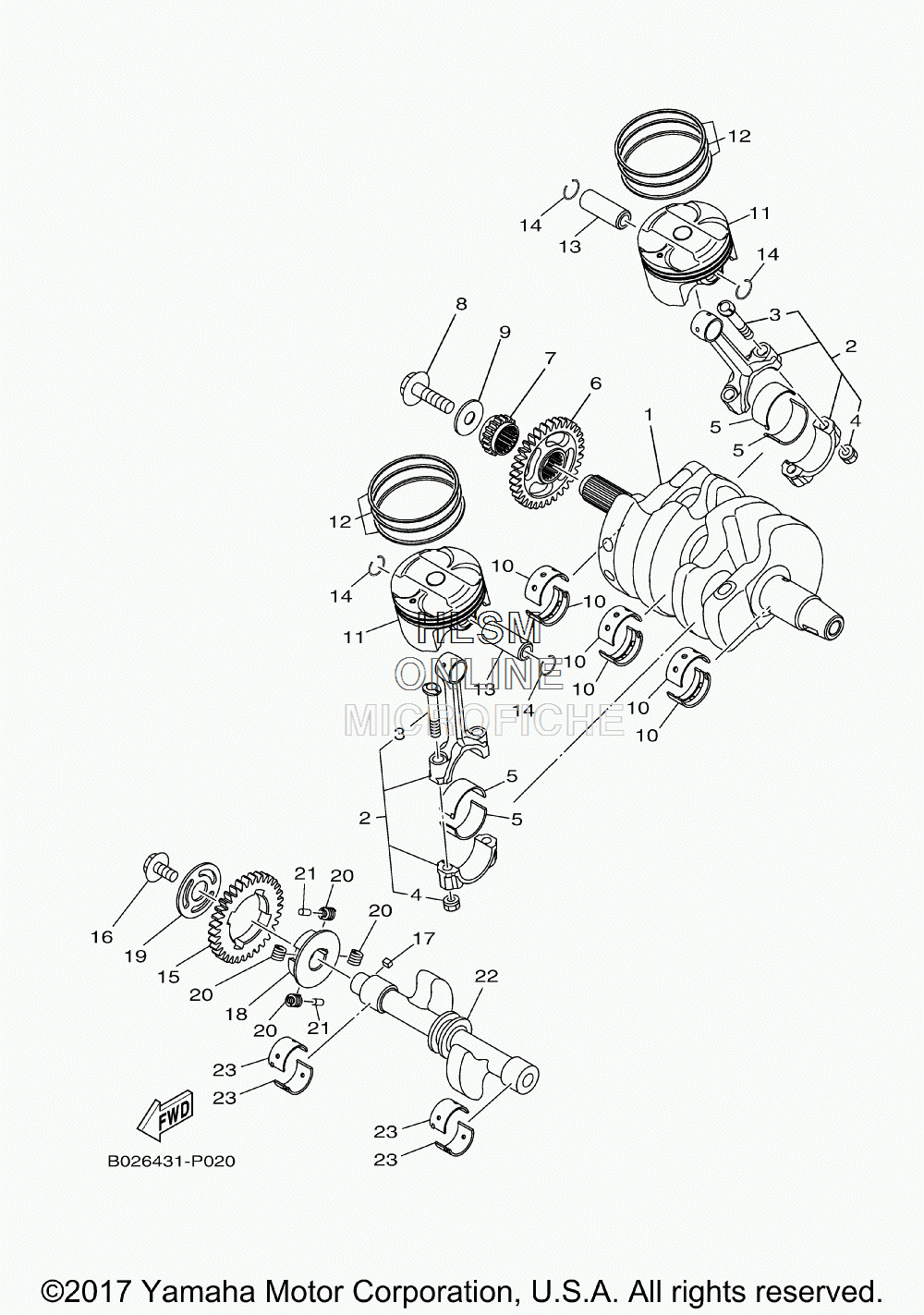

CRANKSHAFT - PISTON для Yamaha YZFR3 ABS - 2017 года выпуска

№

Артикул

Название
1

1WD-11411-00-00 CRANKSHAFT

CRANKSHAFT

55 910 ₽
2

1WD-11650-00-00 CONNECTING ROD ASSY

CONNECTING ROD ASSY

9 440 ₽
3

5SL-11654-00-00 ...BOLT, CONNECTING ROD

...BOLT, CONNECTING ROD

980 ₽
4

90179-07652-00 ...NUT

...NUT

370 ₽
5

1WD-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)

PLANE BEARING, CONNECTING ROD (BLUE)

1 170 ₽
5

1WD-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)

PLANE BEARING, CONNECTING ROD (BLACK)

1 170 ₽
5

1WD-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)

PLANE BEARING, CONNECTING ROD (GREEN)

1 170 ₽
5

1WD-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)

PLANE BEARING, CONNECTING ROD (BROWN)

1 170 ₽
6

1WD-E1536-00-00 GEAR, DRIVE

GEAR, DRIVE

8 030 ₽
7

1WD-E1549-00-00 SPROCKET, CAM CHAIN

SPROCKET, CAM CHAIN

4 250 ₽
8

90105-10883-00 BOLT, FLANGE

BOLT, FLANGE

3 300 ₽
9

90201-102R1-00 WASHER, PLATE

WASHER, PLATE

340 ₽
10

1WD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)

PLANE BEARING, CRANKSHAFT 1 (BLACK)

790 ₽
10

1WD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)

PLANE BEARING, CRANKSHAFT 1 (YELLOW)

790 ₽
10

1WD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)

PLANE BEARING, CRANKSHAFT 1 (GREEN)

790 ₽
10

1WD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)

PLANE BEARING, CRANKSHAFT 1 (BROWN)

790 ₽
10

1WD-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)

PLANE BEARING, CRANKSHAFT 1 (BLUE)

790 ₽
11

2MS-E1631-00-00 PISTON (STD)

PISTON (STD)

10 390 ₽
12

2MS-E1603-00-00 PISTON RING SET (STD)

PISTON RING SET (STD)

2 990 ₽
13

1WD-E1633-00-00 PIN, PISTON

PIN, PISTON

1 200 ₽
14

93450-16068-00 CIRCLIP

CIRCLIP

190 ₽
15

1WD-E1531-00-00 GEAR, BALANCE WEIGHT

GEAR, BALANCE WEIGHT

9 440 ₽
16

90105-088F8-00 BOLT, FLANGE

BOLT, FLANGE

1 880 ₽
17

90282-04036-00 KEY, STRAIGHT

KEY, STRAIGHT

340 ₽
18

1WD-E1496-00-00 BOSS, BUFFER

BOSS, BUFFER

4 250 ₽
19

90201-16812-00 WASHER, PLATE

WASHER, PLATE

620 ₽
20

90501-22800-00 SPRING, COMPRESSION

SPRING, COMPRESSION

190 ₽
21

93605-10090-00 PIN, DOWEL

PIN, DOWEL

320 ₽
22

1WD-E1454-00-00 WEIGHT 1

WEIGHT 1

19 680 ₽
23

1WD-11413-00-00 METAL, BALANCE WEIGHT (BLUE)

METAL, BALANCE WEIGHT (BLUE)

780 ₽
23

1WD-11413-10-00 METAL, BALANCE WEIGHT (BLACK)

METAL, BALANCE WEIGHT (BLACK)

780 ₽
23

1WD-11413-20-00 METAL, BALANCE WEIGHT (BROWN)

METAL, BALANCE WEIGHT (BROWN)

780 ₽
23

1WD-11413-30-00 METAL, BALANCE WEIGHT (GREEN)

METAL, BALANCE WEIGHT (GREEN)

780 ₽
23

1WD-11413-40-00 METAL, BALANCE WEIGHT (YELLOW)

METAL, BALANCE WEIGHT (YELLOW)

780 ₽
