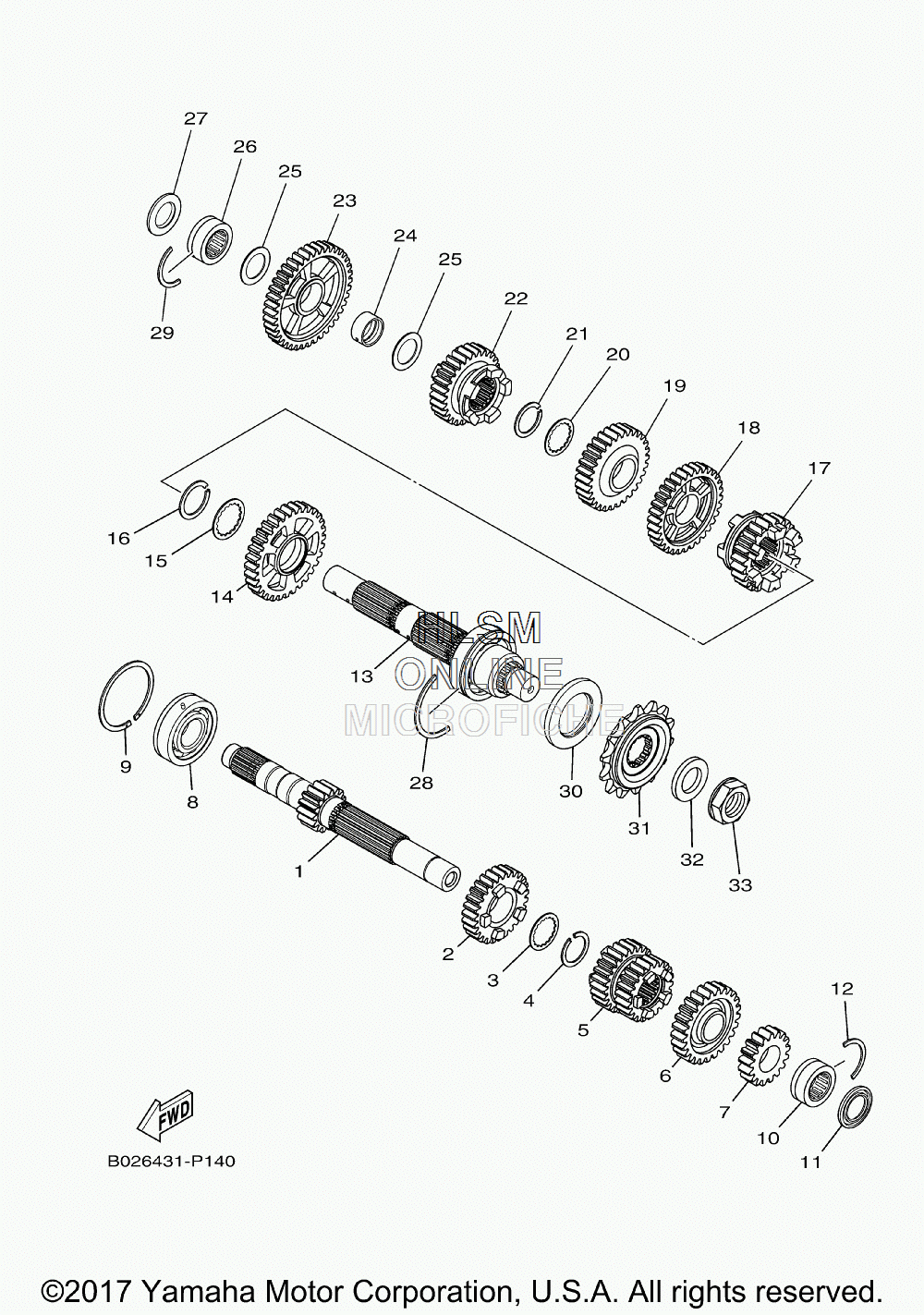

TRANSMISSION для Yamaha YZFR3 ABS - 2017 года выпуска
-
№АртикулНазвание
-
12MS-E7411-00-00 AXLE, MAIN (14T)AXLE, MAIN (14T)
-
22MS-E7151-00-00 GEAR, 5TH PINION (25T)GEAR, 5TH PINION (25T)
-
390214-22008-00 WASHER, CLAWWASHER, CLAW
-
493440-24200-00 CIRCLIPCIRCLIP
-
52MS-E7131-00-00 GEAR, 3RD PINION (23T/23T)GEAR, 3RD PINION (23T/23T)
-
62MS-E7161-00-00 GEAR, 6TH PINION (30T)GEAR, 6TH PINION (30T)
-
72MS-E7121-00-00 GEAR, 2ND PINION (17T)GEAR, 2ND PINION (17T)
-
893306-255Y9-00 BEARINGBEARING
-
993440-52009-00 CIRCLIPCIRCLIP
-
1093311-420Y3-00 BEARINGBEARING
-
1193101-20802-00 OIL SEALOIL SEAL
-
12278-17425-00-00 CIRCLIP 2CIRCLIP 2
-
131WD-E7402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
142MS-E7221-00-00 GEAR, 2ND WHEEL (31T)GEAR, 2ND WHEEL (31T)
-
1590209-25011-00 WASHERWASHER
-
1693440-28184-00 CIRCLIPCIRCLIP
-
172MS-E7261-00-00 GEAR, 6TH WHEEL (24T)GEAR, 6TH WHEEL (24T)
-
182MS-E7231-00-00 GEAR, 3RD WHEEL (31T)GEAR, 3RD WHEEL (31T)
-
192MS-E7241-00-00 GEAR, 4TH WHEEL (25T)GEAR, 4TH WHEEL (25T)
-
2090214-22008-00 WASHER, CLAWWASHER, CLAW
-
2193440-24200-00 CIRCLIPCIRCLIP
-
222MS-E7251-00-00 GEAR, 5TH WHEEL (23T)GEAR, 5TH WHEEL (23T)
-
232MS-E7211-00-00 GEAR, 1ST WHEEL (35T)GEAR, 1ST WHEEL (35T)
-
2490387-20814-00 COLLARCOLLAR
-
2590201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2693311-420Y3-00 BEARINGBEARING
-
2793101-20802-00 OIL SEALOIL SEAL
-
281WD-17424-00-00 CIRCLIP 1CIRCLIP 1
-
29278-17425-00-00 CIRCLIP 2CIRCLIP 2
-
3093102-35803-00 OIL SEALOIL SEAL
-
311WD-E7460-00-00 SPROCKET, DRIVE (14T)SPROCKET, DRIVE (14T)
-
3290201-20023-00 WASHER, PLATEWASHER, PLATE
-
3390179-20013-00 NUTNUT
