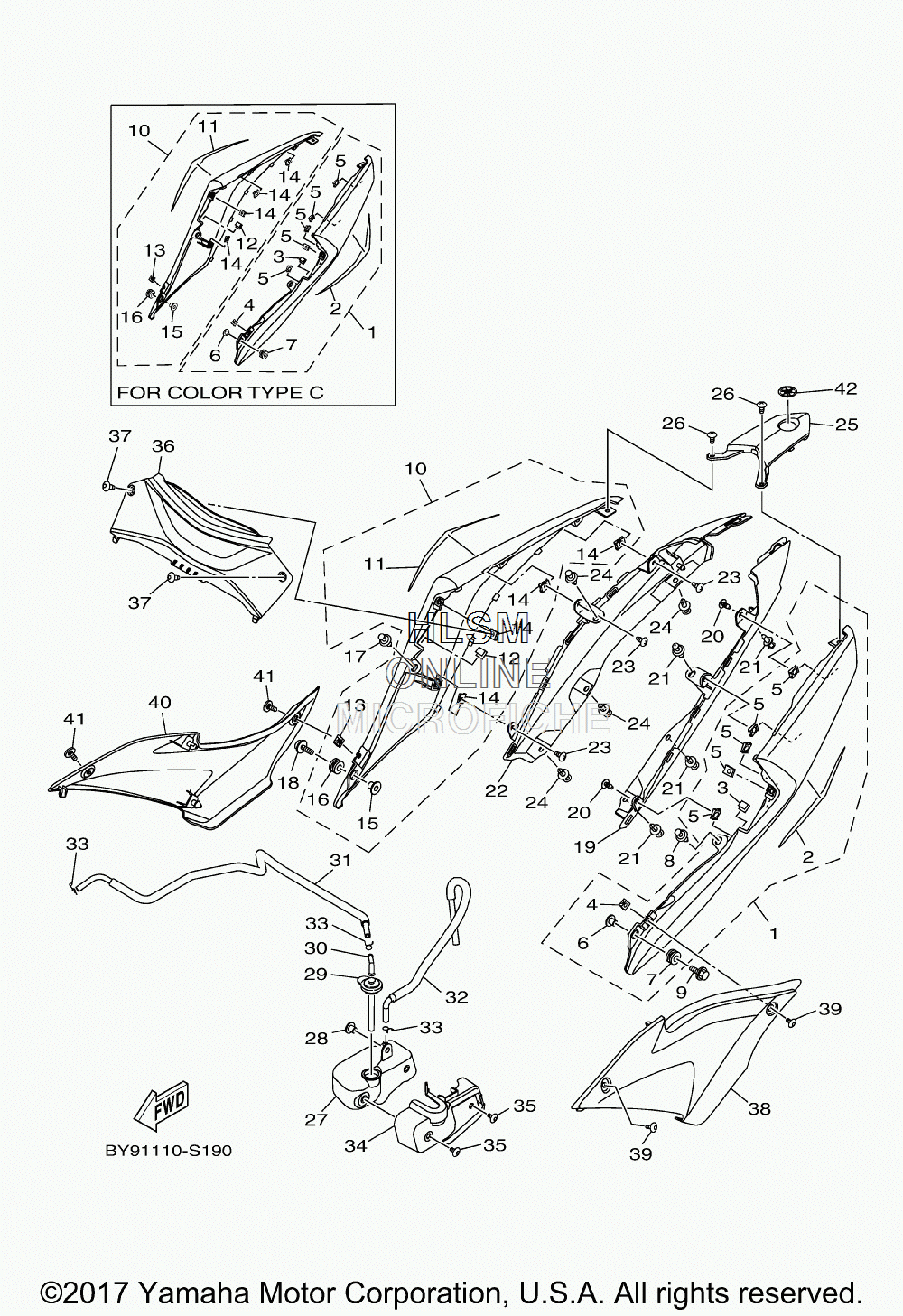

SIDE COVER для Yamaha YZFR3 ABS - 2017 года выпуска
-
№АртикулНазвание
-
11WD-XF171-00-P6 COVER, SIDE 1 (MBL2 - MAT BLACK)COVER, SIDE 1 (MBL2 - MAT BLACK)
-
11WD-XF171-50-P0 COVER, SIDE 1 (SMX -BLACK METALLIC FOR WM6 - WHILTE METALLIC)COVER, SIDE 1 (SMX -BLACK METALLIC FOR WM6 - WHILTE METALLIC)
-
21WD-F17F1-C0-00 ......GRAPHIC, 1 (WM6 - WHILTE METALLIC)......GRAPHIC, 1 (WM6 - WHILTE METALLIC)
-
21WD-F17F1-B0-00 ......GRAPHIC, 1 (MBL2 - MAT BLACK)......GRAPHIC, 1 (MBL2 - MAT BLACK)
-
331B-F8307-00-00 ...SEAL...SEAL
-
490183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
590183-05807-00 ...NUT, SPRING...NUT, SPRING
-
690387-06899-00 ...COLLAR...COLLAR
-
790480-12808-00 ...GROMMET...GROMMET
-
890269-06081-00 RIVETRIVET
-
990119-06810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
101WD-XF172-00-P6 COVER, SIDE 2 (MBL2 - MAT BLACK)COVER, SIDE 2 (MBL2 - MAT BLACK)
-
101WD-XF172-50-P0 COVER, SIDE 2 (SMX -BLACK METALLIC FOR WM6 - WHILTE METALLIC)COVER, SIDE 2 (SMX -BLACK METALLIC FOR WM6 - WHILTE METALLIC)
-
111WD-F17F2-C0-00 ......GRAPHIC, 2 (WM6 - WHILTE METALLIC)......GRAPHIC, 2 (WM6 - WHILTE METALLIC)
-
111WD-F17F2-B0-00 ......GRAPHIC, 2 (MBL2 - MAT BLACK)......GRAPHIC, 2 (MBL2 - MAT BLACK)
-
1231B-F8307-00-00 ...SEAL...SEAL
-
1390183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1490183-05807-00 ...NUT, SPRING...NUT, SPRING
-
1590387-06899-00 ...COLLAR...COLLAR
-
1690480-12808-00 ...GROMMET...GROMMET
-
1790269-06081-00 RIVETRIVET
-
1890119-06810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
191WD-F171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
2097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2190269-06081-00 RIVETRIVET
-
221WD-F171M-00-00 MOLE, SIDE COVER 2MOLE, SIDE COVER 2
-
2397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2490269-06081-00 RIVETRIVET
-
251WD-F171N-00-00 MOLE, SIDE COVER 3MOLE, SIDE COVER 3
-
2697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
271WD-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
2890387-06857-00 COLLARCOLLAR
-
291WD-F1875-00-00 CAPCAP
-
303C1-F1828-00-00 ELBOWELBOW
-
311WD-F1816-00-00 PIPE 1PIPE 1
-
321WD-F1817-00-00 PIPE 2PIPE 2
-
3390467-08003-00 CLIPCLIP
-
341WD-F172W-00-00 COVERCOVER
-
3590111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
361WD-F1731-00-P4 COVER, SIDE 3 (MBL2 - MAT BLACK)COVER, SIDE 3 (MBL2 - MAT BLACK)
-
361WD-F1731-00-P0 COVER SIDE 3 (SMX -BLACK METALLIC FOR WM6 - WHILTE METALLIC)COVER SIDE 3 (SMX -BLACK METALLIC FOR WM6 - WHILTE METALLIC)
-
3790160-05810-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
381WD-F171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
3990111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
401WD-F171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
4190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
421PA-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
