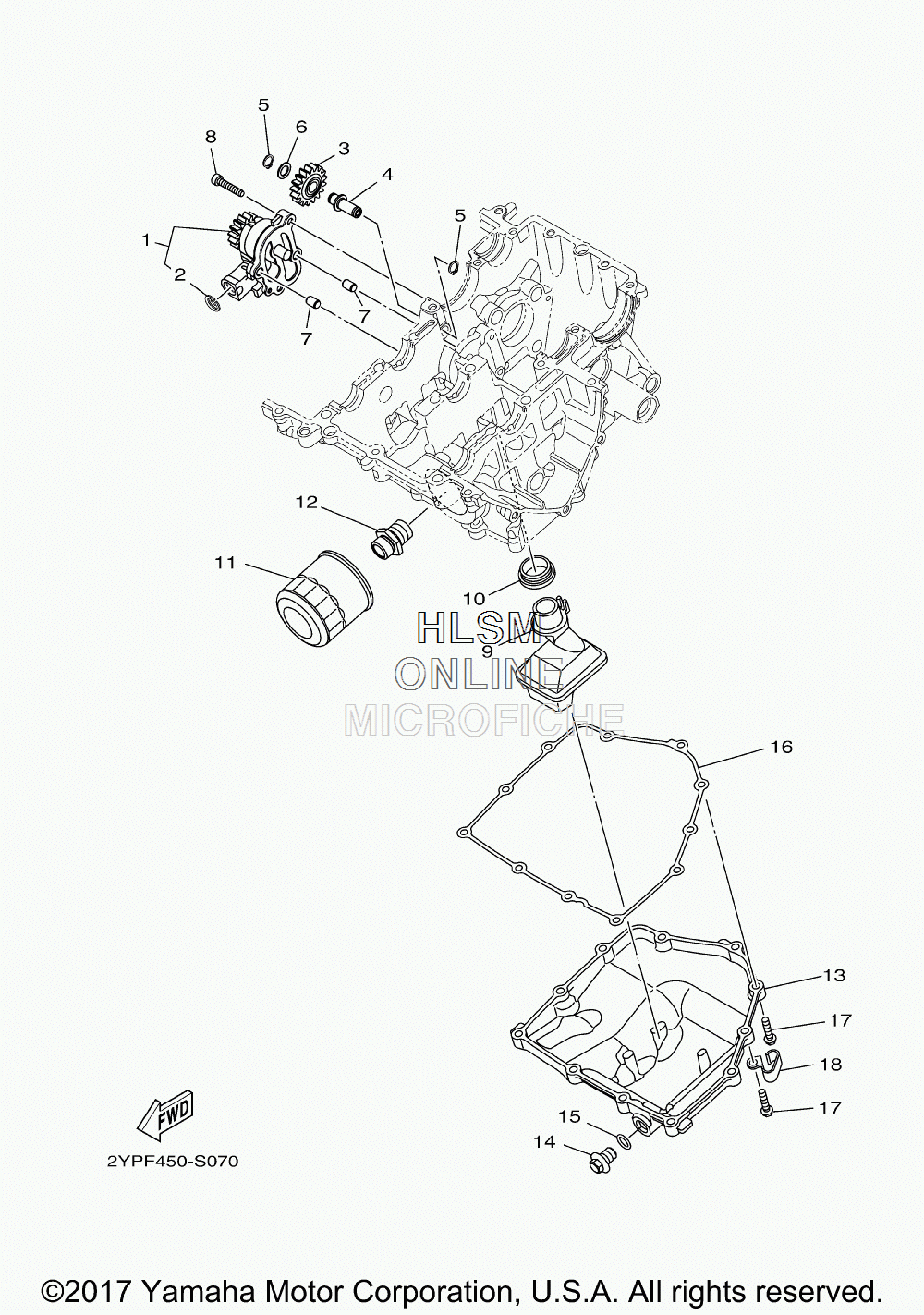

OIL PUMP для Yamaha YZFR3 ABS - 2017 года выпуска
-
№АртикулНазвание
-
11WD-E3300-01-00 OIL PUMP ASSYOIL PUMP ASSY
-
299009-15500-00 ...CIRCLIP...CIRCLIP
-
31WD-E3341-00-00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
41WD-E3342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
599009-10400-00 CIRCLIPCIRCLIP
-
690201-10119-00 WASHER, PLATEWASHER, PLATE
-
799530-08012-00 PIN, DOWELPIN, DOWEL
-
891312-06030-00 BOLTBOLT
-
91WD-E3410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
101WD-E3415-00-00 SEAL, OIL STRAINERSEAL, OIL STRAINER
-
111WD-E3440-10-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
1290401-20008-00 BOLT, UNIONBOLT, UNION
-
131WD-E3417-00-00 COVER, STRAINERCOVER, STRAINER
-
1490340-12808-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
154YS-E1198-00-00 GASKETGASKET
-
161WD-E3414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1795022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1890462-08810-00 CLAMPCLAMP
