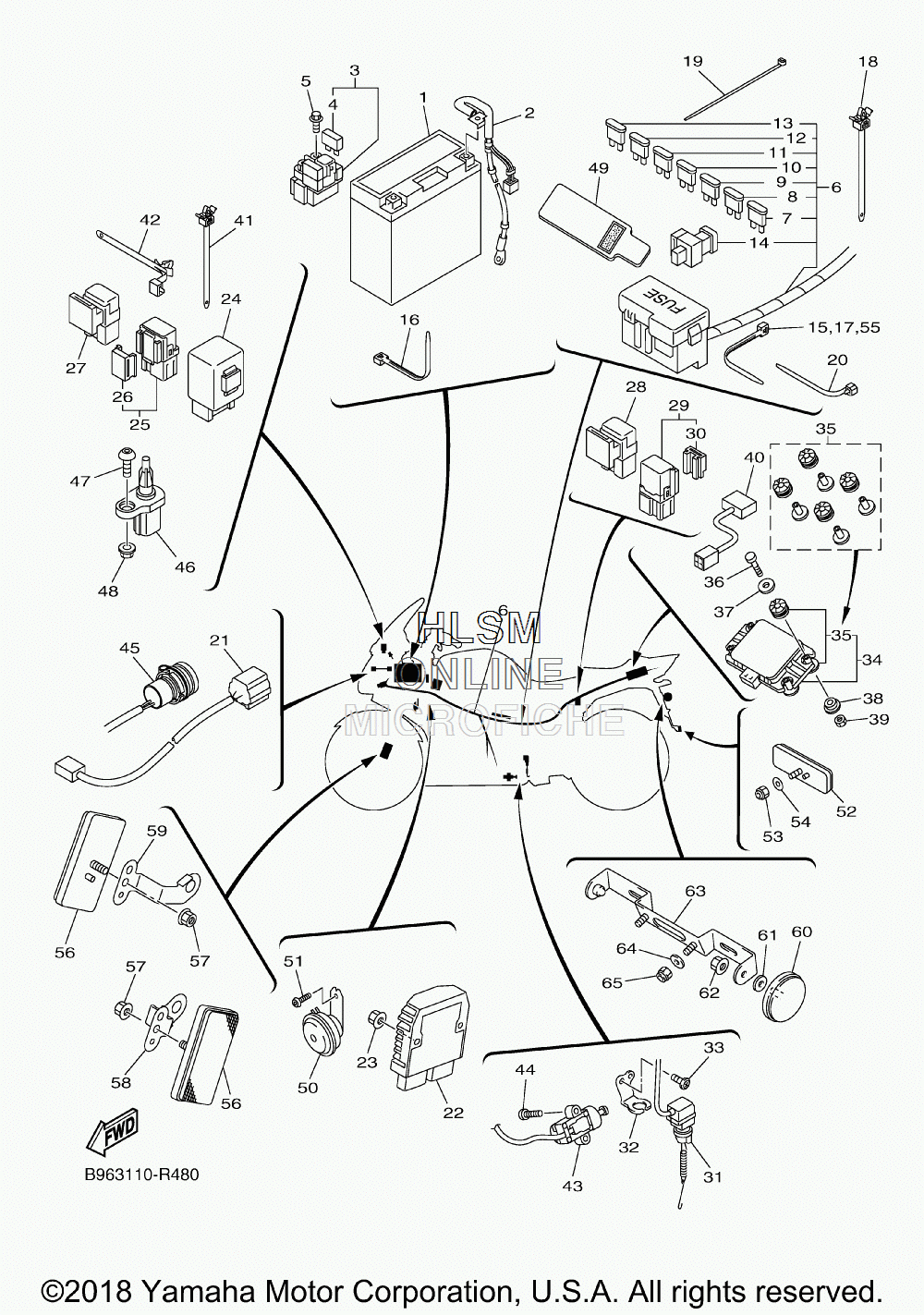

ELECTRICAL 2 для Yamaha FJR 1300ES - 2018 года выпуска
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
21MC-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
33D7-81940-00-00 STARTER RELAY ASSY (RC19-076A)STARTER RELAY ASSY (RC19-076A)
-
41AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
6B96-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
75JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
85JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
95JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
105JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
115JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
125JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
131MC-82151-00-00 ...FUSE (1A-BL)...FUSE (1A-BL)
-
145JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
151UA-82591-00-00 BANDBAND
-
1690465-10098-00 CLAMPCLAMP
-
171UA-82591-00-00 BANDBAND
-
1890464-12036-00 CLAMPCLAMP
-
195Y9-12491-00-00 CLAMP 1CLAMP 1
-
2090464-13073-00 CLAMPCLAMP
-
211MC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
221D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
245VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
251ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
265JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
275DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
285DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
291TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
305EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
311MC-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
321MC-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3398902-05008-00 SCREW, BINDSCREW, BIND
-
34B95-8593A-00-00 INERTIAL MEASURE, UNIT ASSYINERTIAL MEASURE, UNIT ASSY
-
352CR-W8A8D-00-00 ...GROMMET AND COLLAR SET...GROMMET AND COLLAR SET
-
3691312-04025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
372CR-81162-00-00 WASHER, PLAINWASHER, PLAIN
-
3890387-05058-00 COLLARCOLLAR
-
3995602-04100-00 NUT, UNUT, U
-
40B95-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4190464-12036-00 CLAMPCLAMP
-
4290464-20213-00 CLAMPCLAMP
-
431MC-82566-01-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4490157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
453P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
465YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4792012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4895702-05500-00 NUT, FLANGENUT, FLANGE
-
492D1-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
50B88-83371-00-00 HORNHORN
-
5192012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
523Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5395602-05100-00 NUT, UNUT, U
-
5490201-05043-00 WASHER, PLATEWASHER, PLATE
-
551UA-82591-00-00 BANDBAND
-
5611H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
5795702-05500-00 NUT, FLANGENUT, FLANGE
-
582PD-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
592PD-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
60449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
6190201-05036-00 WASHER, PLATEWASHER, PLATE
-
6295702-05500-00 NUT, FLANGENUT, FLANGE
-
63B88-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
6490201-06076-00 WASHER, PLATEWASHER, PLATE
-
6595602-06100-00 NUT, S/LNUT, S/L
