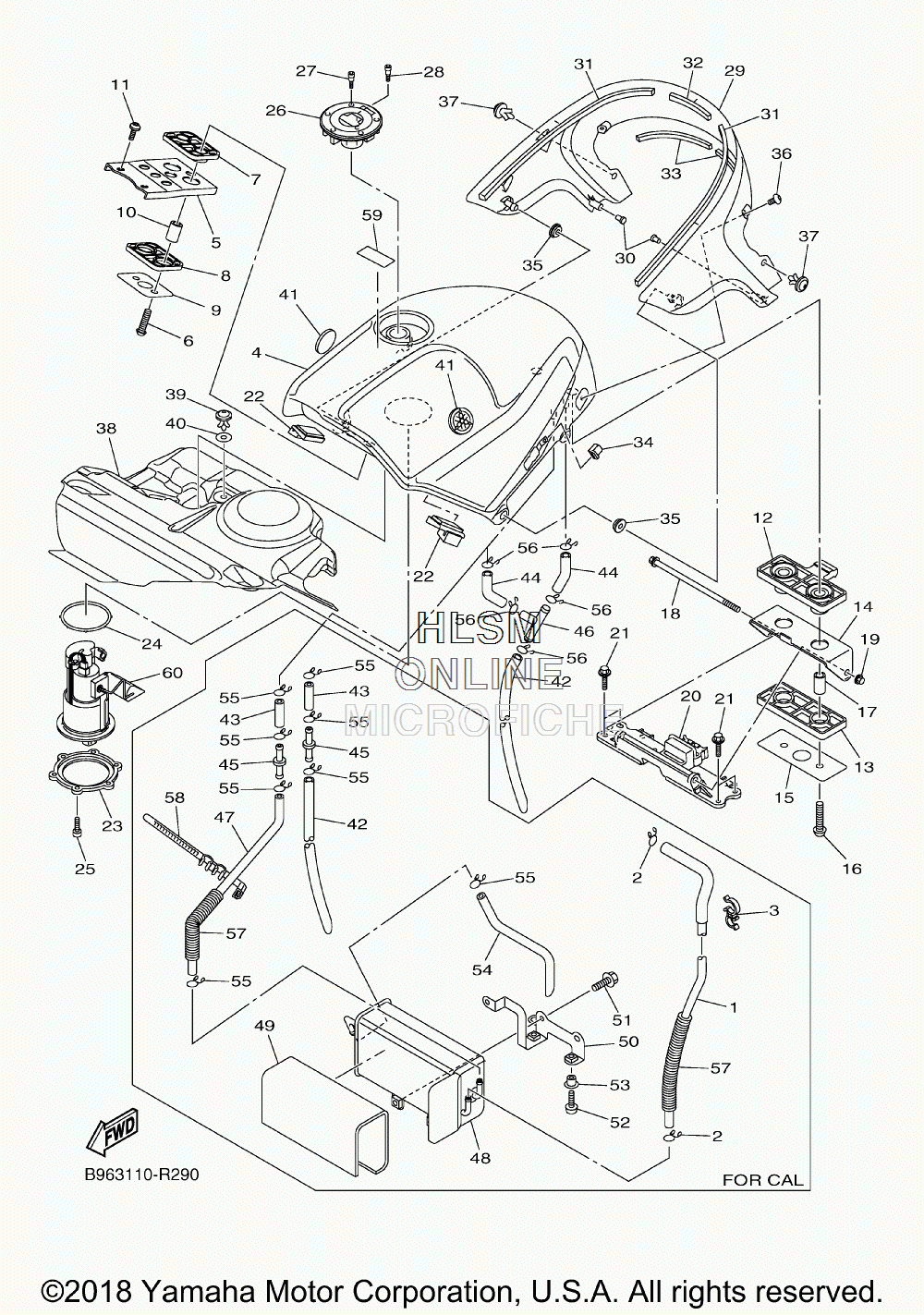

FUEL TANK для Yamaha FJR 1300ES - 2018 года выпуска
-
№АртикулНазвание
-
11MC-1443J-10-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
290467-100A1-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
390464-28153-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
43P6-24110-00-PF FUEL TANK COMP.FUEL TANK COMP.
-
55JW-24191-20-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
692012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
75JW-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
85JW-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
95JW-24187-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1090387-0813V-00 COLLARCOLLAR
-
1190149-06302-00 SCREWSCREW
-
123P6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
135JW-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
145JW-24192-01-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
155JW-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1692012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790387-0813V-00 COLLARCOLLAR
-
1895812-08160-00 BOLT, FLANGEBOLT, FLANGE
-
1995702-08500-00 NUT, FLANGENUT, FLANGE
-
203P6-21348-00-00 BRACKT, TANK FITTINGBRACKT, TANK FITTING
-
2195822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
223P6-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
231MC-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2419B-24486-01-00 O-RINGO-RING
-
2590110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2639P-24602-10-00 CAP ASSYCAP ASSY
-
2790110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2891312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
293P6-24129-10-P0 COVER, SIDE 1 (SMX - BLACK METALLIC)COVER, SIDE 1 (SMX - BLACK METALLIC)
-
3090338-06018-00 PLUGPLUG
-
313P6-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
323P6-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
332D1-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
345PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
3590480-01558-00 GROMMETGROMMET
-
3690111-05023-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3790269-06081-00 RIVETRIVET
-
381MC-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
3990269-06081-00 RIVETRIVET
-
4090202-06008-00 WASHER, PLATEWASHER, PLATE
-
411RC-2413B-00-00 EMBLEMEMBLEM
-
4290445-11036-00 HOSEHOSE
-
4390445-11066-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
4490445-11763-00 HOSE (L45)HOSE (L45)
-
454XY-14568-00-00 JOINT (CALIF ONLY)JOINT (CALIF ONLY)
-
4690413-07007-00 WAY 3WAY 3
-
47B88-24312-10-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
483P6-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
493P6-2414E-00-00 SEAL 2 (CALIF ONLY)SEAL 2 (CALIF ONLY)
-
50B88-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
5195804-06012-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
5292014-06012-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
5390387-0603J-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
543P6-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
5590467-100A1-00 CLIPCLIP
-
5690467-100A1-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
573P6-2432A-00-00 PROTECTOR, PIPE 2 (CALIF ONLY)PROTECTOR, PIPE 2 (CALIF ONLY)
-
5890464-10009-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
591TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
605JW-13907-22-00 FUEL PUMP COMP.FUEL PUMP COMP.
