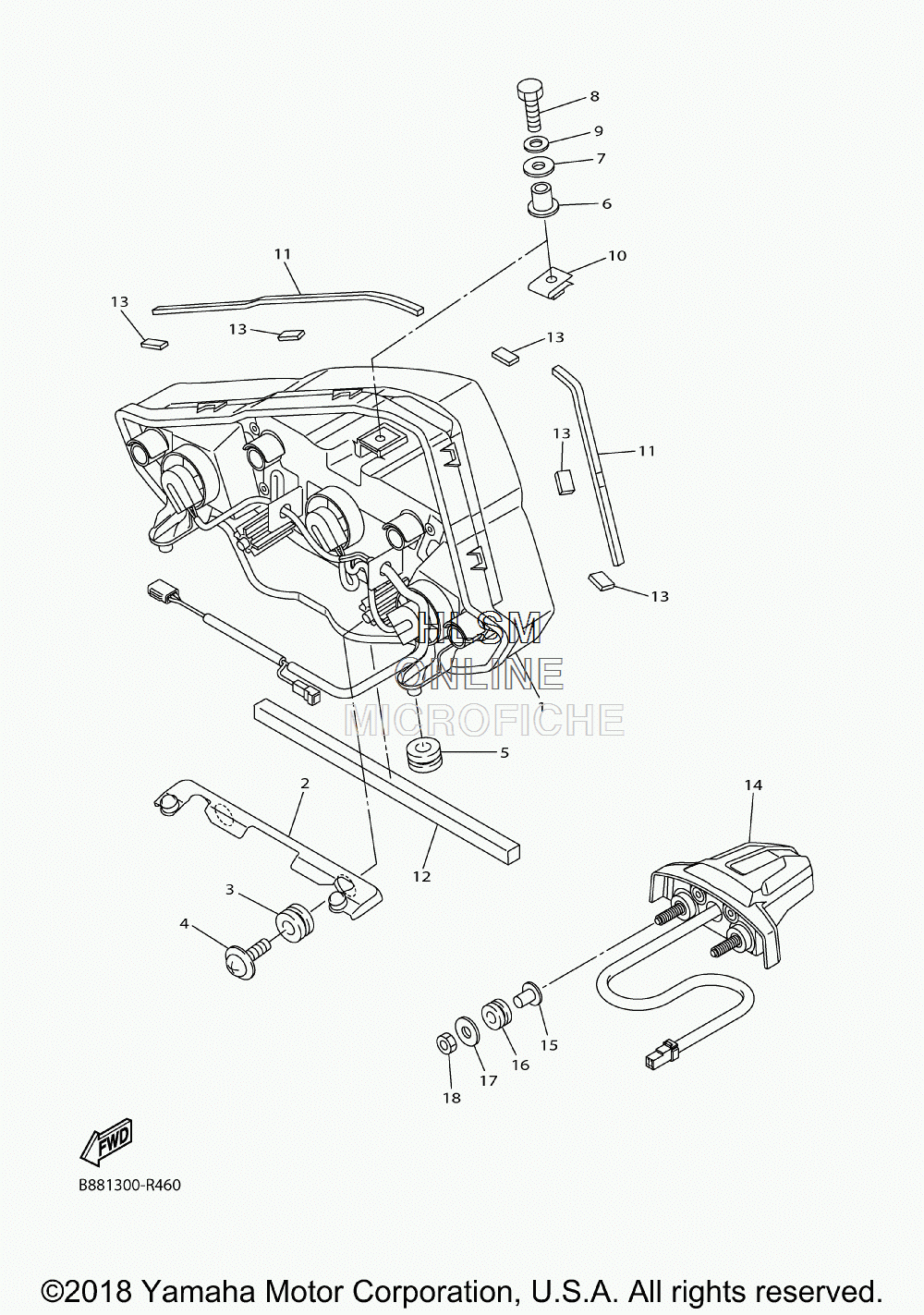

TAILLIGHT для Yamaha FJR 1300ES - 2018 года выпуска
-
№АртикулНазвание
-
1B88-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
23P6-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
390480-18276-00 GROMMETGROMMET
-
490164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
54XV-83513-00-00 DAMPERDAMPER
-
690387-07391-00 COLLARCOLLAR
-
790201-06035-00 WASHER, PLATEWASHER, PLATE
-
897012-06025-00 BOLTBOLT
-
992902-06600-00 WASHER, PLATEWASHER, PLATE
-
1090183-060A7-00 NUT, SPRINGNUT, SPRING
-
1190520-05013-00 DAMPER, PLATEDAMPER, PLATE
-
122D1-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
132C0-2847N-00-00 DAMPER 8DAMPER 8
-
14B88-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
1590387-05003-00 COLLARCOLLAR
-
1690480-11008-00 GROMMETGROMMET
-
1790201-05043-00 WASHER, PLATEWASHER, PLATE
-
1895602-05100-00 NUT, UNUT, U
