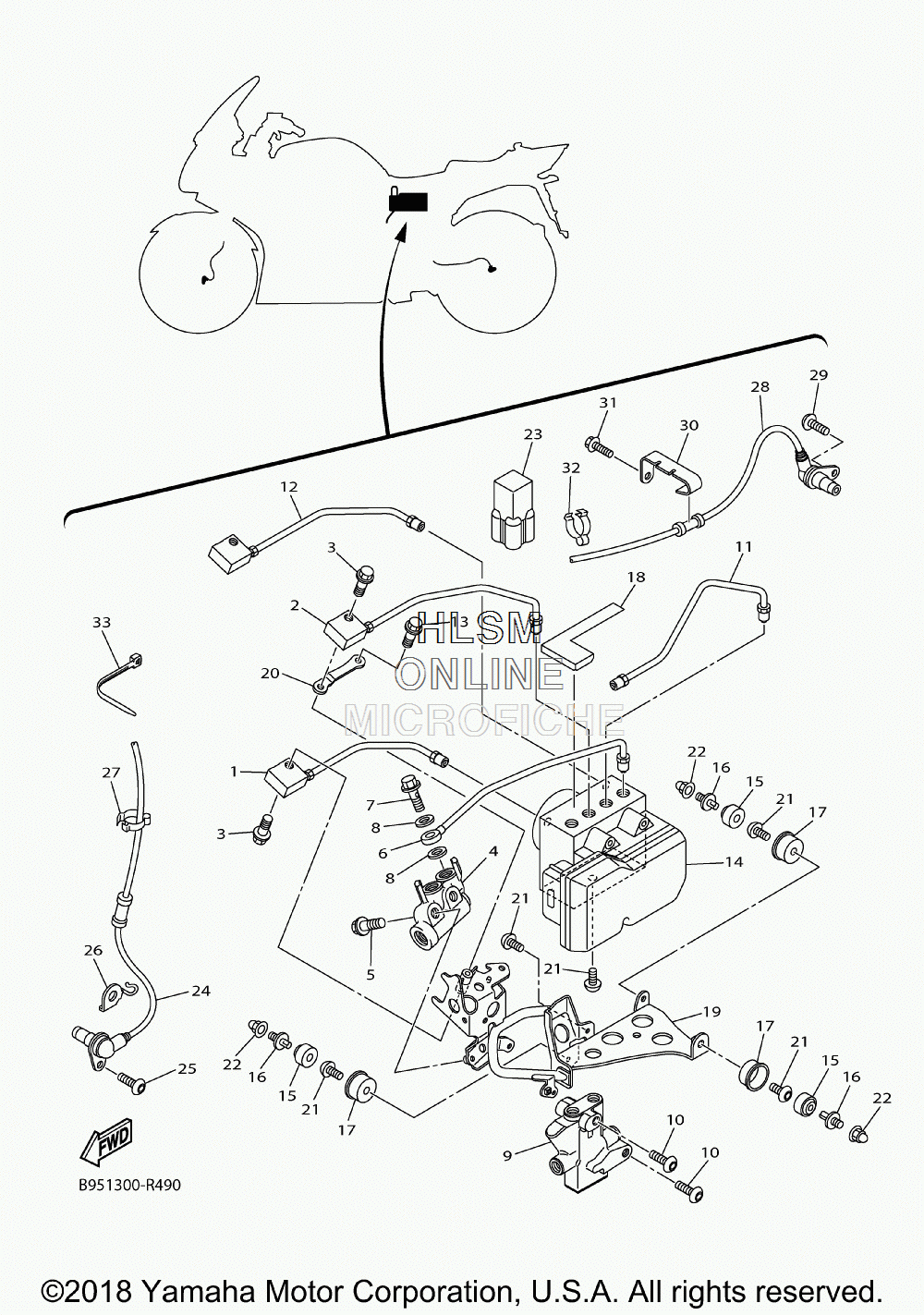

ELECTRICAL 3 для Yamaha FJR 1300ES - 2018 года выпуска
-
№АртикулНазвание
-
13P6-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
23P6-25882-20-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
43P6-25940-00-00 METERING VALVE ASSYMETERING VALVE ASSY
-
595802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
63P6-2588A-10-00 PIPE, BRAKE 4PIPE, BRAKE 4
-
790401-10020-00 BOLT, UNIONBOLT, UNION
-
890430-10005-00 GASKETGASKET
-
93P6-25884-00-00 VALVE, PROPORTIONINGVALVE, PROPORTIONING
-
1092012-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
113P6-2588B-00-00 PIPE, BRAKE 5PIPE, BRAKE 5
-
123P6-25883-20-00 PIPE, BRAKE 3PIPE, BRAKE 3
-
1395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
141MC-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
155CG-85113-00-00 DAMPERDAMPER
-
165CG-2535E-00-00 BOLTBOLT
-
173P6-85916-00-00 CAP, DAMPERCAP, DAMPER
-
183P6-2117G-00-00 PROTECTORPROTECTOR
-
191MD-2175T-00-00 BRACKET 1BRACKET 1
-
203P6-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
2192012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2290176-08005-00 NUT, CROWNNUT, CROWN
-
233YA-82378-00-00 CONNECTORCONNECTOR
-
241MD-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
2592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
261MD-23317-00-00 HOLDER, CABLEHOLDER, CABLE
-
2790464-14003-00 CLAMPCLAMP
-
283P6-85980-10-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
2992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
303P6-86159-00-00 HOLDER, WIREHOLDER, WIRE
-
3190105-05014-00 BOLT, FLANGEBOLT, FLANGE
-
3290464-12013-00 CLAMPCLAMP
-
3390465-10098-00 CLAMPCLAMP
