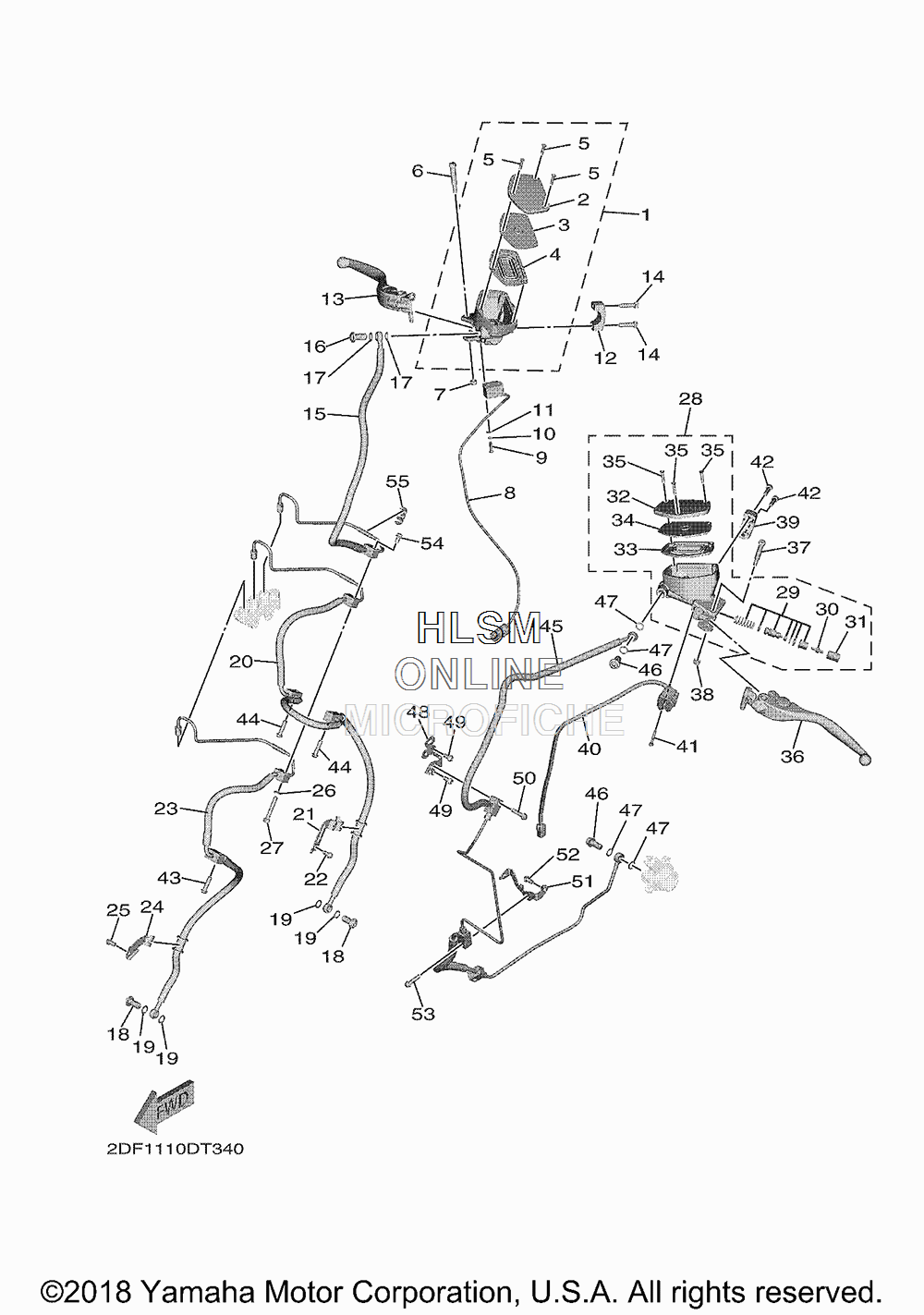

BRAKE - FRONT MASTER CYLINDER для Yamaha STAR ELUDER (SILVER) - 2018 года выпуска
-
№АртикулНазвание
-
12DF-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
22DF-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
32DF-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
42DF-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
52DF-2589H-00-00 ...SCREW...SCREW
-
62DF-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
795604-06100-00 NUT, UNUT, U
-
82DF-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
998502-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092907-04100-00 WASHER, SPRINGWASHER, SPRING
-
1192907-04600-00 WASHERWASHER
-
124NK-25867-20-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
132DF-83922-10-00 LEVER 2LEVER 2
-
1491314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
152DF-2584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
1690401-10172-00 BOLT, UNIONBOLT, UNION
-
1790430-10005-00 GASKETGASKET
-
1890401-10172-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
202DF-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
212DF-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2292017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
232DF-2584C-00-00 HOSE, BRAKEHOSE, BRAKE
-
242DF-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2592017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2692907-06600-00 WASHER, PLATEWASHER, PLATE
-
2790110-06149-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
282DF-26401-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
292DF-26402-00-00 ...CYLINDER KIT, MASTER (CLUTCH...CYLINDER KIT, MASTER (CLUTCH
-
301D7-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
313GM-26455-00-00 ...BUSH...BUSH
-
322DF-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
332DF-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
342DF-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
352DF-2589H-00-00 ...SCREW...SCREW
-
362DF-83912-10-00 LEVER 1LEVER 1
-
372DF-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
3895604-06100-00 NUT, UNUT, U
-
394NK-25867-20-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
402DF-82917-00-00 SWITCHSWITCH
-
4190159-04011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4291314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4392017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4492017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
452DF-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
4690401-10172-00 BOLT, UNIONBOLT, UNION
-
4790430-10005-00 GASKETGASKET
-
482DF-26296-00-00 BRACKETBRACKET
-
4992017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5095027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
512DF-26292-00-00 STAYSTAY
-
5292017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5395027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
5495027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5590464-07003-00 CLAMPCLAMP
