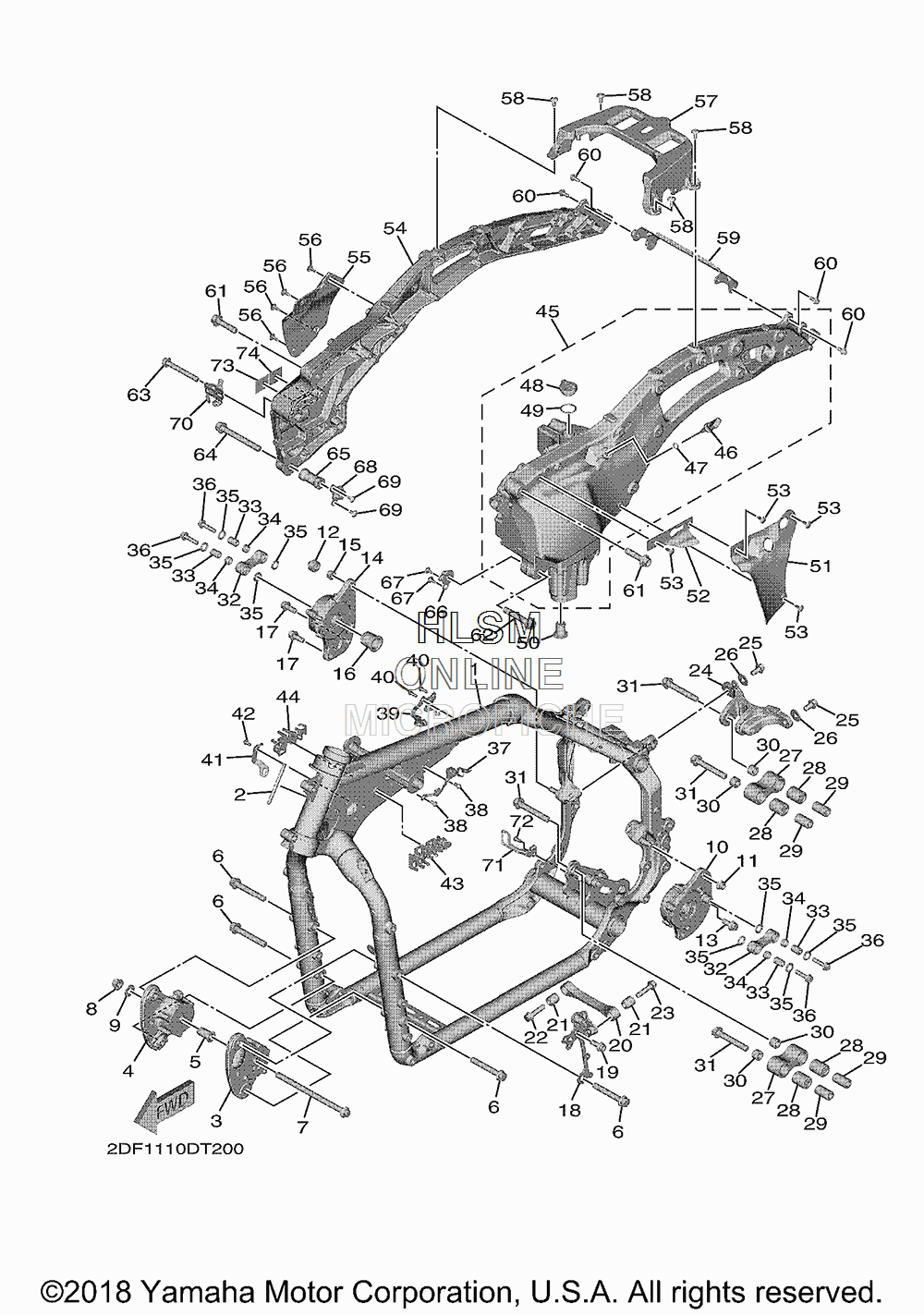

FRAME для Yamaha STAR ELUDER (SILVER) - 2018 года выпуска
-
№АртикулНазвание
-
12DF-21110-00-00 FRAME COMP.FRAME COMP.
-
23D8-2117G-00-00 PROTECTORPROTECTOR
-
32DF-2140X-00-00 ENGINE BRACKET SUB-COMP. 1ENGINE BRACKET SUB-COMP. 1
-
42DF-2140Y-00-00 ENGINE BRACKET SUB-COMP. 2ENGINE BRACKET SUB-COMP. 2
-
52DF-2149C-00-00 BOLTBOLT
-
690105-12102-00 BOLT, FLANGEBOLT, FLANGE
-
790105-12026-00 BOLT, FLANGEBOLT, FLANGE
-
895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-126A7-00 WASHER, PLATEWASHER, PLATE
-
102DF-21410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
1195607-10200-00 NUT, U FLANGENUT, U FLANGE
-
125YU-2143A-00-00 CAPCAP
-
1390105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
142DF-21420-00-00 ENGINE BRACKET COMP. 2ENGINE BRACKET COMP. 2
-
1595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
162DF-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1790105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
182DF-2145B-00-00 PLATE, ENGINE MOUNTPLATE, ENGINE MOUNT
-
1990105-10475-00 BOLT, FLANGEBOLT, FLANGE
-
202DF-21319-00-00 STAY, ENGINE 6STAY, ENGINE 6
-
2190388-10003-00 DAMPERDAMPER
-
2290105-10463-00 BOLT, FLANGEBOLT, FLANGE
-
2395D32-10040-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
242DF-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2590105-10477-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-10065-00 WASHER, PLATEWASHER, PLATE
-
272DF-21387-00-00 STAY, ENGINE 7STAY, ENGINE 7
-
2893315-32075-00 BEARINGBEARING
-
2990387-12604-00 COLLARCOLLAR
-
3090387-12607-00 COLLARCOLLAR
-
3190105-12102-00 BOLT, FLANGEBOLT, FLANGE
-
322DF-2118W-00-00 STOPPERSTOPPER
-
3390387-08102-00 COLLARCOLLAR
-
3490383-14004-00 BUSH, FORMEDBUSH, FORMED
-
3593109-14001-00 OIL SEALOIL SEAL
-
3690105-08254-00 BOLT, FLANGEBOLT, FLANGE
-
372DF-2117A-00-00 STAYSTAY
-
3892017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
392DF-2116J-00-00 BRACKET 7BRACKET 7
-
4092012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
412DF-2116K-00-00 BRACKET 8BRACKET 8
-
4292017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
432DF-2117R-00-00 COVER 4COVER 4
-
442DF-2117Y-00-00 COVER 10COVER 10
-
452DF-2110C-00-00 BACK STAY COMP. , 1BACK STAY COMP. , 1
-
462DF-15362-00-00 ...PLUG, OIL LEVEL...PLUG, OIL LEVEL
-
4793210-09165-00 ...O-RING...O-RING
-
483F9-15362-10-00 ...PLUG, OIL LEVEL...PLUG, OIL LEVEL
-
4993210-27778-00 ...O-RING...O-RING
-
502DF-13421-00-00 STRAINER 2STRAINER 2
-
512DF-2117T-00-00 COVER 5COVER 5
-
522DF-2117N-00-00 COVER 3COVER 3
-
5390269-05073-00 RIVETRIVET
-
542DF-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
552DF-2117U-00-00 COVER 6COVER 6
-
5690269-05073-00 RIVETRIVET
-
572DF-21131-00-00 BRACKETBRACKET
-
5890111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
592DF-2115L-00-00 BRACKET, MEMBER 1BRACKET, MEMBER 1
-
6090110-06107-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6190105-12115-00 BOLT, FLANGEBOLT, FLANGE
-
6290105-12116-00 BOLT, FLANGEBOLT, FLANGE
-
6390110-10047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6490105-12117-00 BOLT, FLANGEBOLT, FLANGE
-
652DF-2115H-00-00 BOSSBOSS
-
662DF-2119W-00-00 BRACKET, LH.BRACKET, LH.
-
6790111-05049-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
682DF-2119V-00-00 BRACKETBRACKET
-
6990111-05049-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
702DF-2116M-00-00 BRACKET 10BRACKET 10
-
712DF-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
7292017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
732DF-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
7434B-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
