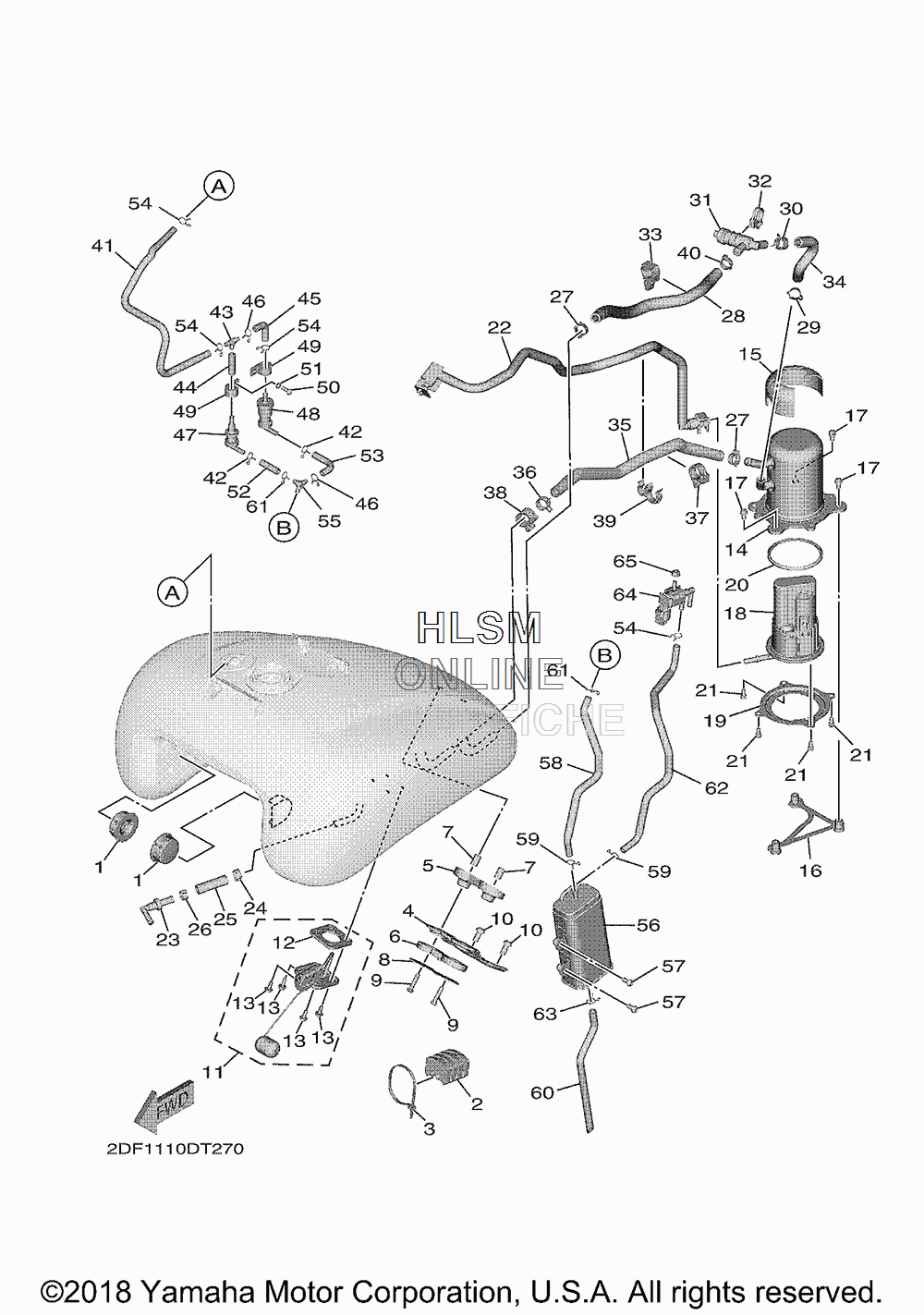

FUEL TANK - FUEL PUMP для Yamaha STAR ELUDER (SILVER) - 2018 года выпуска
-
№АртикулНазвание
-
12YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
22DF-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
390464-80002-00 CLAMPCLAMP
-
42DF-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
52DF-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
62DF-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
790387-06553-00 COLLARCOLLAR
-
82DF-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
992012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1092012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
112DF-85701-00-00 SENDER ASSYSENDER ASSY
-
125G3-85753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
-
1390119-05071-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
142DF-244A0-00-00 PUMP CASE COMP.PUMP CASE COMP.
-
152DF-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
162DF-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
1795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
182DF-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
192DF-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
201RC-24486-00-00 O-RINGO-RING
-
2191312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
222DF-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
232DF-24461-00-00 PIPE, JOINTPIPE, JOINT
-
2490467-150A6-00 CLIPCLIP
-
252DF-24314-00-00 PIPE 4PIPE 4
-
2690467-150A6-00 CLIPCLIP
-
275PX-2411M-00-00 CLIPCLIP
-
282DF-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
295PX-2411M-00-00 CLIPCLIP
-
3090467-160A2-00 CLIPCLIP
-
311D7-24305-00-00 FUEL PIPE JOINT COMP. 2FUEL PIPE JOINT COMP. 2
-
3290464-20010-00 CLAMPCLAMP
-
3390464-20237-00 CLAMPCLAMP
-
342DF-24312-00-00 PIPE 2PIPE 2
-
352DF-24313-00-00 PIPE 3PIPE 3
-
3690467-160A2-00 CLIPCLIP
-
3790464-20016-00 CLAMPCLAMP
-
385JW-14723-00-00 COVER 1COVER 1
-
3990464-19001-00 CLAMPCLAMP
-
405PX-2411M-00-00 CLIPCLIP
-
412DF-24316-00-00 PIPE 6PIPE 6
-
4290467-09103-00 CLIPCLIP
-
4390413-07007-00 WAY 3WAY 3
-
445UX-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
455YU-24314-00-00 PIPE 4PIPE 4
-
4690467-09103-00 CLIPCLIP
-
473UH-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
485RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
4990464-15014-00 CLAMPCLAMP
-
5092012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5192907-05600-00 WASHER, PLATEWASHER, PLATE
-
525UX-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
532DF-24322-00-00 PIPE 11PIPE 11
-
5490467-09103-00 CLIPCLIP
-
5590413-06002-00 WAY 3WAY 3
-
562DF-24170-00-00 CANISTER ASSYCANISTER ASSY
-
5792017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
582DF-24323-00-00 PIPE 12PIPE 12
-
5990467-09103-00 CLIPCLIP
-
602DF-24324-00-00 PIPE 13PIPE 13
-
6190467-09103-00 CLIPCLIP
-
622DF-24325-00-00 PIPE 14PIPE 14
-
6390467-11106-00 CLIPCLIP
-
64BG4-86120-00-00 SOLENOID VALVE ASSYSOLENOID VALVE ASSY
-
6595702-06500-00 NUT, FLANGENUT, FLANGE
