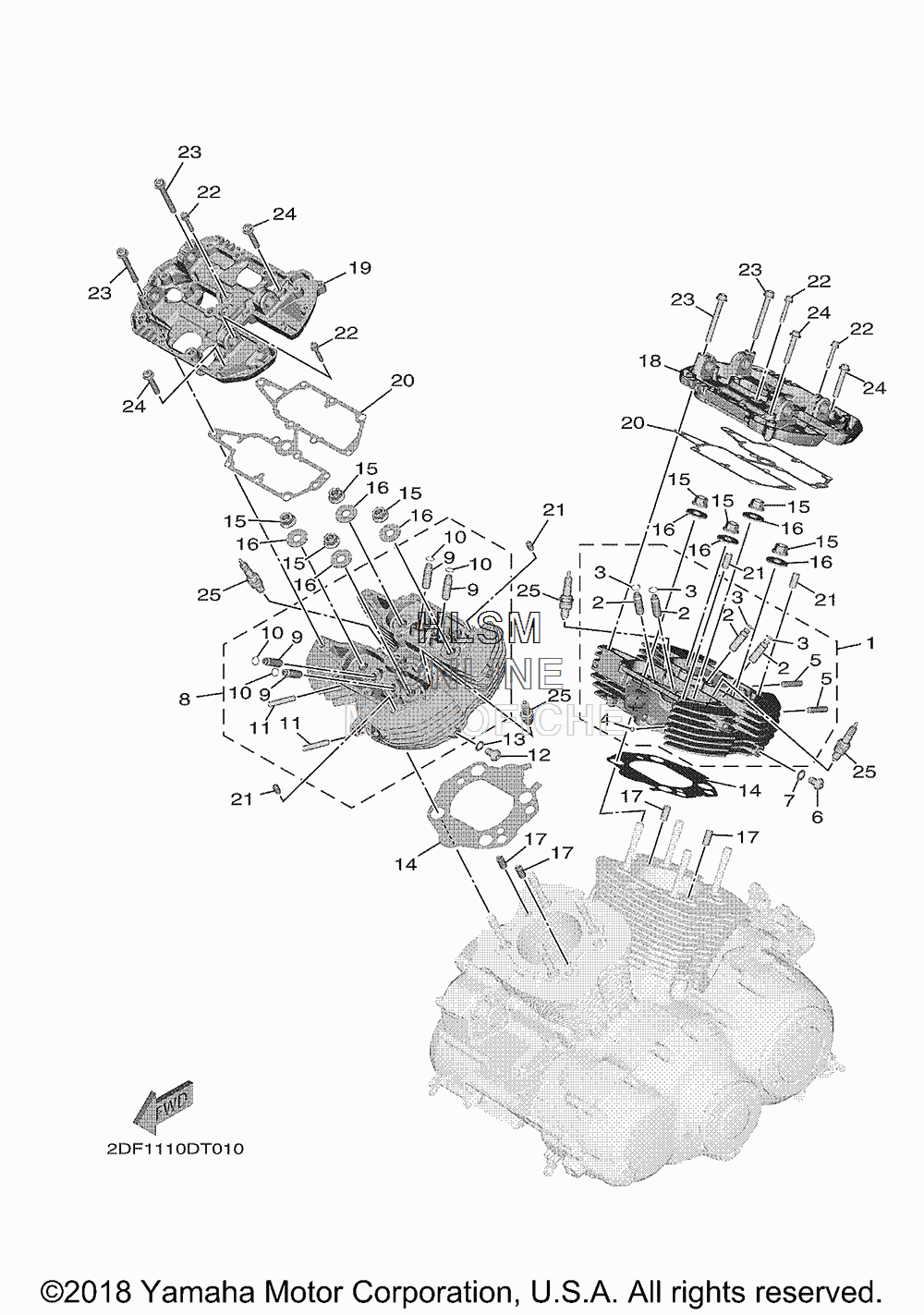

CYLINDER HEAD для Yamaha STAR ELUDER (SILVER) - 2018 года выпуска
-
№АртикулНазвание
-
12DF-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24WM-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
493501-04044-00 ...BALL...BALL
-
595612-08625-00 ...BOLT, STUD...BOLT, STUD
-
690111-10061-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
790430-10188-00 GASKETGASKET
-
82DF-11101-19-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
94WM-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
1093440-12052-00 ...CIRCLIP...CIRCLIP
-
1195612-08625-00 ...BOLT, STUD...BOLT, STUD
-
1290111-10061-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1390430-10188-00 GASKETGASKET
-
142DF-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1590179-12004-00 NUTNUT
-
1690201-12066-00 WASHER, PLATEWASHER, PLATE
-
1790387-062T5-00 COLLARCOLLAR
-
182DF-11131-00-00 HEAD, CYLINDER 3HEAD, CYLINDER 3
-
192DF-11141-00-00 HEAD, CYLINDER 4HEAD, CYLINDER 4
-
202DF-11182-00-00 GASKET, CYLINDER HEAD 2GASKET, CYLINDER HEAD 2
-
2191808-16023-00 PIN, DOWELPIN, DOWEL
-
2290110-06155-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2390110-08116-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490110-08115-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2594701-00262-00 PLUG, SPARK (NGK DPR7EA)PLUG, SPARK (NGK DPR7EA)
