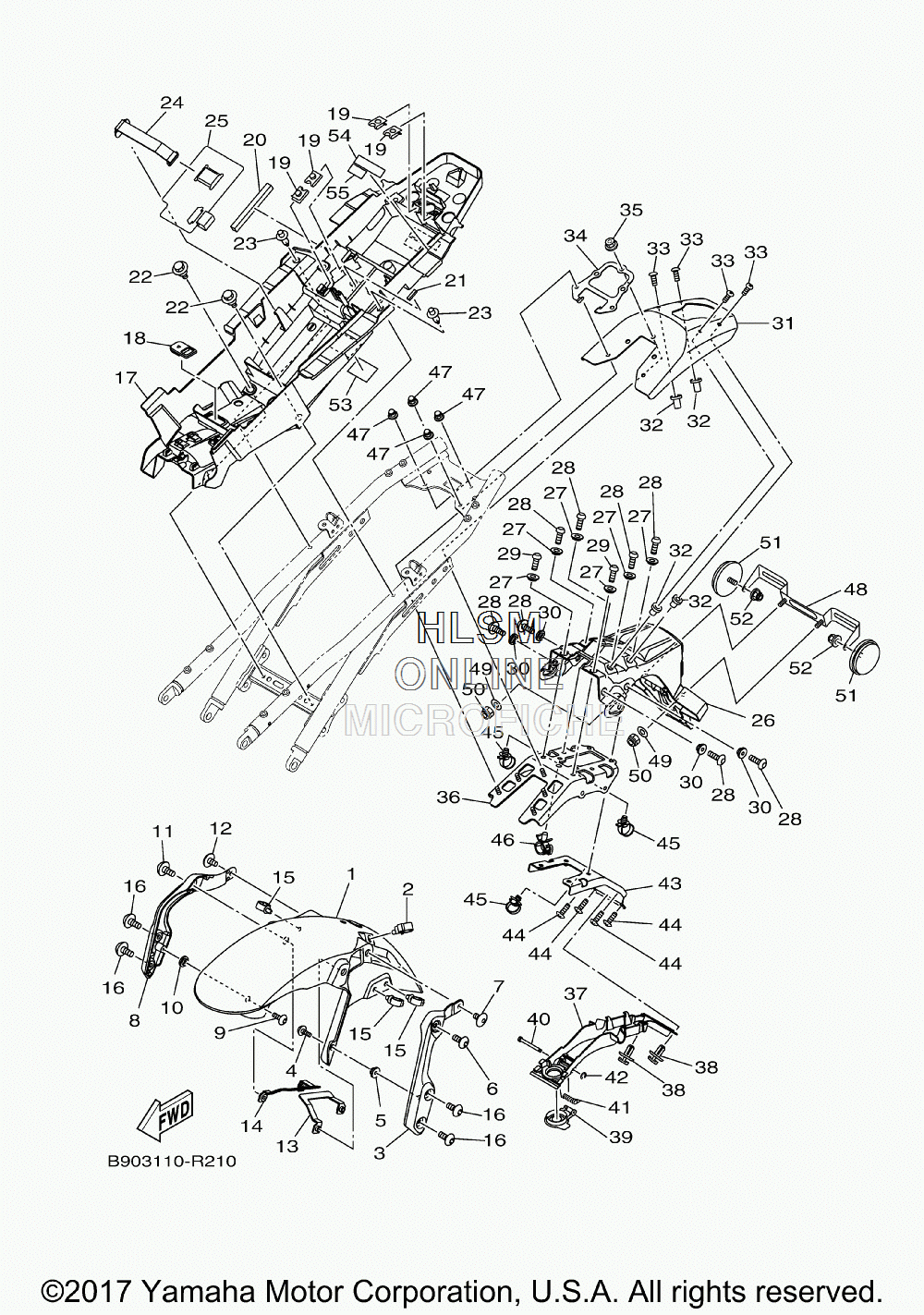

FENDER - FRONT / REAR для Yamaha XSR 900 - 2018 года выпуска
-
№АртикулНазвание
-
1B90-21511-00-P3 FENDER, FRONT (MDNM6 - MAT DARK GRAY FOR VRC1 - VIVID RED)FENDER, FRONT (MDNM6 - MAT DARK GRAY FOR VRC1 - VIVID RED)
-
290464-16012-00 CLAMPCLAMP
-
3B90-23361-00-00 ARM 1ARM 1
-
492017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590387-05021-00 COLLARCOLLAR
-
690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
790110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
8B90-23371-00-00 ARM 2ARM 2
-
992017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090387-05021-00 COLLARCOLLAR
-
1190111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
13B90-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
14B90-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
1590464-18002-00 CLAMPCLAMP
-
1690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
17B90-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
182DR-26199-00-00 PLUG, BLINDPLUG, BLIND
-
1990183-06069-00 NUT, SPRINGNUT, SPRING
-
2032D-84553-00-00 DAMPERDAMPER
-
214B5-21717-00-00 DAMPERDAMPER
-
2290109-06202-00 BOLTBOLT
-
2390269-07007-00 RIVETRIVET
-
241RC-82137-00-00 BAND, BATTERYBAND, BATTERY
-
25B90-21691-00-00 FLAPFLAP
-
26B90-21629-00-00 GUARD, MUDGUARD, MUD
-
2790387-06040-00 COLLARCOLLAR
-
2892017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2990111-06104-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3090387-06242-00 COLLARCOLLAR
-
31B90-2164G-10-P0 STAY 2 (MBL2 - MAT BLACK FOR VRC1 - VIVID RED)STAY 2 (MBL2 - MAT BLACK FOR VRC1 - VIVID RED)
-
3290179-05523-00 NUTNUT
-
332CR-28333-00-00 BOLTBOLT
-
34B90-21998-00-00 SPACERSPACER
-
3595707-06500-00 NUT, FLANGENUT, FLANGE
-
36B90-2164F-00-00 STAY 1STAY 1
-
37B90-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
3890269-07076-00 RIVETRIVET
-
391RC-2465B-00-00 CAP, ROTORCAP, ROTOR
-
4090249-03002-00 PINPIN
-
4190508-09007-00 SPRING, TORSIONSPRING, TORSION
-
4293430-02001-00 CIRCLIPCIRCLIP
-
43B90-21682-00-00 STAY, PLATESTAY, PLATE
-
4490160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
4590464-30011-00 CLAMPCLAMP
-
4690464-14013-00 CLAMPCLAMP
-
4790176-06016-00 NUT, CAPNUT, CAP
-
481RC-84751-10-00 BRACKET, LICENSEBRACKET, LICENSE
-
4992902-06600-00 WASHER, PLATEWASHER, PLATE
-
5095607-06100-00 NUT, UNUT, U
-
51449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
5295707-05500-00 NUT, FLANGENUT, FLANGE
-
5314B-21668-00-00 LABEL, TIRELABEL, TIRE
-
543JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
553TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
