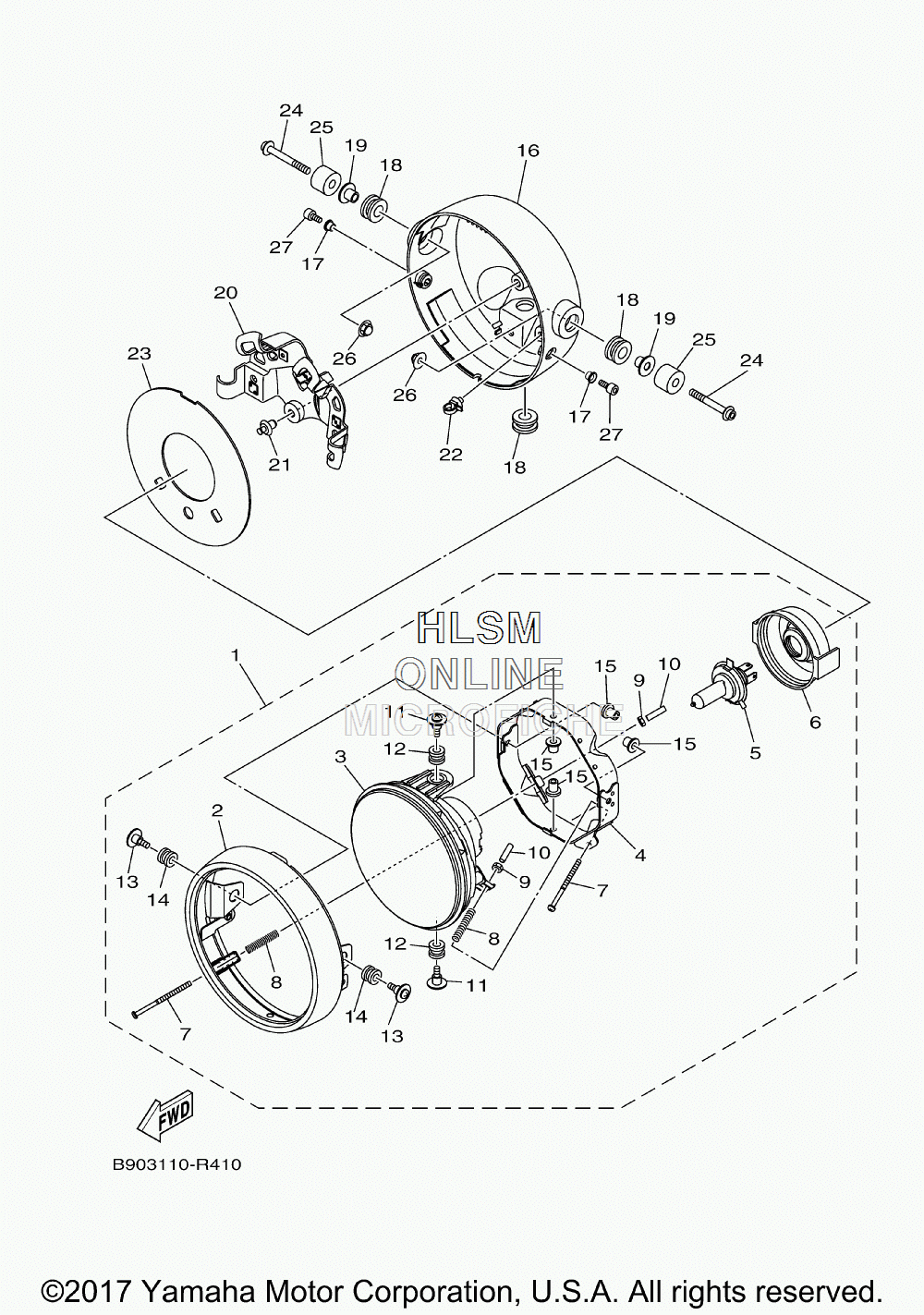

HEADLIGHT для Yamaha XSR 900 - 2018 года выпуска
-
№АртикулНазвание
-
1B34-84310-20-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
2B34-84315-00-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
35PX-84320-00-00 ...LENS ASSY...LENS ASSY
-
45PX-84318-00-00 ...STAY, HEADLIGHT 1...STAY, HEADLIGHT 1
-
58G9-84314-00-00 ......BULB (12V-60/55W)......BULB (12V-60/55W)
-
65PX-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
75PX-84331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
85PX-84332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
95PX-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
105PX-84385-00-00 ...CAP,1...CAP,1
-
115PX-84325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
125PX-84354-00-00 ...GROMMET...GROMMET
-
135PX-84125-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
145PX-84352-00-00 ...GROMMET...GROMMET
-
155PX-84317-00-00 ...NUT...NUT
-
16B90-84311-00-P4 BODY, HEADLIGHT (MDNM6 - MAT DARK GRAY FOR VRC1 - VIVID RED)BODY, HEADLIGHT (MDNM6 - MAT DARK GRAY FOR VRC1 - VIVID RED)
-
174DN-84145-00-00 COLLAR, BODY FITTINGCOLLAR, BODY FITTING
-
1890480-16014-00 GROMMETGROMMET
-
1990387-067K8-00 COLLARCOLLAR
-
20B90-8431U-00-00 HOLDERHOLDER
-
2190269-07077-00 RIVETRIVET
-
2290464-12089-00 CLAMPCLAMP
-
232PN-84396-00-00 COVERCOVER
-
2490110-06402-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590387-06315-00 COLLARCOLLAR
-
2690176-06008-00 NUT, CROWNNUT, CROWN
-
2791317-05014-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
