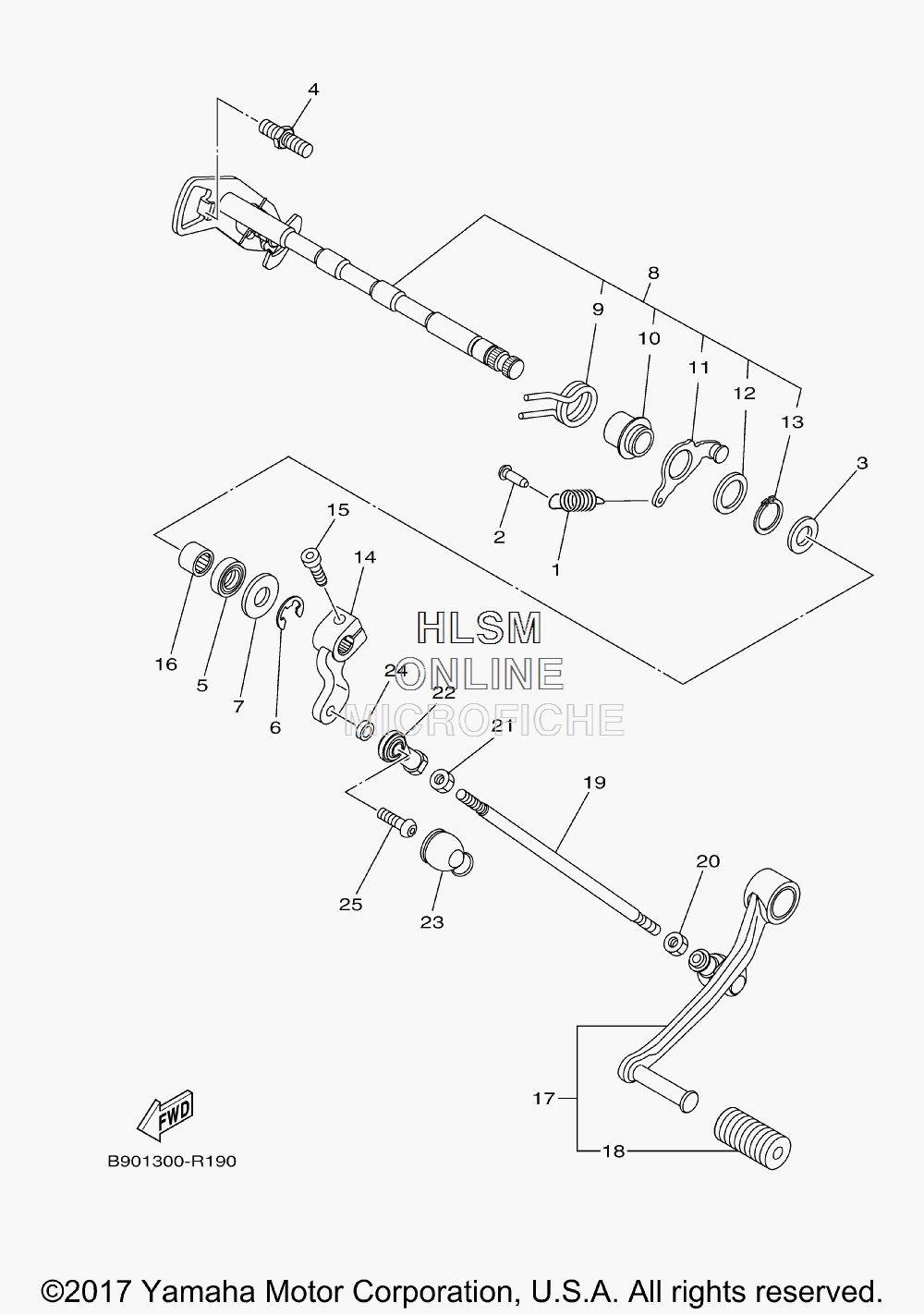

SHIFT SHAFT для Yamaha XSR 900 - 2018 года выпуска
-
№АртикулНазвание
-
190506-18021-00 SPRING, TENSIONSPRING, TENSION
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
390201-127E1-00 WASHER, PLATEWASHER, PLATE
-
41D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
593102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
699002-10600-00 CIRCLIPCIRCLIP
-
790201-12575-00 WASHER, PLATEWASHER, PLATE
-
81RC-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
990508-32141-00 ...SPRING, TORSION...SPRING, TORSION
-
102C0-18175-00-00 ...SPACER...SPACER
-
111RC-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
1290201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
1399009-17400-00 ...CIRCLIP...CIRCLIP
-
141RC-18112-00-00 ARM, SHIFTARM, SHIFT
-
1591312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1693317-11295-00 BEARINGBEARING
-
171RC-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
185EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
193VD-18115-00-00 ROD, SHIFTROD, SHIFT
-
2090170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2195304-06700-00 NUTNUT
-
225VX-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
235VX-18154-00-00 COVER, DUSTCOVER, DUST
-
2490387-06322-00 COLLARCOLLAR
-
2590111-06098-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
