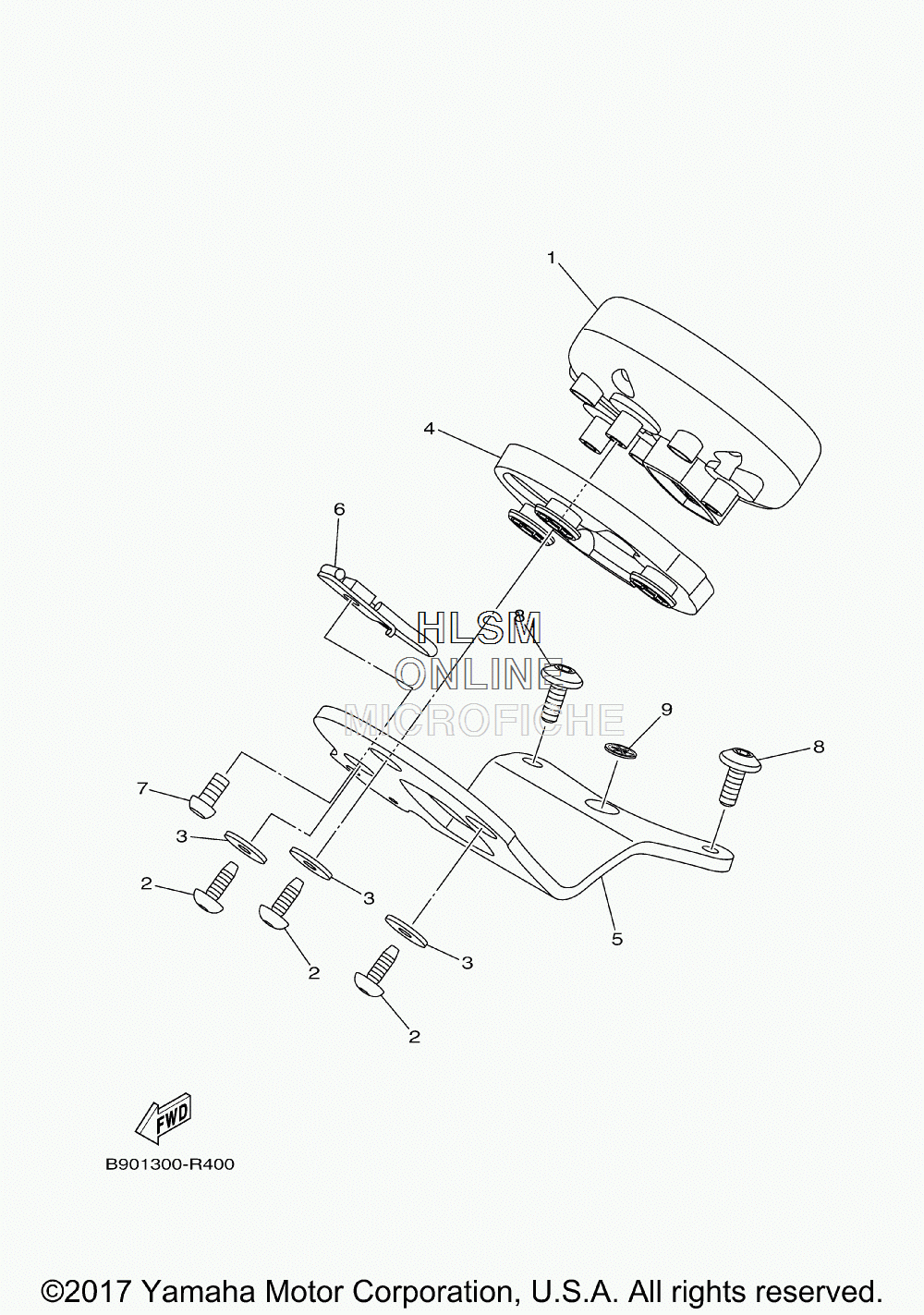

INSTRUMENT PANEL для Yamaha XSR 900 - 2018 года выпуска
-
№АртикулНазвание
-
1B90-83500-60-00 METER ASSYMETER ASSY
-
290160-05017-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
390201-05036-00 WASHER, PLATEWASHER, PLATE
-
4B90-83513-00-00 DAMPERDAMPER
-
5B90-8355X-00-00 BRACKET, METER 1BRACKET, METER 1
-
6B90-83599-00-00 GUIDE, WIREGUIDE, WIRE
-
792017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
914B-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
