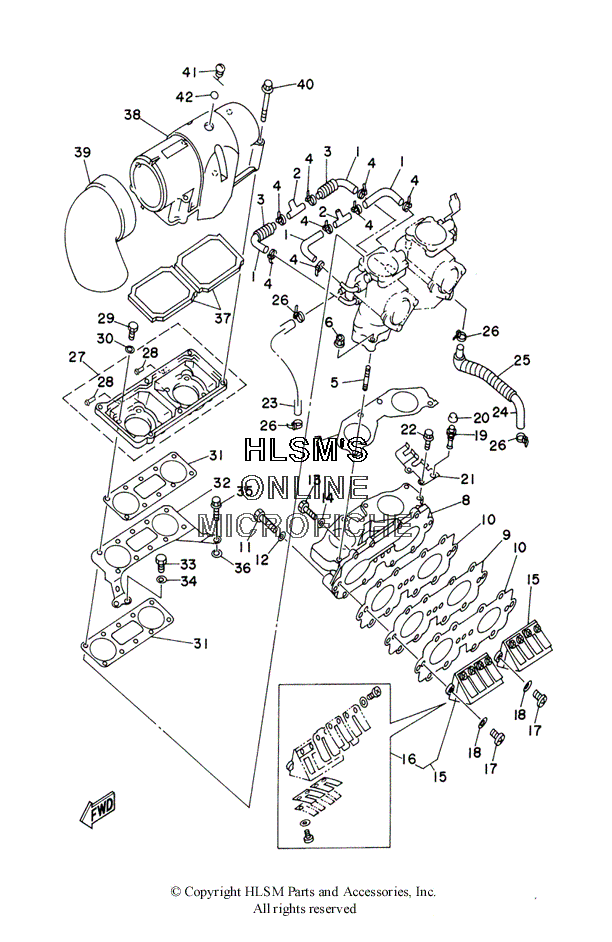

AIR SILENCER W/ INTAKE для Yamaha GP 760 - 2000 года выпуска
-
№АртикулНазвание
-
164X-24313-01-00 PIPE 3PIPE 3
-
2688-24378-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
390446-14M66-00 HOSEHOSE
-
490465-11M10-00 CLAMPCLAMP
-
590116-08M60-00 BOLT, STUDBOLT, STUD
-
690179-08M15-00 NUTNUT
-
764X-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
864X-13555-00-8P MANIFOLD, INTAKEMANIFOLD, INTAKE
-
962T-13624-00-00 PLATE,REED VALVEPLATE,REED VALVE
-
1062T-13566-00-00 GASKETGASKET
-
1197013-06035-00 BOLTBOLT
-
1292903-06600-00 WASHER, PLATEWASHER, PLATE
-
1397013-06025-00 BOLTBOLT
-
1492903-06600-00 WASHER, PLATEWASHER, PLATE
-
1564X-13610-01-00 REED VALVE ASSYREED VALVE ASSY
-
1664X-W0004-01-00 ...REED SET...REED SET
-
1797880-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892990-05600-00 WASHER, PLATEWASHER, PLATE
-
1961L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
20663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
2164X-14527-00-00 PLATEPLATE
-
2297513-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390445-10MF4-00 HOSEHOSE
-
2464X-24314-01-00 PIPE 4PIPE 4
-
2590446-14M67-00 HOSEHOSE
-
2690465-11M10-00 CLAMPCLAMP
-
2764X-14284-01-8P COVER, CARBURETOR 2COVER, CARBURETOR 2
-
286E5-13552-00-00 ...NOZZLE...NOZZLE
-
2997013-06020-00 BOLTBOLT
-
3092903-06600-00 WASHER, PLATEWASHER, PLATE
-
3164X-13674-00-00 GASKET, AIR COOLER COVER 1GASKET, AIR COOLER COVER 1
-
3264X-14255-00-00 PLATEPLATE
-
3397013-06012-00 BOLTBOLT
-
3492903-06600-00 WASHER, PLATEWASHER, PLATE
-
3590109-06M66-00 BOLTBOLT
-
3690201-06M31-00 WASHER, PLATEWASHER, PLATE
-
3762T-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
3864X-14283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
3962T-14419-00-00 PIPEPIPE
-
4090119-05M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4162T-14435-00-00 GROMMETGROMMET
-
4293210-13M63-00 O-RINGO-RING
