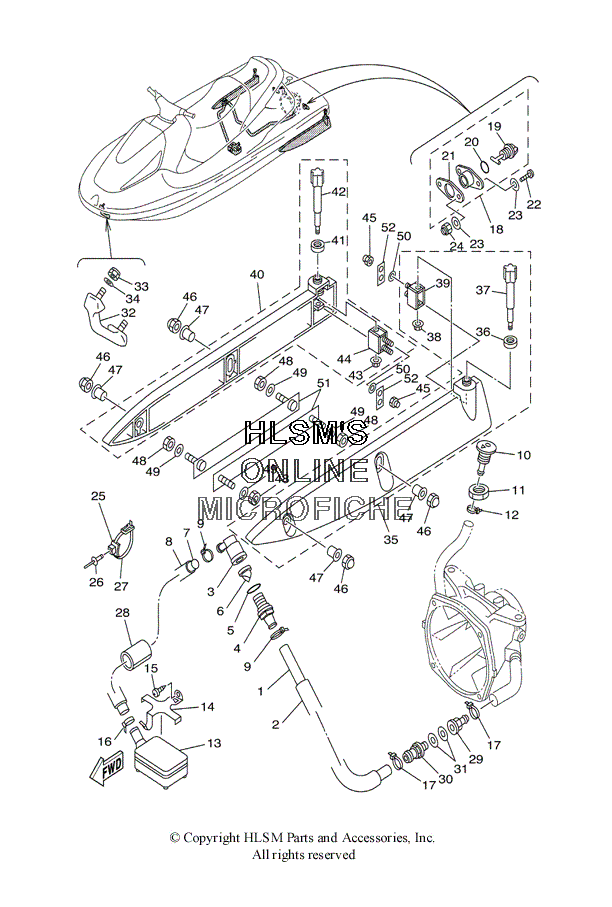

HULL-DECK 1 для Yamaha GP 760 - 2000 года выпуска
-
№АртикулНазвание
-
190445-19M10-00 HOSEHOSE
-
290446-27M73-00 HOSEHOSE
-
363M-51162-00-00 JOINT, HOSEJOINT, HOSE
-
463M-51165-00-00 J0INT HOSE 2J0INT HOSE 2
-
593210-22ME5-00 O-RINGO-RING
-
663M-5316M-00-00 VALVE 1VALVE 1
-
790445-19M09-00 HOSEHOSE
-
890446-27M55-00 HOSEHOSE
-
990465-13M11-00 CLAMPCLAMP
-
10FN8-6269B-00-00 SPOUTSPOUT
-
11EU0-61652-00-00 NUTNUT
-
1290600-91755-00 CLIPCLIP
-
13GD0-U761D-00-00 STRAINER, BILGE (YMUS)STRAINER, BILGE (YMUS)
-
14EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
159778R-50112-00 SCREW, TAPPING (YMUS)SCREW, TAPPING (YMUS)
-
1690601-200U1-00 CLAMP, CABLE (TIEWRAP 6'') (YMUS)CLAMP, CABLE (TIEWRAP 6'') (YMUS)
-
1790601-200U1-00 CLAMP, CABLE (TIEWRAP 6'') (YMUS)CLAMP, CABLE (TIEWRAP 6'') (YMUS)
-
18EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
19EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
20EU0-62283-00-00 ...O-RING...O-RING
-
21EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
2297880-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
239299R-05200-00 WASHER (YMUS)WASHER (YMUS)
-
249572R-05300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
2590600-917U4-00 CLAMP COMP. (YMUS)CLAMP COMP. (YMUS)
-
2690267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
2790464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
28GJ1-U7578-21-00 PACKING, HOSE 2 (YMUS)PACKING, HOSE 2 (YMUS)
-
2990604-80759-00 CONNECTION, THRU-HULL 1/4CONNECTION, THRU-HULL 1/4
-
3090604-80775-00 THROUGH, HULL CONNECTIONTHROUGH, HULL CONNECTION
-
3190430-13909-00 GASKETGASKET
-
32GP7-61624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
339572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
349299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
35GP7-U883N-10-00 STABILIZER LH (YMUS)STABILIZER LH (YMUS)
-
36GP7-U883X-01-00 ...NUT, LOCK 2 (YMUS)...NUT, LOCK 2 (YMUS)
-
37GP7-U8354-05-00 ...KNOB (YMUS)...KNOB (YMUS)
-
3895720-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
39GP7-U8572-02-00 ...BRACKET 2 (YMUS)...BRACKET 2 (YMUS)
-
40GP7-U883P-10-00 STABILIZER RH (YMUS)STABILIZER RH (YMUS)
-
41GP7-U883X-01-00 ...NUT, LOCK 2 (YMUS)...NUT, LOCK 2 (YMUS)
-
42GP7-U8354-05-00 ...KNOB (YMUS)...KNOB (YMUS)
-
4395720-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
44GP7-U8572-02-00 ...BRACKET 2 (YMUS)...BRACKET 2 (YMUS)
-
459572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
4690179-08978-00 NUTNUT
-
4790387-08801-00 COLLAR (YMUS)COLLAR (YMUS)
-
4890170-089U1-00 NUT (YMUS)NUT (YMUS)
-
499299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
509299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
51GP7-U883T-01-00 BRACKET, STABILIZER (YMUS)BRACKET, STABILIZER (YMUS)
-
52GP7-U883U-01-00 PACKING, STABILIZER (YMUS)PACKING, STABILIZER (YMUS)
