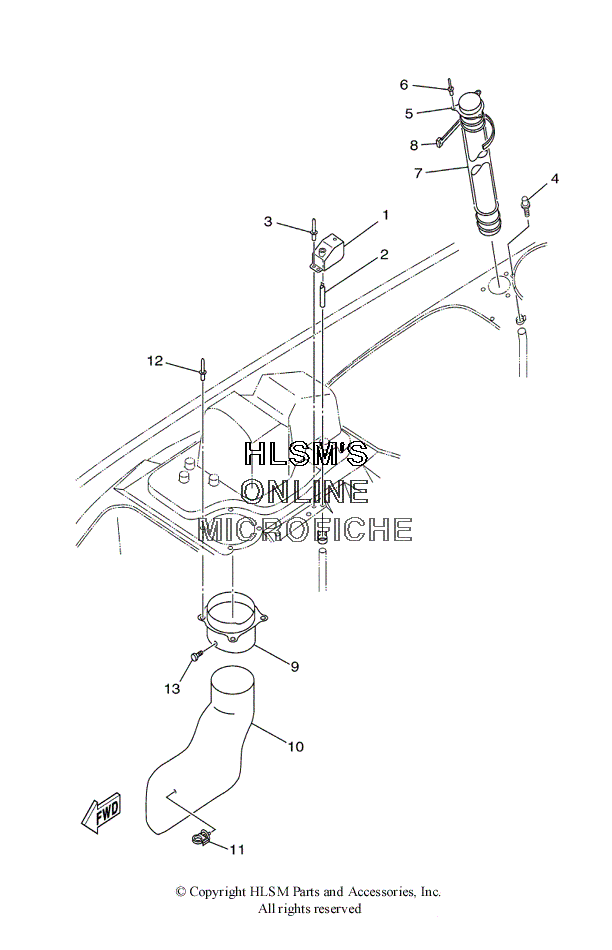

VENTILATION для Yamaha GP 760 - 2000 года выпуска
-
№АртикулНазвание
-
1GP7-62159-01-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
2EW2-62149-00-00 PIPE, VENTILATION 1PIPE, VENTILATION 1
-
390267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
4GJ3-6215F-00-00 NIPPLENIPPLE
-
5GP7-U2139-00-00 VENTILATOR, OUTLET (YMUS)VENTILATOR, OUTLET (YMUS)
-
690267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
7GP7-U213G-01-00 HOSE, VENTILATOR 2 (YMUS)HOSE, VENTILATOR 2 (YMUS)
-
890601-200U5-00 BAND (YMUS)BAND (YMUS)
-
9GP7-U2127-00-00 BASE, AIR INTAKE (YMUS)BASE, AIR INTAKE (YMUS)
-
10GP7-U213F-00-00 HOSE, VENTILATOR 1 (YMUS)HOSE, VENTILATOR 1 (YMUS)
-
1190464-12830-00 CLAMP (YMUS)CLAMP (YMUS)
-
1290267-489UP-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
1390269-07809-00 RIVET (YMUS)RIVET (YMUS)
