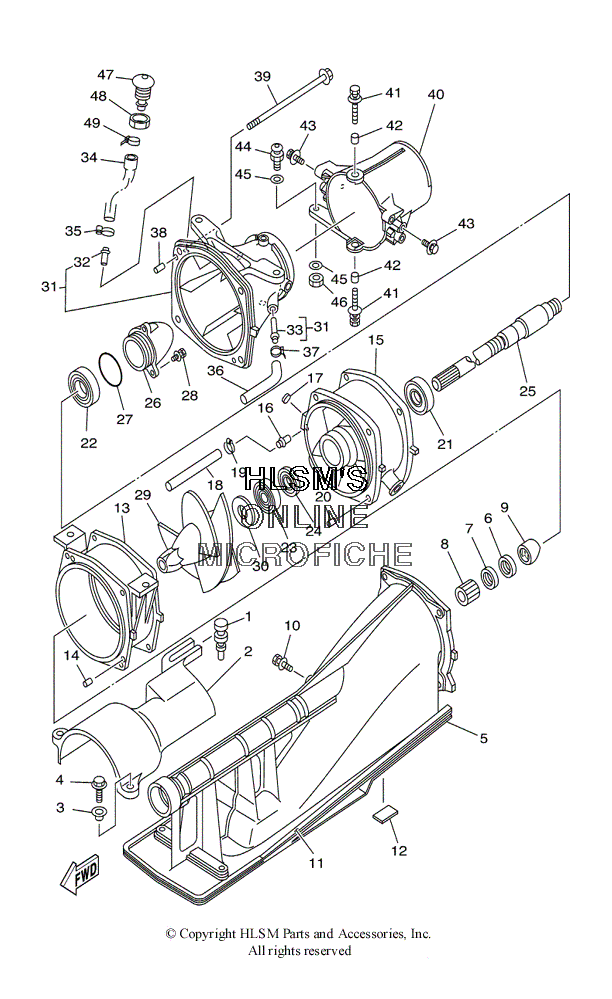

PROPULSION SYSTEM - EXTERNAL для Yamaha XL 700 - 2000 года выпуска
-
№АртикулНазвание
-
190480-06M46-00 GROMMETGROMMET
-
265R-R1381-00-00 COVER (YMUS)COVER (YMUS)
-
390387-06M60-00 COLLARCOLLAR
-
490119-069UD-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
565U-R1311-00-00 DUCT, INTAKE (YMUS)DUCT, INTAKE (YMUS)
-
693102-17M49-00 OIL SEALOIL SEAL
-
793102-17M50-00 OIL SEALOIL SEAL
-
865V-45318-00-00 BUSHING, DRIVE SHAFTBUSHING, DRIVE SHAFT
-
965U-R1348-01-00 SPACER (YMUS)SPACER (YMUS)
-
1090119-069UD-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
116R8-51367-01-00 FELT, PACKINGFELT, PACKING
-
1263M-51368-00-00 FELT, PACKINGFELT, PACKING
-
1363M-51312-02-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
1493606-12019-00 PIN, DOWELPIN, DOWEL
-
1563M-51315-02-94 DUCT, IMPELLERDUCT, IMPELLER
-
1665A-R1129-10-00 NIPPLE (YMUS)NIPPLE (YMUS)
-
1790331-12M05-00 PLUGPLUG
-
1890445-18M03-00 HOSEHOSE
-
1990601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
2093606-12019-00 PIN, DOWELPIN, DOWEL
-
2193305-205U1-00 BEARINGBEARING
-
2293306-205U0-00 BEARINGBEARING
-
2393102-25M34-00 OIL SEALOIL SEAL
-
2493101-25M50-00 OIL SEALOIL SEAL
-
2565R-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
2665A-R1326-00-00 CAP (YMUS)CAP (YMUS)
-
2793210-46M16-00 O-RINGO-RING
-
2890119-069UB-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
2965R-R1321-10-00 IMPELLER (YMUS)IMPELLER (YMUS)
-
3062T-51348-00-00 SPACERSPACER
-
3165R-R1318-00-00 NOZZLE (YMUS)NOZZLE (YMUS)
-
3265A-R1129-00-00 ...NIPPLE (YMUS)...NIPPLE (YMUS)
-
3365A-R1334-01-00 ...NIPPLE, HOSE (YMUS)...NIPPLE, HOSE (YMUS)
-
3462E-51673-00-00 PIPE 1PIPE 1
-
3590601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
3690445-14898-00 HOSE (L270) (YMUS)HOSE (L270) (YMUS)
-
3790465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
3893606-12019-00 PIN, DOWELPIN, DOWEL
-
3990105-089U1-00 BOLT, WASHER BASED (YMUS)BOLT, WASHER BASED (YMUS)
-
4065R-R1313-01-00 NOZZLE, DEFLECTOR (YMUS)NOZZLE, DEFLECTOR (YMUS)
-
4190119-089UE-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
4290387-08M08-00 COLLARCOLLAR
-
4390119-089UE-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
44GH3-U146E-00-00 STUD, JOINT BALL (YMUS)STUD, JOINT BALL (YMUS)
-
4590201-068M4-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
4695380-06700-00 NUTNUT
-
47FN8-6269B-00-00 SPOUTSPOUT
-
48EU0-61652-00-00 NUTNUT
-
4990600-91755-00 CLIPCLIP
