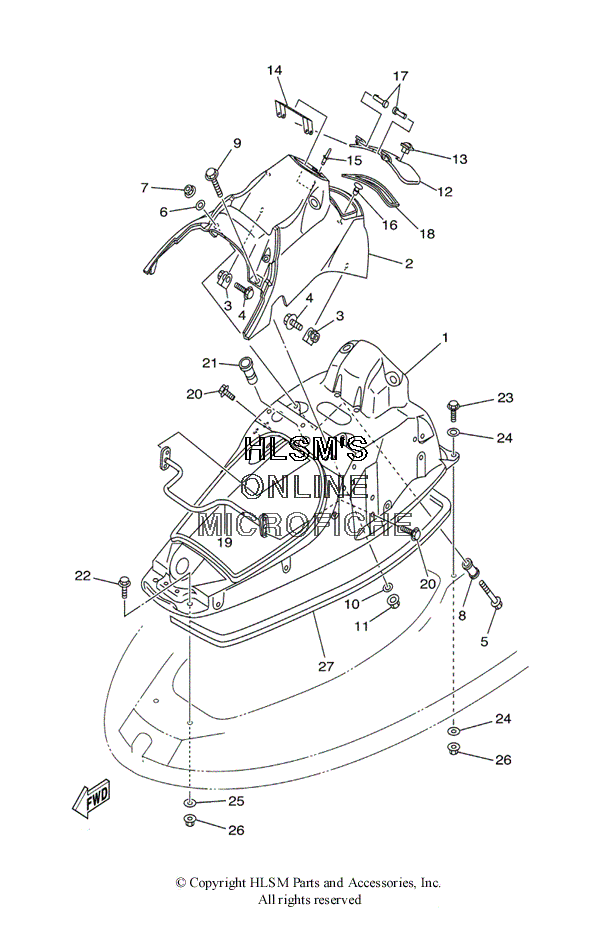

SIDE COVERS для Yamaha XL 700 - 2000 года выпуска
-
№АртикулНазвание
-
1F0M-U516A-00-00 ENGINE HATCH COMP. (YMUS)ENGINE HATCH COMP. (YMUS)
-
2F0M-U516N-00-P1 COVER, ENGINE HATCH (YMUS)COVER, ENGINE HATCH (YMUS)
-
390183-06902-00 NUT, SPRINGNUT, SPRING
-
490119-069UH-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
590119-06808-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
69299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
79572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
890387-06922-00 COLLARCOLLAR
-
990119-06803-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
109299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
119572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
12GU2-U517H-00-P2 LID HATCH (YMUS)LID HATCH (YMUS)
-
13GU2-62875-00-00 LOCKLOCK
-
14GU2-U517G-00-00 HINGE, HATCH (YMUS)HINGE, HATCH (YMUS)
-
1590267-40937-00 RIVET, BLINDRIVET, BLIND
-
1690605-502U2-00 PLUG (YMUS)PLUG (YMUS)
-
17GU2-6517R-00-00 PIN, HINGEPIN, HINGE
-
18GU2-U519D-00-00 PACKING CASE (YMUS)PACKING CASE (YMUS)
-
19GU2-6516L-00-00 BEAM, ENGINE HATCHBEAM, ENGINE HATCH
-
2090119-069UH-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
21GU2-6822E-01-00 GROMMETGROMMET
-
2290119-089U9-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
2390119-089U6-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
2490201-099U1-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
2590201-08929-00 WASHER, PLATEWASHER, PLATE
-
269572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
27GJ3-U2663-01-00 PACKING 1 (YMUS)PACKING 1 (YMUS)
