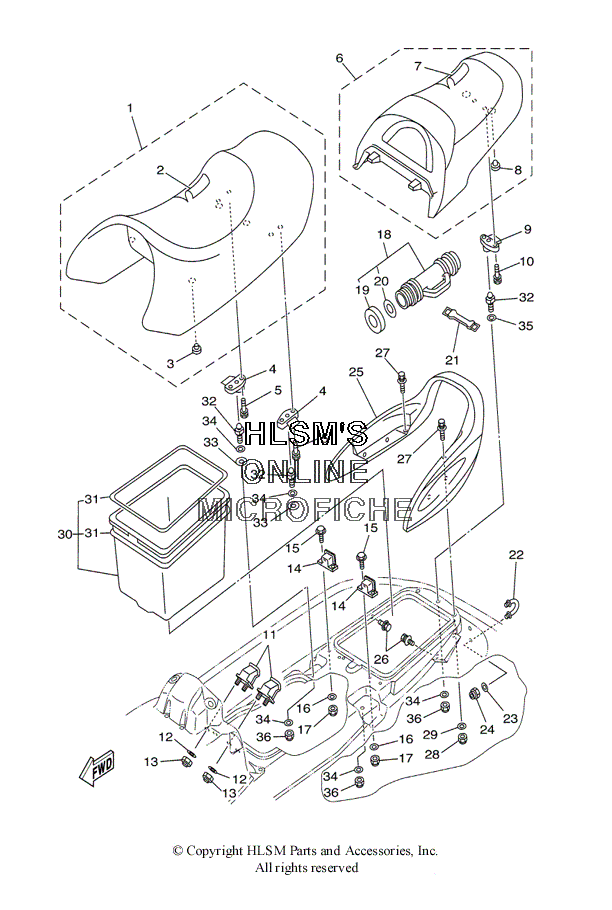

SEAT для Yamaha XL 700 - 2000 года выпуска
-
№АртикулНазвание
-
1GU2-U371A-30-00 DOUBLE SEAT ASSY (YMUS)DOUBLE SEAT ASSY (YMUS)
-
2GU2-U371B-30-00 ...COVER, SEAT 1 (YMUS)...COVER, SEAT 1 (YMUS)
-
3278-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
4GJ3-63850-03-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
590119-069UP-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
6GU2-U372A-30-00 SINGLE SEAT ASSY (YMUS)SINGLE SEAT ASSY (YMUS)
-
7GU2-U372B-30-00 ...COVER, SEAT (YMUS)...COVER, SEAT (YMUS)
-
8278-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
9GJ3-63850-03-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
1090119-069UP-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
11GU2-6378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
129299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
139572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
14GU2-6378D-01-00 STAY, SEAT 2STAY, SEAT 2
-
1590101-069U0-00 BOLT (YMUS)BOLT (YMUS)
-
169299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
179572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
18EW2-U5920-00-00 CASE 2 ASSY. (YMUS)CASE 2 ASSY. (YMUS)
-
19EW2-U5912-01-00 ...CAP, CASE (YMUS)...CAP, CASE (YMUS)
-
20EW2-U5913-01-00 ...PACKING, CASE (YMUS)...PACKING, CASE (YMUS)
-
21EU0-U756E-00-00 BAND, WATER LOCK (YMUS)BAND, WATER LOCK (YMUS)
-
22A00-61624-60-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
239299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
249572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
25GU2-U271B-00-00 GRIP, HAND (YMUS)GRIP, HAND (YMUS)
-
2690119-06819-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
2790119-06820-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
289572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
299299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
30GJ3-U474A-01-00 UNDER LOCKER ASSY (YMUS)UNDER LOCKER ASSY (YMUS)
-
31GJ3-U266C-02-00 ...PACKING 4 (YMUS)...PACKING 4 (YMUS)
-
32GH1-63774-01-00 PINPIN
-
33GJ3-U5578-00-00 TAPE (YMUS)TAPE (YMUS)
-
349299R-10200-00 WASHER (YMUS)WASHER (YMUS)
-
3590201-109U6-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
369572R-10300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
