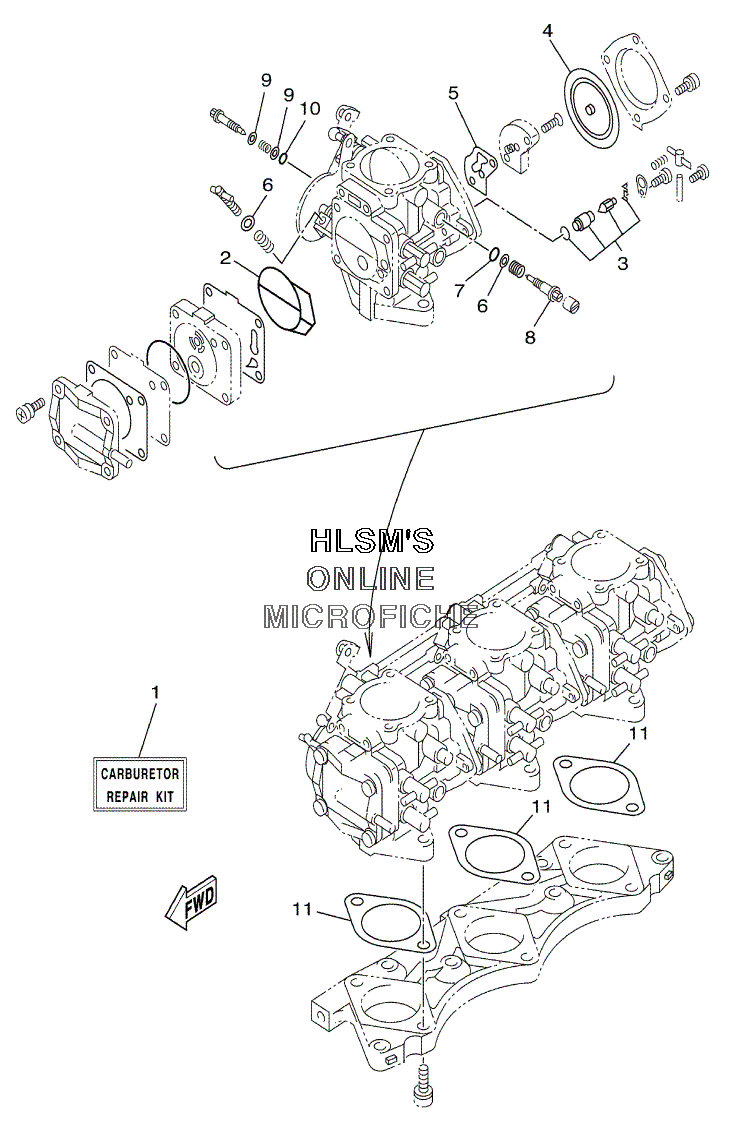

CARBURETOR REPAIR KIT для Yamaha SV 1200A - 2002 года выпуска
-
№АртикулНазвание
-
165U-W0093-00-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
26K8-14564-00-00 ......O-RING......O-RING
-
364T-14916-00-00 ......NEEDLE......NEEDLE
-
46R7-14541-00-00 ......DIAPHRAGM, PUMP......DIAPHRAGM, PUMP
-
56K8-14536-11-00 ......GASKET......GASKET
-
6812-14235-00-00 ......WASHER, NEEDLE......WASHER, NEEDLE
-
7812-14147-00-00 ......O-RING......O-RING
-
86K8-14946-10-00 ......METERING NEEDLE......METERING NEEDLE
-
9822-14235-00-00 ......WASHER, NEEDLE......WASHER, NEEDLE
-
10583-14561-00-00 ......O-RING......O-RING
-
1164X-14398-00-00 ......GASKET......GASKET
