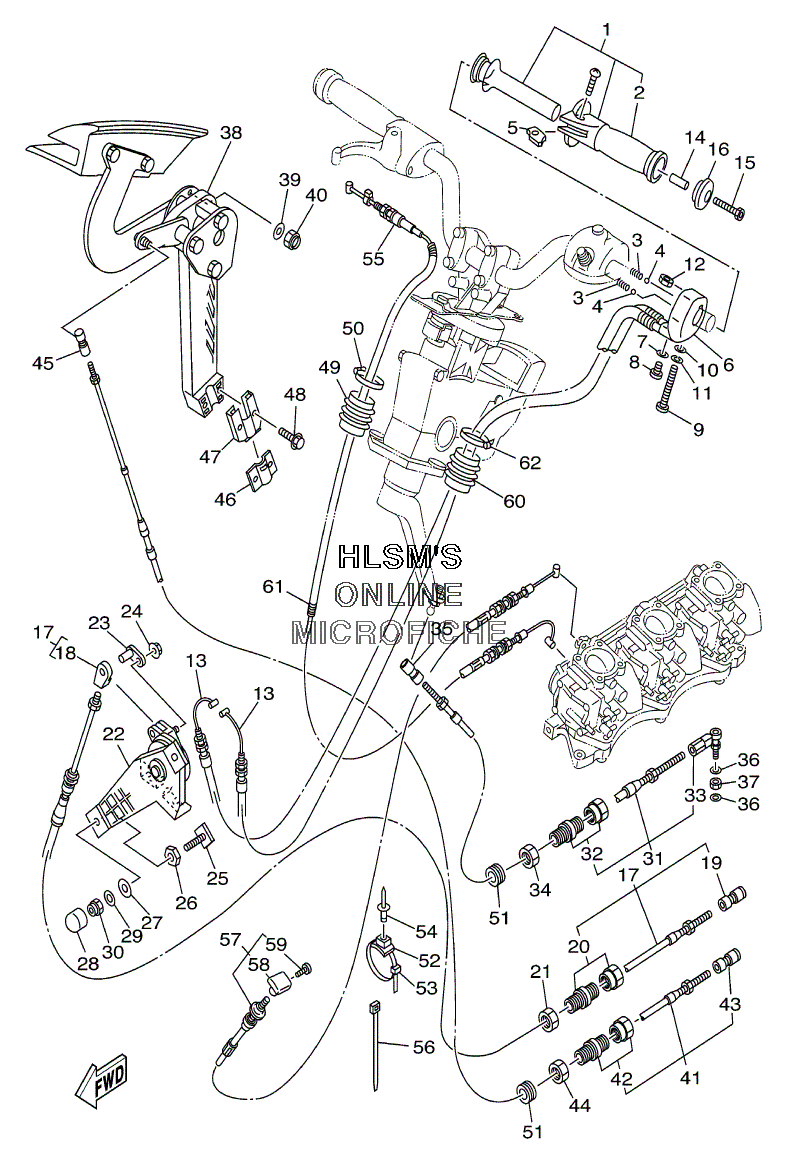

CONTROL CABLES для Yamaha SV 1200A - 2002 года выпуска
-
№АртикулНазвание
-
1GP7-U157A-00-00 GRIP HANDLE ASSYGRIP HANDLE ASSY
-
2GP7-U155C-00-00 ...GRIP,HANDLE...GRIP,HANDLE
-
3GP7-U152P-00-00 SPRINGSPRING
-
4GP7-U152R-00-00 BALLBALL
-
5GP7-U151M-00-00 LEVER ASSYLEVER ASSY
-
6GP7-U152M-00-00 HOUSING ASSYHOUSING ASSY
-
792990-04600-00 WASHER, PLATEWASHER, PLATE
-
898980-04010-00 SCREW, BINDSCREW, BIND
-
997880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092990-06600-00 WASHER, PLATEWASHER, PLATE
-
119299R-06100-00 WASHERWASHER
-
12GH1-U143B-00-00 NUT,SPECIALNUT,SPECIAL
-
13F0D-U153D-01-00 CABLE,NOZZLE CONTROL 2CABLE,NOZZLE CONTROL 2
-
1490387-05800-00 COLLARCOLLAR
-
1590110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
16GP7-U155F-00-00 GRIP, ENDGRIP, END
-
17GU5-U153E-00-00 CABLE, NOZZLE CONTROL 3CABLE, NOZZLE CONTROL 3
-
18GH1-U046C-00-00 ...END,CABLE...END,CABLE
-
19EU0-U1461-30-00 ...SHAFT, JOINT BALL...SHAFT, JOINT BALL
-
20EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
21EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
22F0D-U153J-00-00 REMOCON,NOZZLE 2REMOCON,NOZZLE 2
-
23F0D-U152C-00-00 PINPIN
-
249572R-06300-00 NUT, FLANGENUT, FLANGE
-
2590109-06907-00 BOLTBOLT
-
2690179-06977-00 NUTNUT
-
2790201-06906-00 WASHER, PLATEWASHER, PLATE
-
2890190-06010-00 CLINGCLING
-
299299R-06200-00 WASHERWASHER
-
309572R-06300-00 NUT, FLANGENUT, FLANGE
-
31GU5-U1481-00-00 CABLE, STEERINGCABLE, STEERING
-
32GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
33GP8-U1461-T0-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
34EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
35GK5-U146F-00-00 SHAFT,JOINT BALLSHAFT,JOINT BALL
-
3690201-06906-00 WASHER, PLATEWASHER, PLATE
-
379538R-06700-00 NUTNUT
-
38F0D-6134A-04-00 REMOCONLEVER ASSYREMOCONLEVER ASSY
-
399299R-06200-00 WASHERWASHER
-
409572R-06300-00 NUT, FLANGENUT, FLANGE
-
41GU5-U149C-00-00 CABLE, REVERSECABLE, REVERSE
-
42EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
43EU0-U1461-30-00 ...SHAFT, JOINT BALL...SHAFT, JOINT BALL
-
44EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
45EU0-U1461-30-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
46GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
47GU5-6146K-10-00 HOLDER, STOPPERHOLDER, STOPPER
-
4890119-069UJ-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
49GU5-6822E-00-00 GROMMETGROMMET
-
5090601-200U1-00 BANDBAND
-
5190480-279U1-00 GROMMETGROMMET
-
5290600-917U4-00 CLAMP COMPCLAMP COMP
-
5390464-32801-00 CLAMPCLAMP
-
5490267-48802-00 RIVET, BLINDRIVET, BLIND
-
55GU5-U7252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
5690464-32801-00 CLAMPCLAMP
-
57GU5-67242-01-00 CABLE, CHOKECABLE, CHOKE
-
58EW2-67243-00-00 ...KNOB...KNOB
-
5990149-03930-00 ...SCREW...SCREW
-
60GU5-6822E-00-00 GROMMETGROMMET
-
61F0D-6773E-00-00 TUBE, 2TUBE, 2
-
6290601-200U1-00 BANDBAND
