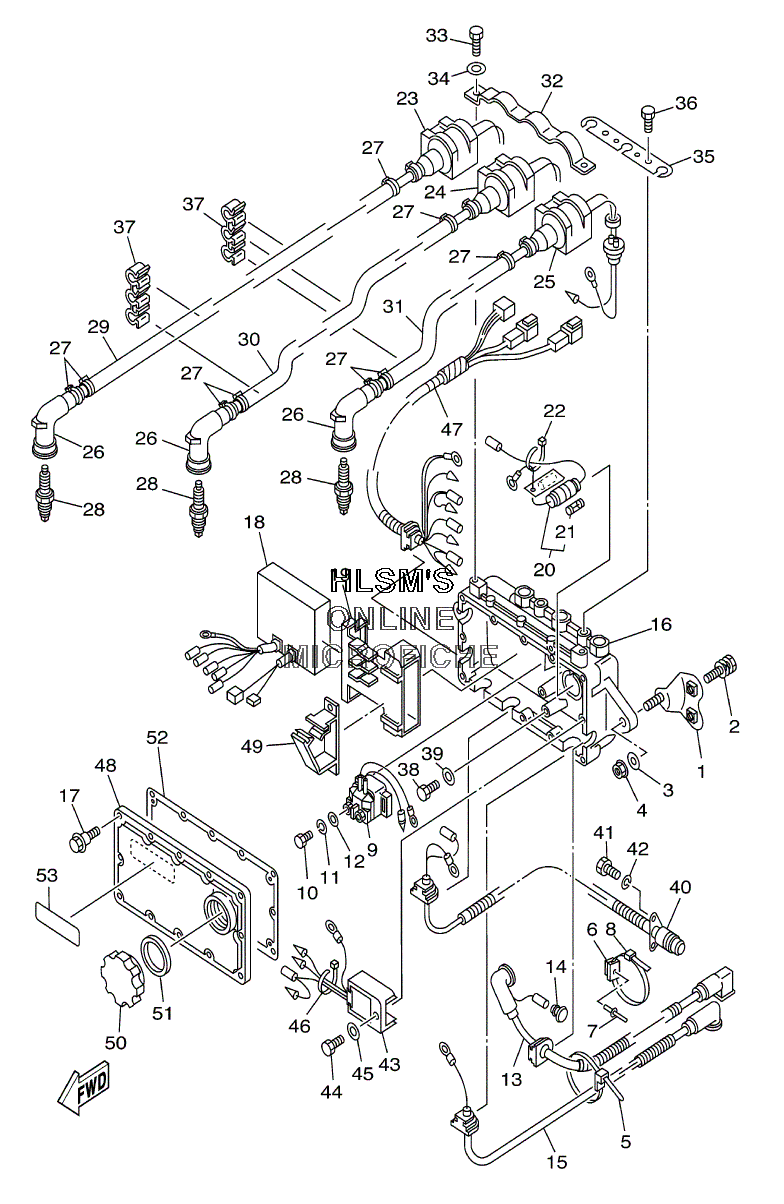

ELECTRICAL 1 для Yamaha SV 1200A - 2002 года выпуска
-
№АртикулНазвание
-
1F0E-6815D-00-00 BRACKET, ELECTRIC BOXBRACKET, ELECTRIC BOX
-
290119-06959-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
39299R-08200-00 WASHERWASHER
-
49572R-08300-00 NUT, FLANGENUT, FLANGE
-
590464-32801-00 CLAMPCLAMP
-
690600-917U4-00 CLAMP COMPCLAMP COMP
-
790267-48802-00 RIVET, BLINDRIVET, BLIND
-
890464-32801-00 CLAMPCLAMP
-
968N-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1097095-06010-00 BOLTBOLT
-
1192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1292995-06600-00 WASHERWASHER
-
1361L-82117-10-00 WIRE, LEADWIRE, LEAD
-
14703-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1562E-82117-20-00 WIRE, LEADWIRE, LEAD
-
1665U-8552A-00-5B HOUSINGHOUSING
-
1790109-05MA0-00 BOLTBOLT
-
1865U-85540-00-00 C.D.IUNIT ASSYC.D.IUNIT ASSY
-
1965U-85546-00-00 BANDBAND
-
2065U-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
216G1-82151-00-00 ...FUSE...FUSE
-
2290465-11M10-00 CLAMPCLAMP
-
2365U-85570-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2466G-85570-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2566G-85570-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2663M-82370-01-00 PLUG CAP ASSYPLUG CAP ASSY
-
2790465-11M10-00 CLAMPCLAMP
-
2894702-00195-00 PLUG, SPARK (NGK BR8HS)PLUG, SPARK (NGK BR8HS)
-
296R7-82352-00-00 TUBE, CORD 2TUBE, CORD 2
-
306R7-82351-00-00 TUBE, CORDTUBE, CORD
-
3166G-82351-00-00 TUBE, CORDTUBE, CORD
-
3265U-85542-00-00 BRACKETBRACKET
-
3397095-08016-00 BOLTBOLT
-
3492995-08600-00 WASHERWASHER
-
3565U-85525-00-00 COVERCOVER
-
3697095-06012-00 BOLTBOLT
-
3765U-81317-10-00 CLAMP, CORDCLAMP, CORD
-
3897095-06012-00 BOLTBOLT
-
3992995-06600-00 WASHERWASHER
-
4065U-82560-10-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
4197095-06016-00 BOLTBOLT
-
4292995-06100-00 WASHER, SPRINGWASHER, SPRING
-
436H2-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
4497095-06020-00 BOLTBOLT
-
4592995-06600-00 WASHERWASHER
-
4690465-11M10-00 CLAMPCLAMP
-
4766G-82553-00-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
4865U-8552E-00-00 COVER, CASECOVER, CASE
-
4990464-06M29-00 CLAMPCLAMP
-
506M6-8132W-00-00 CAPCAP
-
516M6-81844-00-00 GASKETGASKET
-
5265U-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
536R7-83623-40-00 MARK 3MARK 3
