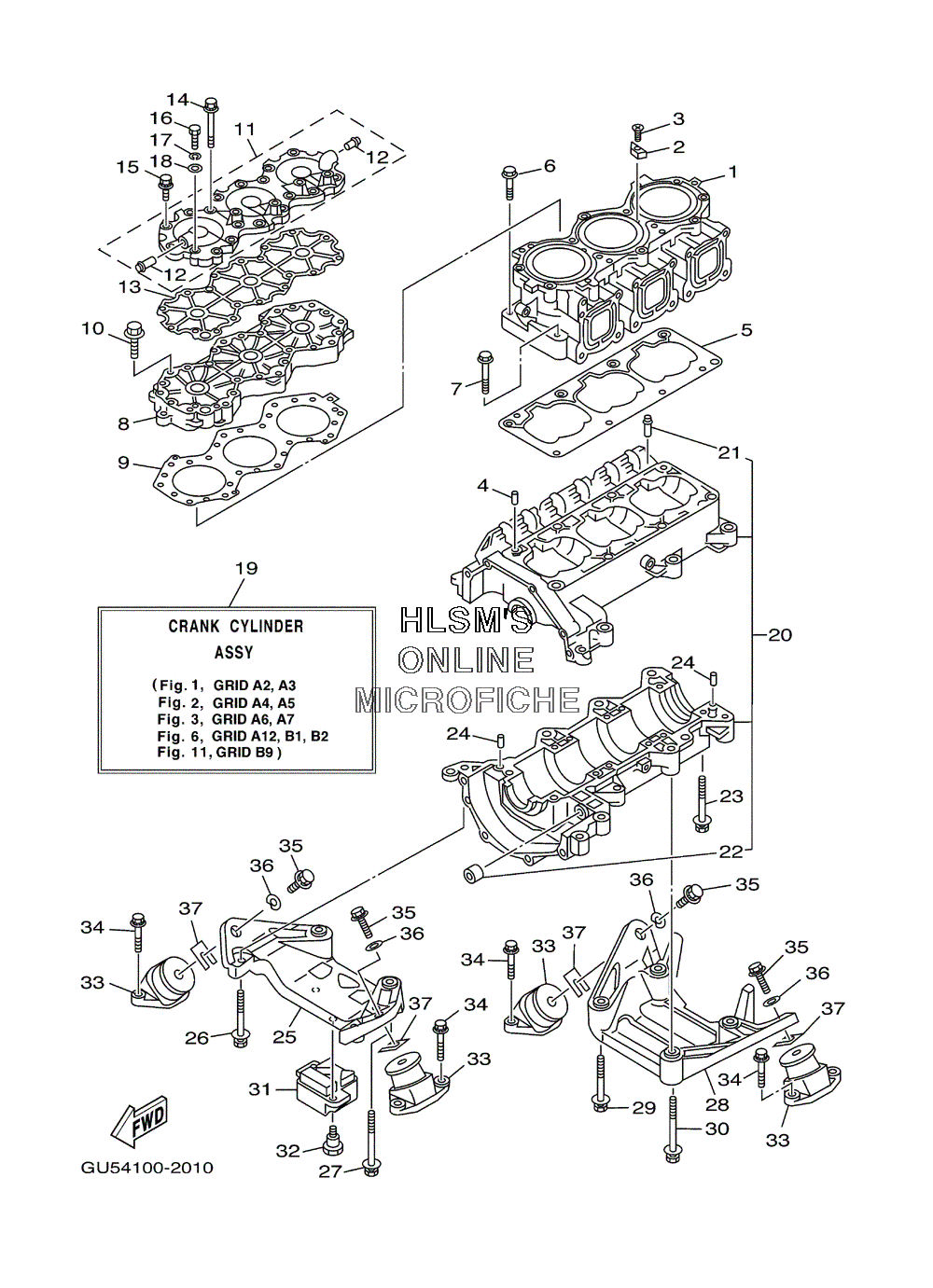

CYLINDER W/ CRANKCASE для Yamaha SUV1200 4-PERSON W/TRAILER - 2003 года выпуска
-
№АртикулНазвание
-
165U-11311-00-94 CYLINDER 1CYLINDER 1
-
26E5-11325-00-00 ANODEANODE
-
398780-04015-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
493606-12019-00 PIN, DOWELPIN, DOWEL
-
563M-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
690119-10M56-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
865U-11111-00-94 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
965U-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1090119-08M96-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1163M-11191-00-94 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
126K8-51129-00-00 ...NIPPLE...NIPPLE
-
1363M-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1490119-08M95-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590119-08M97-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1697013-06030-00 BOLTBOLT
-
1792903-06100-00 WASHER, SPRINGWASHER, SPRING
-
1892903-06600-00 WASHER, PLATEWASHER, PLATE
-
1965U-W0090-03-8P CRANK CYLINDER ASSYCRANK CYLINDER ASSY
-
2065U-15100-00-8P CRANKCASE ASSYCRANKCASE ASSY
-
2162T-14251-10-00 ...NIPPLE...NIPPLE
-
2290380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
2390119-08M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2493606-12019-00 PIN, DOWELPIN, DOWEL
-
2563M-21415-03-94 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
2690119-10M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790119-10M17-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2863M-21425-01-94 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
2990119-10M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-10M03-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3166G-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
3290109-06M98-00 BOLTBOLT
-
3363M-44517-01-5B MOUNT RUBBERMOUNT RUBBER
-
3490119-089U5-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690201-099U3-00 WASHER, PLATEWASHER, PLATE
-
37EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
37EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
37EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
37EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
37EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
