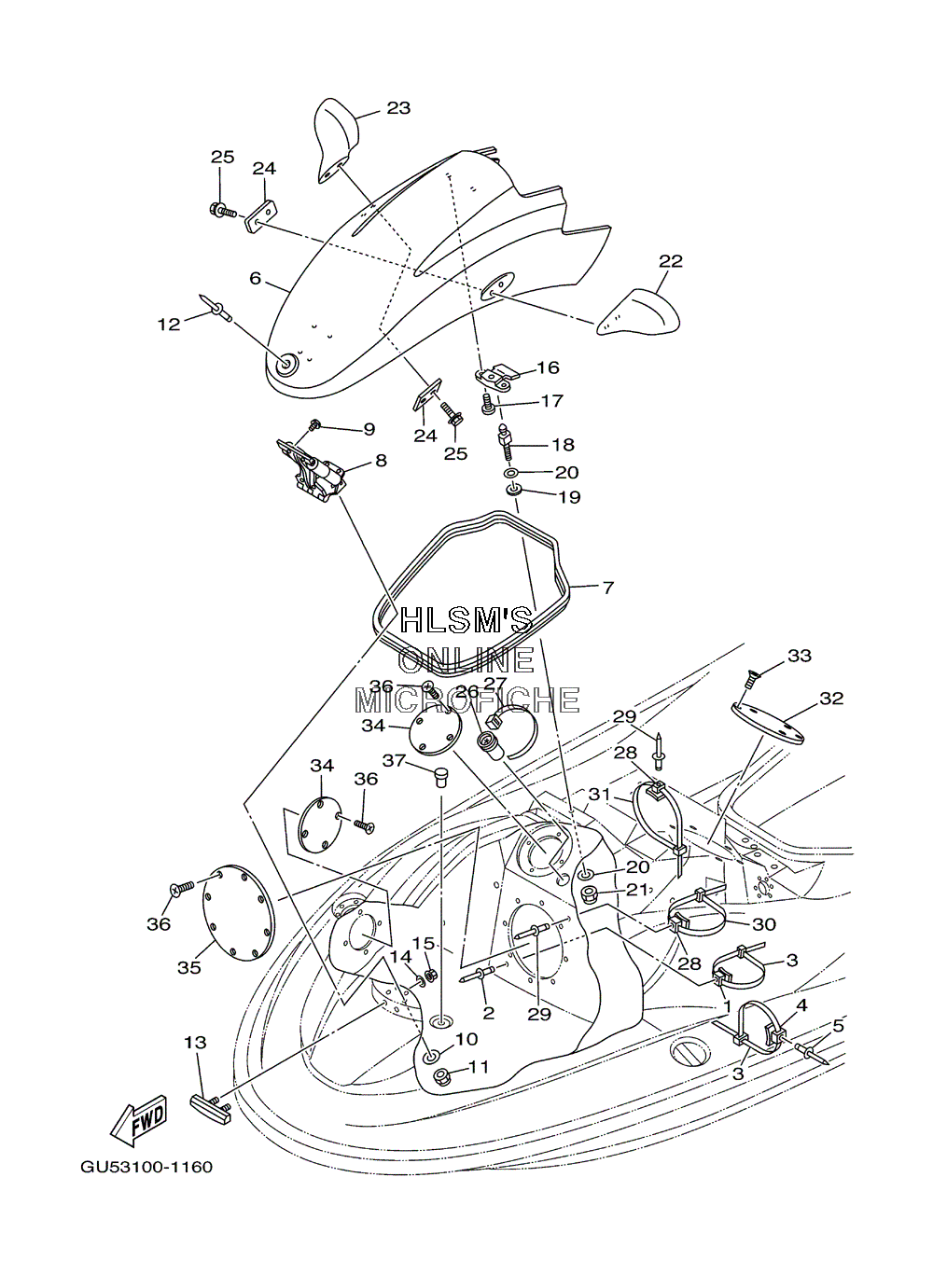

FRONT STORAGE W/ COVER для Yamaha SUV1200 4-PERSON W/TRAILER - 2003 года выпуска
-
№АртикулНазвание
-
190600-917U4-00 CLAMP COMP.CLAMP COMP.
-
290267-48802-00 RIVET, BLINDRIVET, BLIND
-
390464-99800-00 CLAMPCLAMP
-
490600-917U4-00 CLAMP COMP.CLAMP COMP.
-
590267-48802-00 RIVET, BLINDRIVET, BLIND
-
6F0D-U517B-10-P7 LID, ENGINE ROOM (PURLISH BLUE METALLIC (PBMD))LID, ENGINE ROOM (PURLISH BLUE METALLIC (PBMD))
-
7GU5-U2663-00-00 PACKING 1PACKING 1
-
8F0D-6515A-04-00 HINGE ASSY.HINGE ASSY.
-
990119-06966-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090201-06802-00 WASHER, PLATEWASHER, PLATE
-
119572R-06300-00 NUT, FLANGENUT, FLANGE
-
1290267-489U8-00 RIVET, BLINDRIVET, BLIND
-
13F0D-6518E-01-00 PRATE, HINGE LIDPRATE, HINGE LID
-
149299R-06200-00 WASHERWASHER
-
159572R-06300-00 NUT, FLANGENUT, FLANGE
-
16F0D-6517C-04-00 LOCK, LIDLOCK, LID
-
1790149-06906-00 SCREWSCREW
-
18GU5-63774-00-00 PINPIN
-
19F0D-6515E-00-00 DAMPER 2DAMPER 2
-
209299R-08200-00 WASHERWASHER
-
219572R-08300-00 NUT, FLANGENUT, FLANGE
-
22F0D-U596B-00-00 MIRROR LEFT HAND (BLACK (BL))MIRROR LEFT HAND (BLACK (BL))
-
23F0D-U596C-00-00 MIRROR RIGHT HAND (BLACK (BL))MIRROR RIGHT HAND (BLACK (BL))
-
24F0D-U5646-00-00 PLATEPLATE
-
2590119-089UN-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26GU2-6822E-01-00 GROMMETGROMMET
-
2790464-32801-00 CLAMPCLAMP
-
2890600-917U4-00 CLAMP COMP.CLAMP COMP.
-
2990267-48802-00 RIVET, BLINDRIVET, BLIND
-
3090601-200U2-00 BANDBAND
-
3190464-32801-00 CLAMPCLAMP
-
32GP1-U7228-00-00 COVER, INSPECTION 2COVER, INSPECTION 2
-
3397780-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
34GP1-U7227-00-00 COVER, INSPECTION 1COVER, INSPECTION 1
-
35GU5-U7861-00-00 COVER INSPECTIONCOVER INSPECTION
-
3697780-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
3790605-502U1-00 PLUG, BLINDPLUG, BLIND
