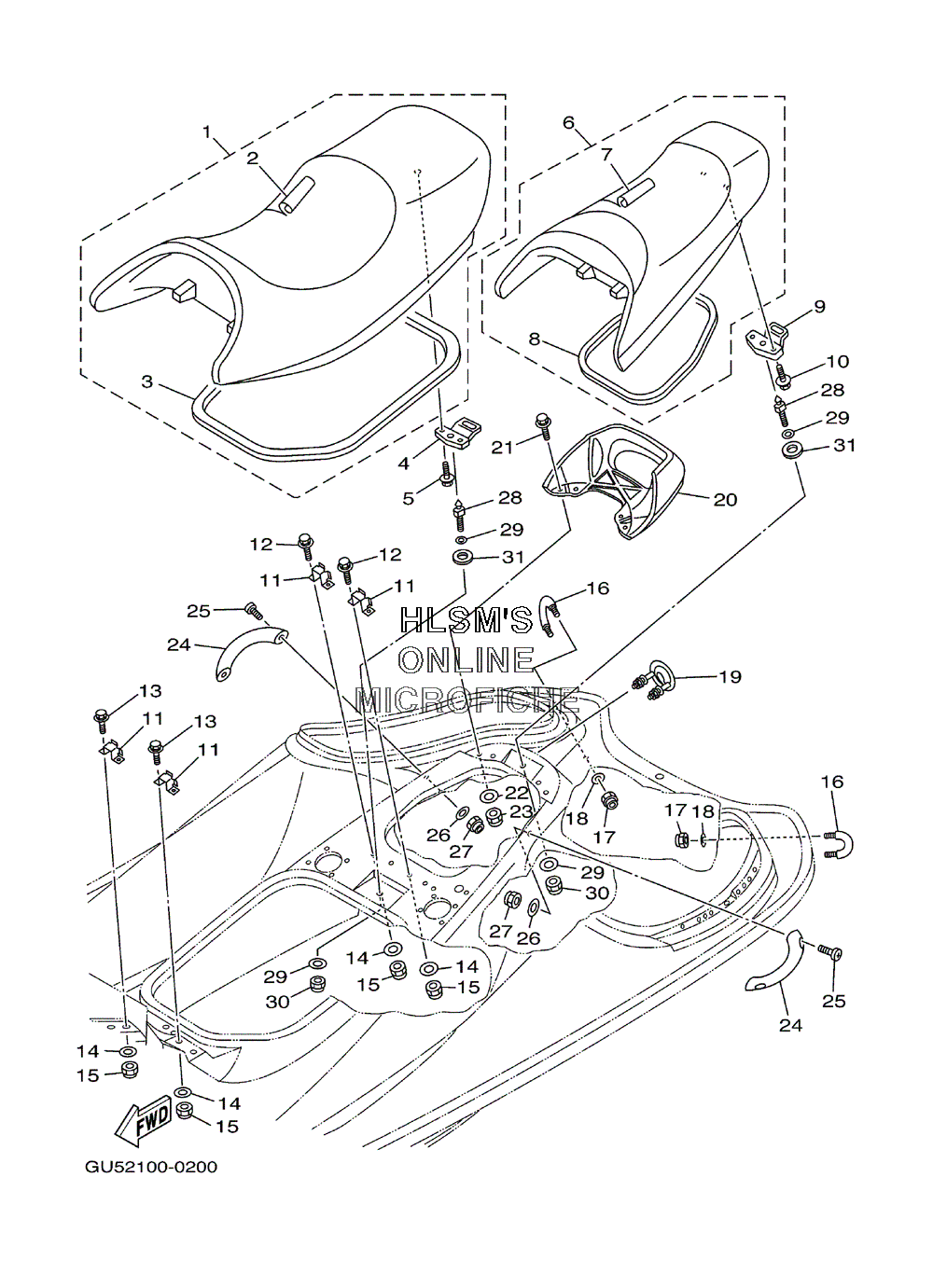

SEAT для Yamaha SUV1200 4-PERSON W/TRAILER - 2003 года выпуска
-
№АртикулНазвание
-
1GU5-U371A-40-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2GU5-U371B-40-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3GU5-U2664-00-00 ...PACKING...PACKING
-
4F0D-63850-01-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
590119-06853-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6GU5-U372A-40-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
7GU5-U372B-40-00 ...COVER, SEAT...COVER, SEAT
-
8GU5-U266B-00-00 ...PACKING 3...PACKING 3
-
9F0D-63850-01-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1090119-06853-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11GU5-6378D-00-00 STAY, SEAT 2STAY, SEAT 2
-
1290119-06803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-06824-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
149299R-06200-00 WASHERWASHER
-
159572R-06300-00 NUT, FLANGENUT, FLANGE
-
16GU5-61628-00-00 STERN EYESTERN EYE
-
179572R-08300-00 NUT, FLANGENUT, FLANGE
-
1890201-08800-00 WASHER, PLATEWASHER, PLATE
-
19GP1-U1629-00-00 SKI TOWSSKI TOWS
-
20F0D-U271B-00-00 GRIP, HAND (BLACK (BL))GRIP, HAND (BLACK (BL))
-
2190119-06820-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
229299R-06200-00 WASHERWASHER
-
239572R-06300-00 NUT, FLANGENUT, FLANGE
-
24F0R-U271B-00-00 GRIP, HANDGRIP, HAND
-
259898R-06030-00 SCREW, BINDSCREW, BIND
-
2690201-06802-00 WASHER, PLATEWASHER, PLATE
-
279572R-06300-00 NUT, FLANGENUT, FLANGE
-
28GH1-U3774-00-00 PINPIN
-
299299R-10200-00 WASHERWASHER
-
309572R-10300-00 NUT, FLANGENUT, FLANGE
-
31GJ3-U5578-00-00 TAPETAPE
