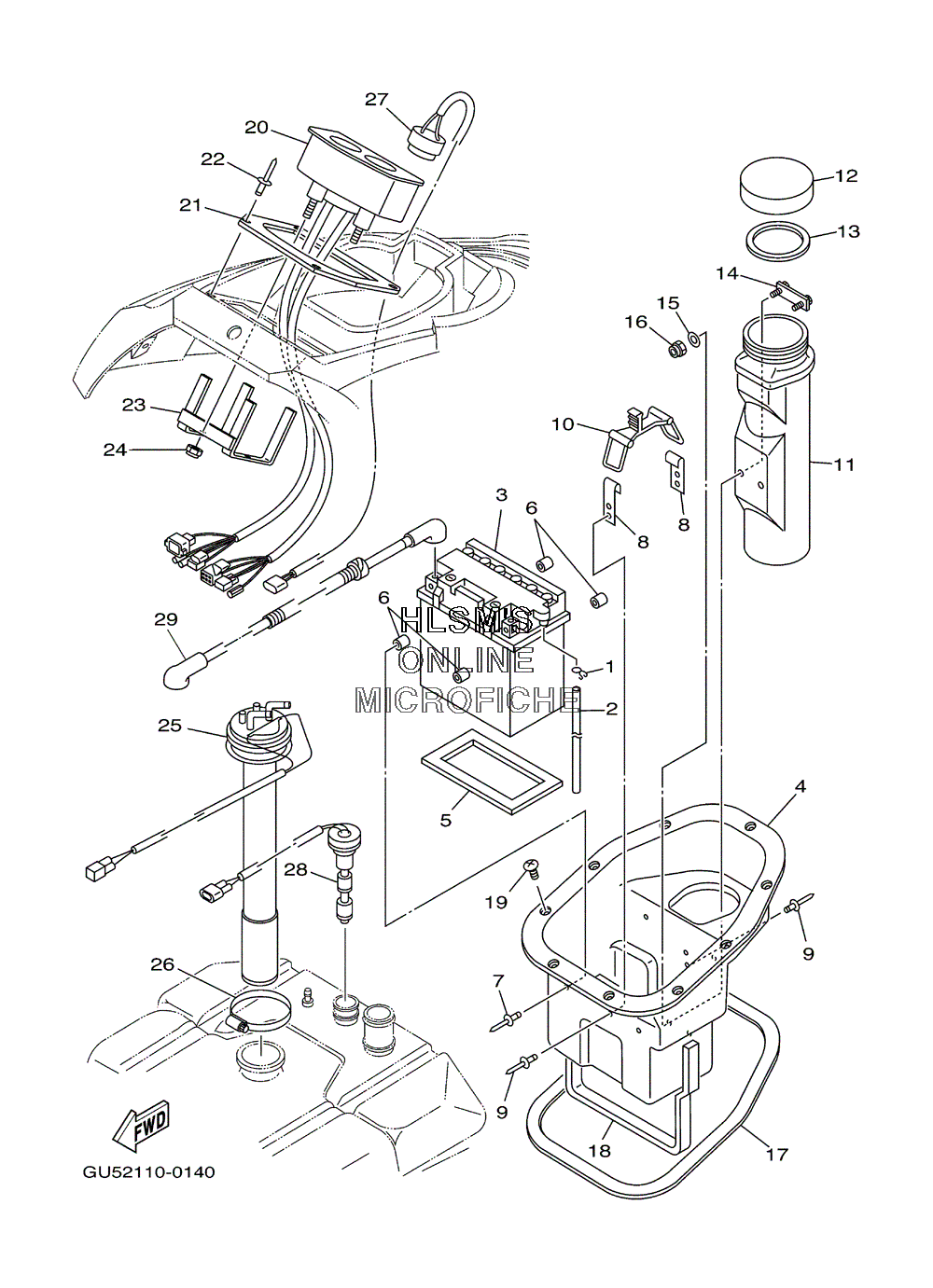

ELECTRICAL 2 для Yamaha SUV1200 4-PERSON W/TRAILER - 2003 года выпуска
-
№АртикулНазвание
-
190467-089U1-00 CLIPCLIP
-
2GU2-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3BTY-YB16C-LB-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
4GK5-68211-00-00 BATTERY CASE COMP.BATTERY CASE COMP.
-
5EU0-U8221-00-00 PAD, BATTERY 1PAD, BATTERY 1
-
6GK5-63768-00-00 CUSHION,RUBBERCUSHION,RUBBER
-
790267-48802-00 RIVET, BLINDRIVET, BLIND
-
8GA7-65772-00-00 HOOK AHOOK A
-
990267-489U9-00 RIVET, BLINDRIVET, BLIND
-
10GA7-68218-00-00 BAND, BATTERYBAND, BATTERY
-
11GK5-65983-00-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
12EW2-65912-00-00 CAP, CASECAP, CASE
-
13EW2-65913-00-00 PACKING, CASEPACKING, CASE
-
14GK5-6593H-00-00 BRKT.FIRE EXTINGUISHERBRKT.FIRE EXTINGUISHER
-
159299R-05200-00 WASHERWASHER
-
169572R-05300-00 NUT, FLANGENUT, FLANGE
-
1790656-67100-00 PACKING, 48PACKING, 48
-
18GK5-6266J-00-00 PACKING 10PACKING 10
-
1997780-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
20F0D-6820A-31-00 METER ASSYMETER ASSY
-
21GU5-68376-00-00 PLATEPLATE
-
2290267-489UE-00 RIVET, BLINDRIVET, BLIND
-
23F0D-68238-10-00 BRACKET, METERBRACKET, METER
-
249572R-05300-00 NUT, FLANGENUT, FLANGE
-
25F0V-U824B-01-00 SENDER, FUELSENDER, FUEL
-
2690601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
27F0D-U8341-00-00 BUZZERBUZZER
-
28F0D-U824C-10-00 SENDER, OILSENDER, OIL
-
2964T-82117-00-00 WIRE, LEADWIRE, LEAD
