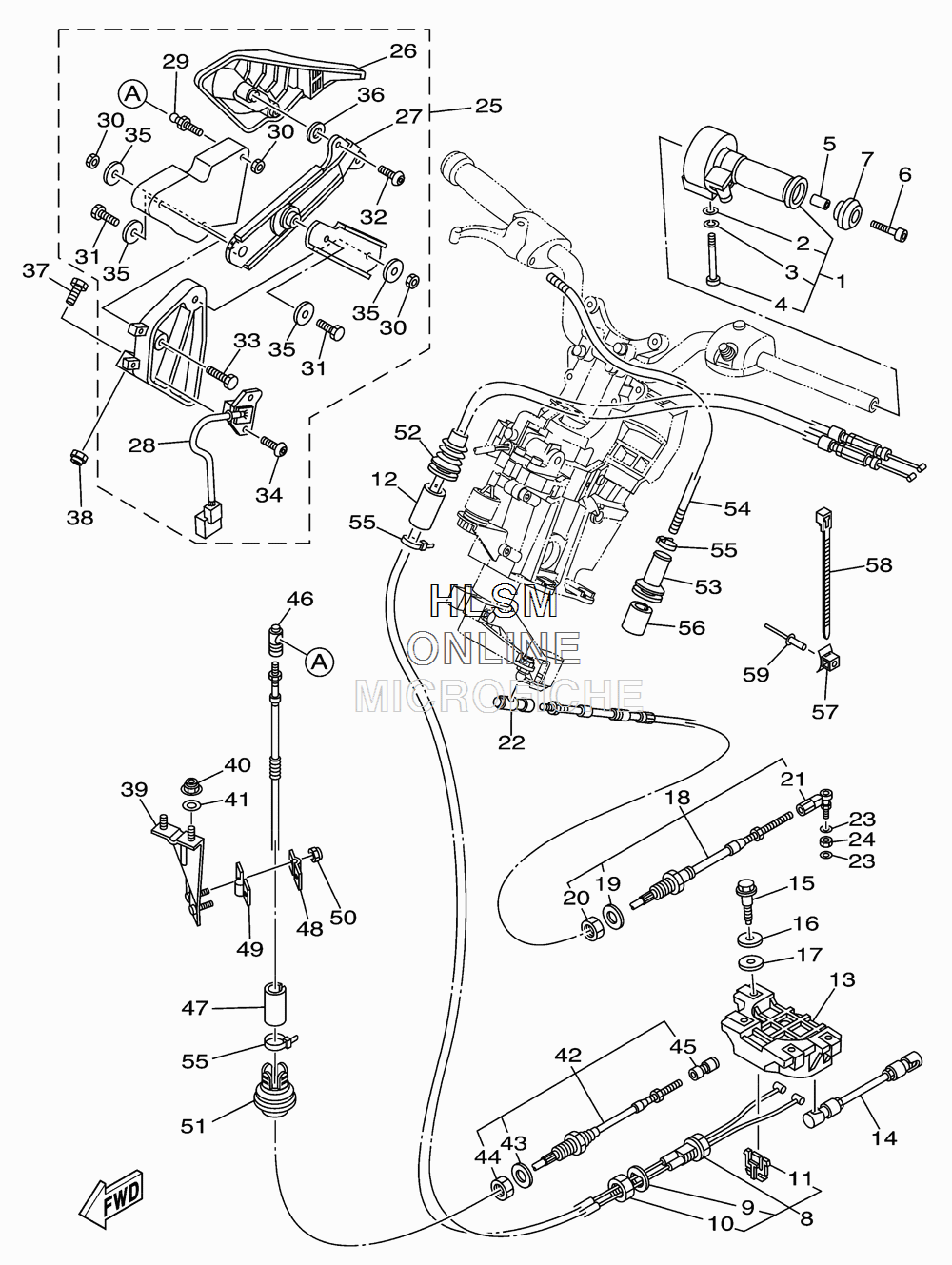

CONTROL CABLES для Yamaha FX CRUISER SHO - 2010 года выпуска
-
№АртикулНазвание
-
1F1W-6153A-00-00 NOZZLE,CONTROL ASSYNOZZLE,CONTROL ASSY
-
292990-06200-00 WASHER, PLAINWASHER, PLAIN
-
392990-06100-00 WASHERWASHER
-
4F1W-613C1-00-00 SCREWSCREW
-
590387-05800-00 COLLARCOLLAR
-
690110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7F1S-U155F-00-00 GRIP, ENDGRIP, END
-
8F1W-6153E-01-00 CABLE,NOZZLE CONTROL 3CABLE,NOZZLE CONTROL 3
-
9F1W-61438-00-00 PACKINGPACKING
-
10F1B-6151S-00-00 NUTNUT
-
11F1W-61557-00-00 GUIDE, CABLEGUIDE, CABLE
-
12GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
13F1W-6153J-00-00 REMOCON,NOZZLE 2REMOCON,NOZZLE 2
-
14F1W-6150A-00-00 ROD ASSYROD ASSY
-
1590109-06233-00 BOLTBOLT
-
1690201-099U3-00 WASHER, PLATEWASHER, PLATE
-
1790202-08002-00 WASHER, PLATEWASHER, PLATE
-
18F1S-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
19F1B-61438-00-00 PACKINGPACKING
-
20F1B-6151S-00-00 NUTNUT
-
21F1B-61461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
-
22GK5-U146F-00-00 SHAFT,JOINT BALLSHAFT,JOINT BALL
-
2390201-06906-00 WASHER, PLATEWASHER, PLATE
-
249538R-06700-00 NUTNUT
-
25F1W-6134A-01-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
26F1W-62714-00-00 GRIPGRIP
-
27F1W-62289-00-00 LEVERLEVER
-
28F1W-6830K-00-00 REVERSE SENSOR ASSYREVERSE SENSOR ASSY
-
29F1X-61461-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
3095720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
31F0D-61516-00-00 BOLTBOLT
-
32F1X-613C1-00-00 SCREWSCREW
-
33F0D-61355-00-00 BOLTBOLT
-
34F1B-613C1-00-00 SCREWSCREW
-
35FJ0-61353-00-00 WASHERWASHER
-
36F1W-6134E-00-00 WASHERWASHER
-
3797080-06030-00 BOLTBOLT
-
3890185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
39F1W-U1467-02-00 BRACKET,STOPPER CABLEBRACKET,STOPPER CABLE
-
409572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
419299R-08200-00 WASHERWASHER
-
42F1W-6149C-01-00 CABLE,REVERSECABLE,REVERSE
-
43F1B-61438-00-00 PACKINGPACKING
-
44F1B-6151S-00-00 NUTNUT
-
45F1B-61460-00-00 BALL JOINT ASSYBALL JOINT ASSY
-
46F1B-61460-00-00 BALL JOINT ASSYBALL JOINT ASSY
-
47F1W-U146G-00-00 PACKING, CABLEPACKING, CABLE
-
48GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
49GU5-6146K-10-00 HOLDER, STOPPERHOLDER, STOPPER
-
509572R-06300-00 NUT, NYLONNUT, NYLON
-
51F1W-U1519-00-00 GROMMETGROMMET
-
52F0D-6822E-00-00 GROMMETGROMMET
-
53GU2-6822E-01-00 GROMMETGROMMET
-
5490447-07001-00 HOSE, WITH SPRING (L400)HOSE, WITH SPRING (L400)
-
5590601-200U1-00 BANDBAND
-
56GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
57F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
5890464-32801-00 CLAMPCLAMP
-
5990267-48802-00 RIVET, BLINDRIVET, BLIND
