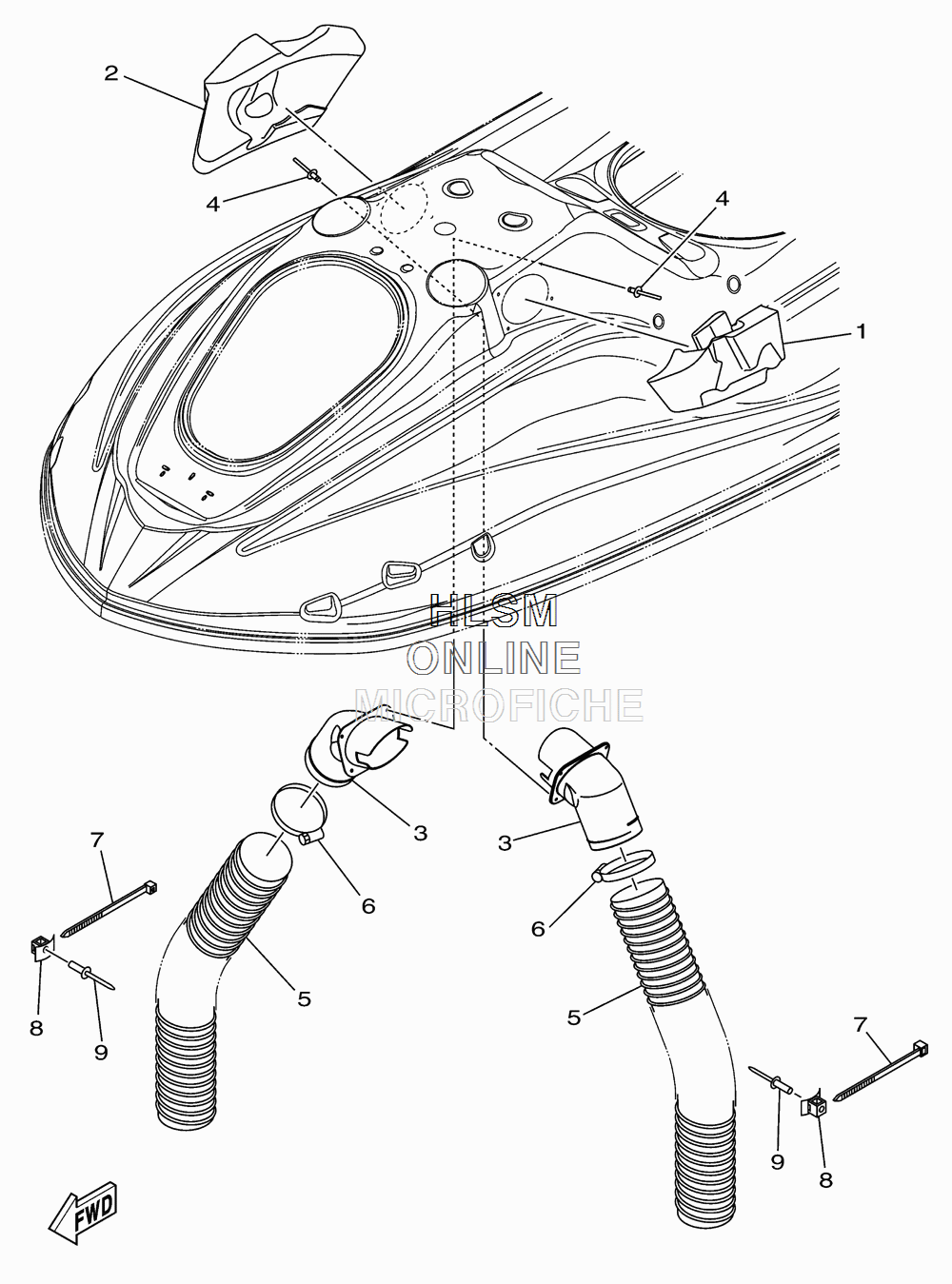

VENTILATION для Yamaha FX CRUISER SHO - 2010 года выпуска
-
№АртикулНазвание
-
1F1W-U2187-00-00 BOX, INDUCTION 1BOX, INDUCTION 1
-
2F1W-U2188-00-00 BOX, INDUCTION 2BOX, INDUCTION 2
-
3F1W-U2127-01-00 BASE, AIR INTAKEBASE, AIR INTAKE
-
490267-48806-00 RIVET, BLINDRIVET, BLIND
-
5F0X-U213G-01-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
690601-200U7-00 BANDBAND
-
790464-99804-00 CLAMPCLAMP
-
8F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
990267-48802-00 RIVET, BLINDRIVET, BLIND
