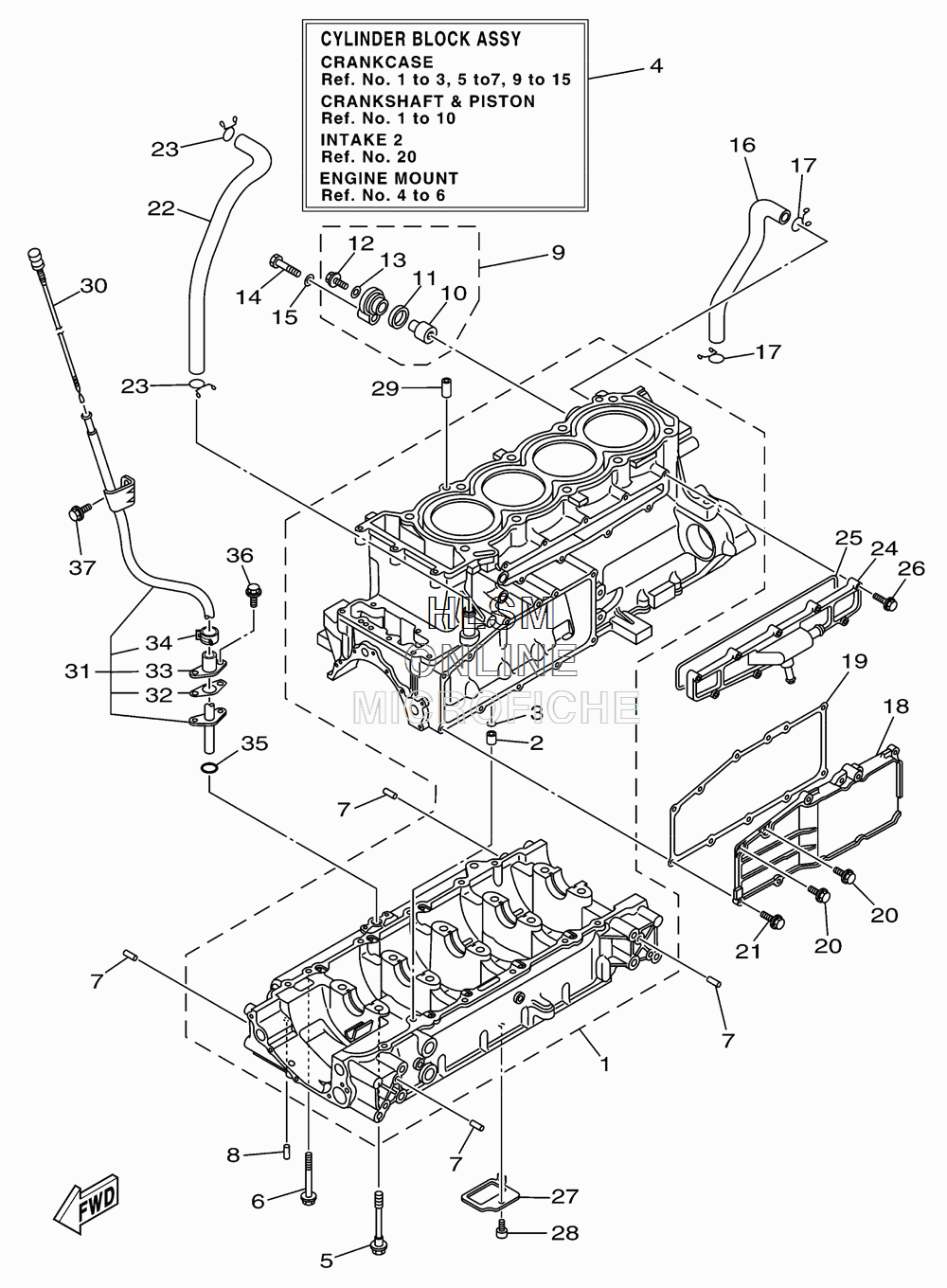

CRANKCASE для Yamaha FX CRUISER SHO - 2010 года выпуска
-
№АртикулНазвание
-
16S5-15100-01-94 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 PIN, DOWELPIN, DOWEL
-
393210-11453-00 O-RINGO-RING
-
46S5-W009B-00-94 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
590105-10071-00 BOLT, FLANGEBOLT, FLANGE
-
695814-06070-00 BOLT, FLANGEBOLT, FLANGE
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
893604-10M03-00 PIN, DOWELPIN, DOWEL
-
969J-11301-10-00 ANODE COVER ASSYANODE COVER ASSY
-
1068V-11325-02-00 ANODEANODE
-
1167F-11328-00-00 GROMMET, ANODEGROMMET, ANODE
-
1290105-06M07-00 BOLT, FLANGEBOLT, FLANGE
-
1390430-06M03-00 GASKETGASKET
-
1497095-08040-00 BOLTBOLT
-
1592995-08600-00 WASHERWASHER
-
166S5-11377-00-00 HOSEHOSE
-
1790467-190A0-00 CLIPCLIP
-
186S5-1131M-00-9S COVERCOVER
-
196S5-13557-00-00 GASKETGASKET
-
2095024-06014-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
2195024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
226S5-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
2390467-190A0-00 CLIPCLIP
-
246S5-12469-01-94 JOINT 1JOINT 1
-
256S5-12517-01-00 GASKET, WATER INLETGASKET, WATER INLET
-
2695023-06025-00 BOLTBOLT
-
276S5-13337-00-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
2890110-06182-00 BOLT (4MY)BOLT (4MY)
-
2999530-10114-00 PIN, DOWELPIN, DOWEL
-
306S5-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
316S5-8572F-10-00 PIPE, OIL LEVELPIPE, OIL LEVEL
-
326BH-1319K-00-00 PLATEPLATE
-
336BH-85516-00-00 SPACERSPACER
-
3490467-150A1-00 CLIPCLIP
-
3593210-12790-00 O-RINGO-RING
-
3690109-06268-00 BOLTBOLT
-
3795023-06012-00 BOLT, FLANGEBOLT, FLANGE
