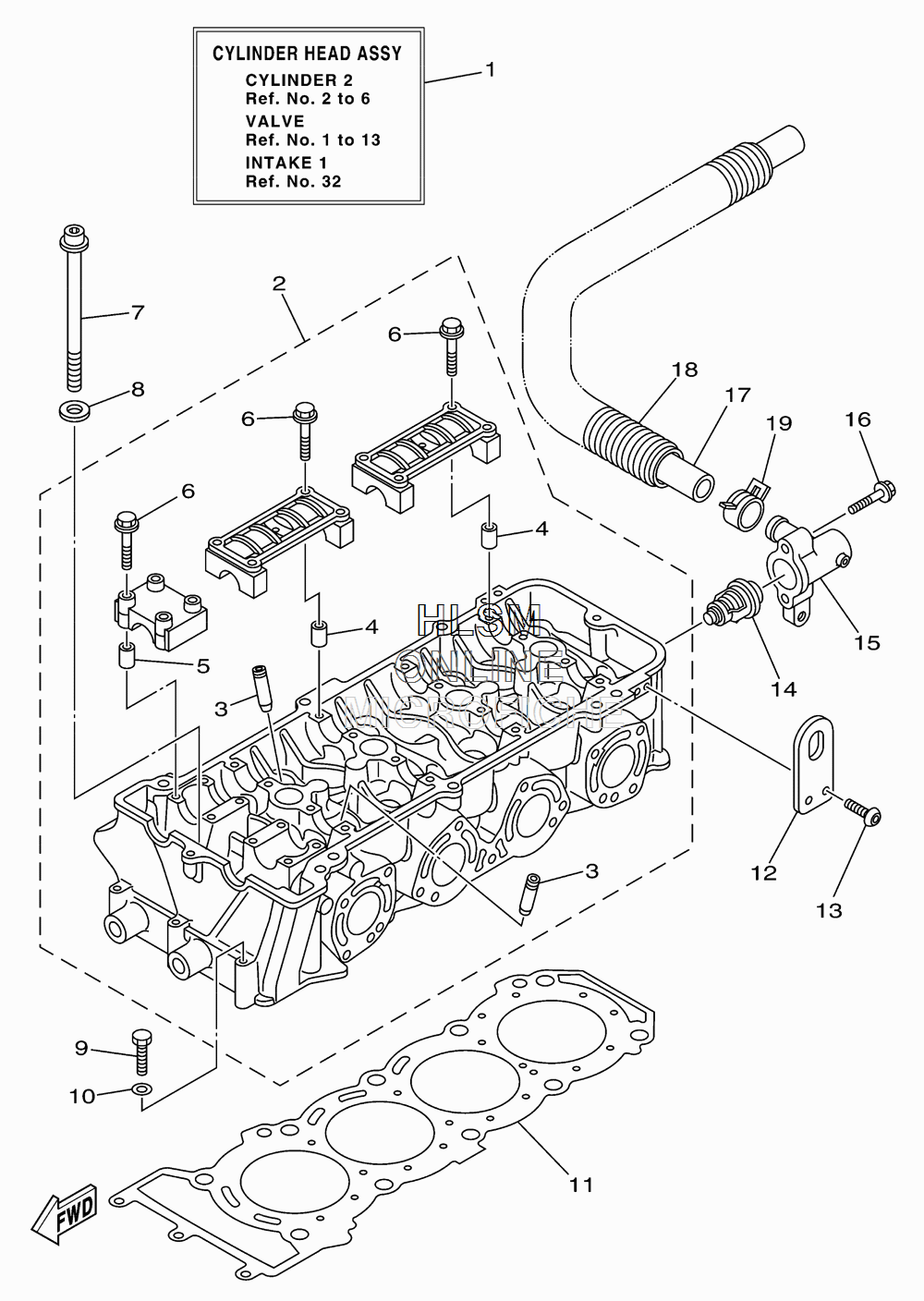

CYLINDER 2 для Yamaha FX CRUISER SHO - 2010 года выпуска
-
№АртикулНазвание
-
16S5-W009A-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
26S5-11102-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
36S5-11133-10-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
491809-16001-00 PIN, DOWELPIN, DOWEL
-
591809-16001-00 PIN, DOWELPIN, DOWEL
-
690105-07009-00 BOLT, FLANGEBOLT, FLANGE
-
76S5-12228-00-00 BOLTBOLT
-
890201-12039-00 WASHER, PLATEWASHER, PLATE
-
997013-06055-00 BOLTBOLT
-
1092903-06600-00 WASHERWASHER
-
116S5-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
126S5-11119-00-00 HANGER, ENGINEHANGER, ENGINE
-
1392014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1460E-12411-01-00 THERMOSTATTHERMOSTAT
-
156S5-12413-00-94 COVER, THERMOSTATCOVER, THERMOSTAT
-
1690105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
176S5-12578-00-00 HOSE 3HOSE 3
-
1890447-28008-00 TUBETUBE
-
1990467-240A0-00 CLIPCLIP
